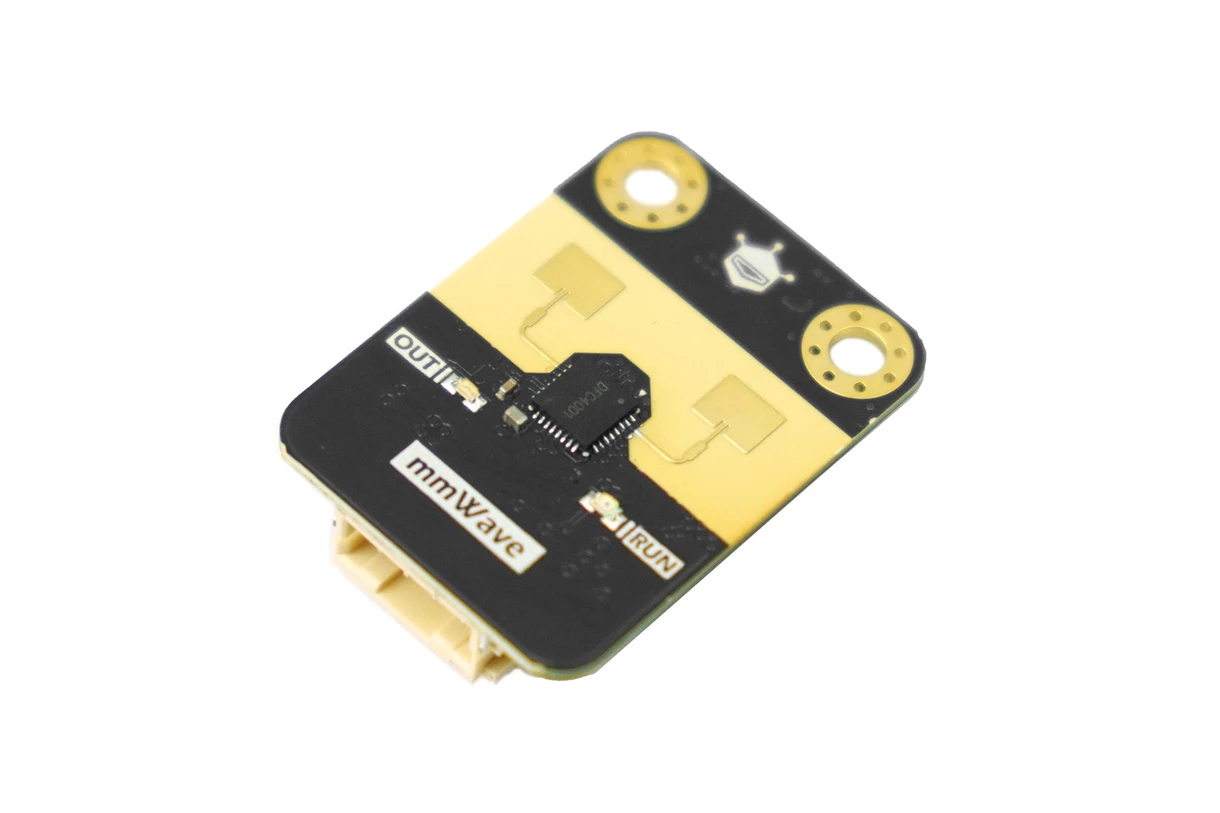

Microwave Human Presence Detection Sensor C4001 24GHz (12 Meters, I2C & UART Gravity: DFRobot) - SEN0610
This is a high-performance 24GHz millimeter-wave presence sensor designed for human detection, motion tracking, and environmental monitoring. It supports I2C and UART communication via the Gravity interface (PH2.0), ensuring broad compatibility with Arduino, Raspberry Pi, ESP32, and ESP8266 boards. It can detect human presence up to 8 meters and movement or distance up to 12 meters, making it ideal for smart sensing applications.
Package Includes:
- 1 x Gravity: mmWave 24GHz Human Presence Detection Sensor (12 Meters, I2C & UART)
- 1 x Gravity-4P I2C/UART Sensor Connector
Features:
- Communication Methods: Supports I2C and UART
- Interface: Gravity interface (PH2.0)
- Human Detection: Detects presence up to 8 meters and motion up to 12 meters
- Distance Detection: Measures distances from 1.2 to 12 meters
- Speed Detection: Detects speeds from 0.1 to 10 m/s
- Strong Anti-Interference: Resistant to snow, haze, temperature, humidity, dust, light, and noise
- Compact Size: Easily integrated into embedded systems
Specifications:
- Operating Voltage: 3.3V / 5V
- Maximum Detection Range: 12 meters
- Beam Angle: 100° horizontal, 80° vertical
- Modulation Mode: FMCW (Frequency Modulated Continuous Wave)
- Operating Frequency: 24GHz
- Operating Temperature: -40°C to 85°C
- Baud Rate: 9600
- I2C Address: 0x2A / 0x2B
- Size: 22mm x 30mm
Pinout:
| Pin | Description |
|---|---|
| + | Power |
| - | Ground |
| C/R | I2C Clock Line / RX |
| D/T | I2C Data Line / TX |
Applications:
- Human Detection: Detects human presence in smart environments
- Distance and Velocity Detection: Measures movement and position of objects
- Environmental Monitoring: Monitors physical surroundings
- Industrial Automation: Enhances automation through reliable motion detection
- Real-time Monitoring and Tracking: Provides continuous observation of subjects
