Stepper Motor 18 Degree Micro (DFRobot) - FIT0708

Stepper Motor 18 Degree Micro (DFRobot) - FIT0708

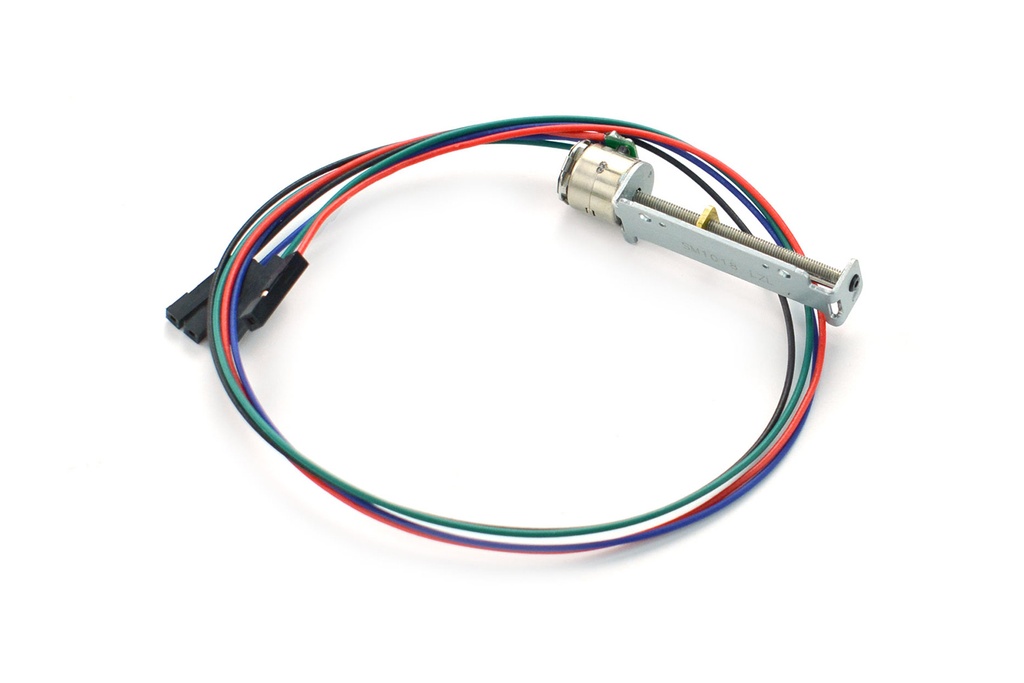

This 10mm micro stepper motor operates with a step angle of 18° per step and uses a 2-phase 4-wire configuration. It does not require a special driver board and can be directly interfaced with controllers like Arduino and ESP32. The motor features a metal slider on its slide rod, making it ideal for precise linear motion in applications such as automatic door locks, camera propellers, and DIY smart home projects.

Package Includes:

  • 1 x 18° Micro Stepper Motor

79.95 AED 79.95 AED Tax Included
79.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • No Special Driver Board Required: Can be directly connected to Arduino, ESP32, and other main controllers.
  • Metal Slider: Suitable for precision applications such as automatic door locks and camera mechanisms.

Specifications:

  • Driving Voltage: DC 3.3–5V
  • Coil Resistance: 20Ω ± 10%
  • Phase: 2-phase
  • Step Angle: 18° per step
  • Excitation: 2-2 phase excitation
  • Driving Method: Bipolar drive
  • Max Auto-start Frequency: 1500 PPS (Pulses Per Second)
  • Insulation Grade: E CLASS
  • Withstand Voltage: 100V AC, 1 second
  • Insulation Resistance: 1.0MΩ (DC 100V)
  • Operating Temperature Range: -10°C to +60°C
  • Maximum Thrust: 80g

Applications:

  • Automatic Door Locks: Enables precise and secure locking mechanisms.
  • Camera Propellers: Allows smooth and controlled movement for camera systems.
  • DIY Smart Home Projects: Ideal for home automation projects requiring accurate linear motion.

Pinout:

Pinout Diagram

Sequence:

Stepping Sequence

Dimension:

Dimension 1
Dimension 2





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
