Stepper Motor 18 Degree Micro (DFRobot) - FIT0708

Stepper Motor 18 Degree Micro (DFRobot) - FIT0708

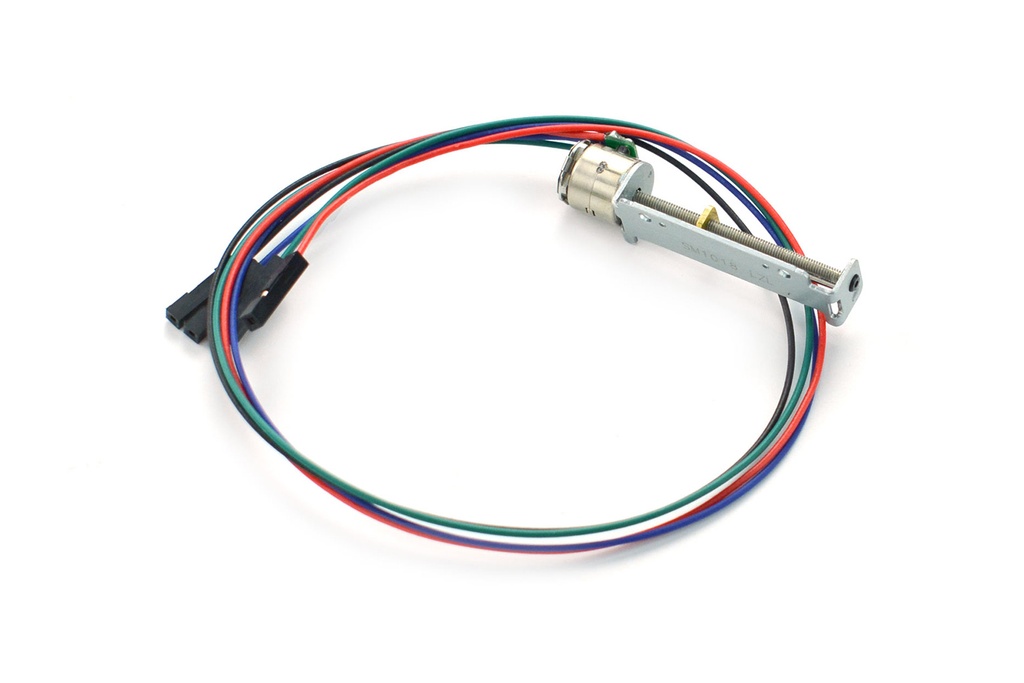

This 10mm micro stepper motor operates with a step angle of 18° per step and uses a 2-phase 4-wire configuration. It does not require a special driver board and can be directly interfaced with controllers like Arduino and ESP32. The motor features a metal slider on its slide rod, making it ideal for precise linear motion in applications such as automatic door locks, camera propellers, and DIY smart home projects.

Package Includes:

  • 1 x 18° Micro Stepper Motor

79.95 AED 79.95 AED Tax Included
79.95 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • No Special Driver Board Required: Can be directly connected to Arduino, ESP32, and other main controllers.
  • Metal Slider: Suitable for precision applications such as automatic door locks and camera mechanisms.

Specifications:

  • Driving Voltage: DC 3.3–5V
  • Coil Resistance: 20Ω ± 10%
  • Phase: 2-phase
  • Step Angle: 18° per step
  • Excitation: 2-2 phase excitation
  • Driving Method: Bipolar drive
  • Max Auto-start Frequency: 1500 PPS (Pulses Per Second)
  • Insulation Grade: E CLASS
  • Withstand Voltage: 100V AC, 1 second
  • Insulation Resistance: 1.0MΩ (DC 100V)
  • Operating Temperature Range: -10°C to +60°C
  • Maximum Thrust: 80g

Applications:

  • Automatic Door Locks: Enables precise and secure locking mechanisms.
  • Camera Propellers: Allows smooth and controlled movement for camera systems.
  • DIY Smart Home Projects: Ideal for home automation projects requiring accurate linear motion.

Pinout:

Pinout Diagram

Sequence:

Stepping Sequence

Dimension:

Dimension 1
Dimension 2
