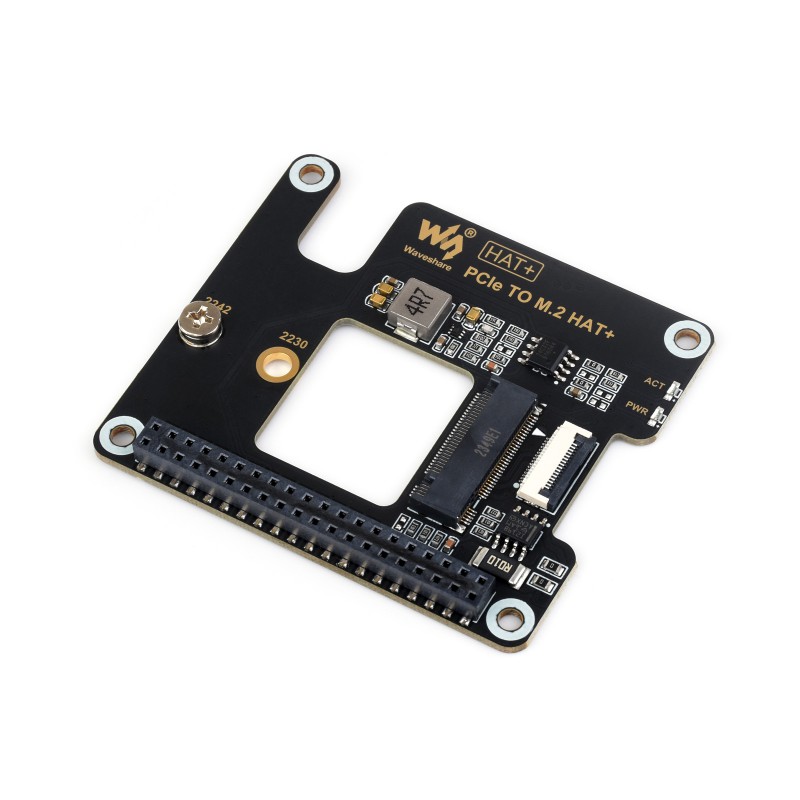

Raspberry Pi 5 PCIe To M.2 Adapter Supports NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing, HAT + Standard

The PCIe to M.2 M Key adapter board is designed specifically for the Raspberry Pi 5, providing support for M.2 solid-state drives (SSD) in 2230 and 2242 sizes. It enables booting from SSDs and supports PCIe Gen2 and Gen3 modes for enhanced performance.

Package Includes

PCIe TO M.2 HAT+ x1
2×20 Pin header x1
16P-Cable-40mm x1
Standoff pack x1

49.50 AED (Tax included)

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

Protocol Support: Compatible with NVMe and M.2 SSD protocols for high-speed read/write operations.
PCIe Modes: Operates in PCIe×1 Gen2 or Gen3 mode.
Compatibility: Designed exclusively for Raspberry Pi 5B.
Size Compatibility: Supports 2230 and 2242 size M.2 SSDs.
Status Indicators: Onboard LEDs include:
- PWR: Always ON when powered.
- ACT: Blinks during read/write operations.
Design: HAT+ layout with onboard EEPROM chip.
Power Monitoring: Features an onboard power monitoring chip for real-time SSD status tracking.
Cooling: Reserved airflow vent designed for Raspberry Pi 5 fan to improve SSD temperature management.

Specifications

Protocol Support: NVMe and M.2
PCIe Modes: Gen2 and Gen3
Compatibility: Raspberry Pi 5B
Size Compatibility: 2230 and 2242 M.2 SSDs
Indicators: PWR and ACT
Design: HAT+ with onboard EEPROM
Weight: 0.022 kg

Connecting

PCIe to M.2 HAT+ Board Connection Diagram

Applications

High-Speed Storage: Enhances Raspberry Pi 5 with SSD-level performance.
Efficient Booting: Enables SSD booting for faster startup times.
Monitoring: Allows real-time tracking of SSD performance and power usage.
Cooling Enhancement: Provides better airflow and temperature control for SSDs.

Documents

Package Contents
