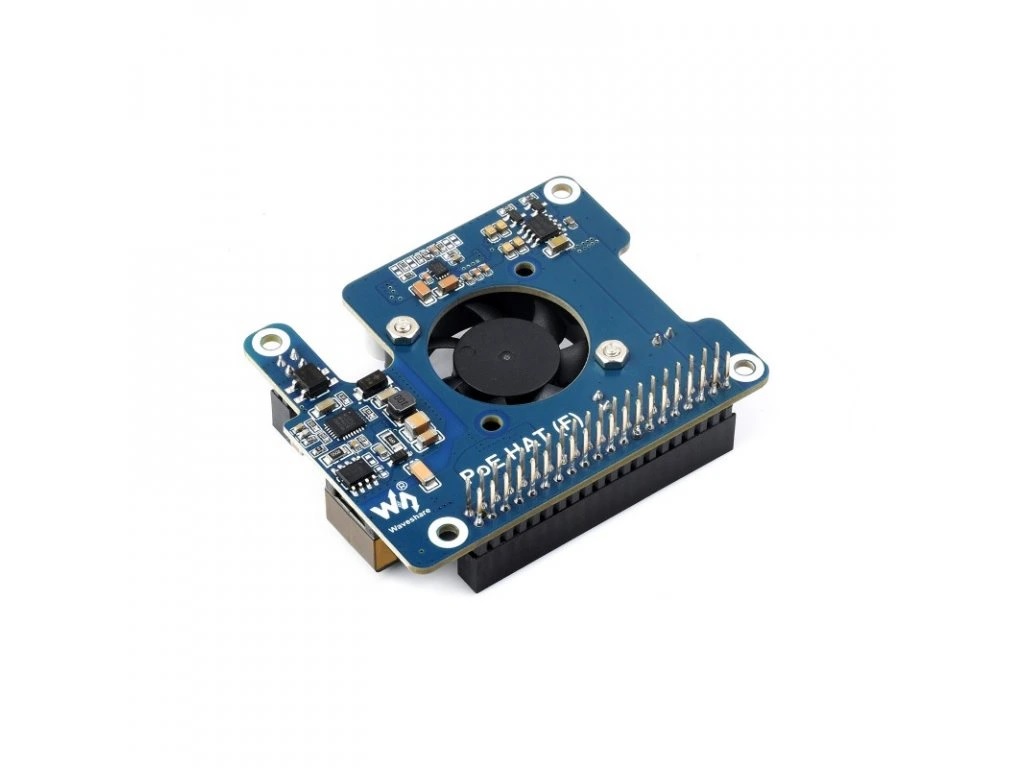

Raspberry Pi 5 Power Over Ethernet HAT (F) High Power Onboard Cooling Fan With Metal Heatsink
This high-power PoE HAT is designed for the Raspberry Pi 5 and provides both network connection and power through a single Ethernet cable. It supports IEEE 802.3af/at standards and features an onboard cooling fan and metal heatsink for enhanced heat dissipation. Additionally, it offers 12V and 5V power outputs to support external peripherals.
Package Includes:
- PoE HAT (F) x1
- Metal Heatsink x1
- Thermal Tape (3PCS) x1
Features
- PoE Capability: IEEE 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5.
- Power Supply: Provides network connection and power via a single Ethernet cable.
- Standard GPIO Header: Utilizes the standard 40PIN GPIO header, fully compatible with Raspberry Pi 5.
- Cooling System: Equipped with a high-speed active cooling fan and metal heatsink for efficient heat dissipation.
- Isolated SMPS: Fully isolated switched-mode power supply ensures safe and reliable operation.
Specifications
- PoE Power Input: 37V ~ 57V DC
- Power Output:
- GPIO Header: 5V 4.5A (Max)
- 2P Header: 12V 2A (Max)
- Dimensions: 56.5 × 70.0 mm
- Network Standard: IEEE 802.3af/at PoE
Applications
- Compatible with Raspberry Pi 5: Standard 40PIN GPIO stackable header supports additional HATs.
- Power Over Ethernet: Supplies both power and network through a single cable.
- Onboard Header Outputs: Provides 5V (up to 4.5A) and 12V (up to 2A) outputs for peripherals. Total output power up to 25W.
- Cooling System: Active fan enhances stability by improving heat dissipation.
- MP8759GD Buck Chip: Built-in buck converter chip supports up to 5A output under proper cooling conditions.
How to Install
Attach the thermal tapes first, then install the metal heatsink and secure the PoE HAT to the Raspberry Pi.
Dimensions
