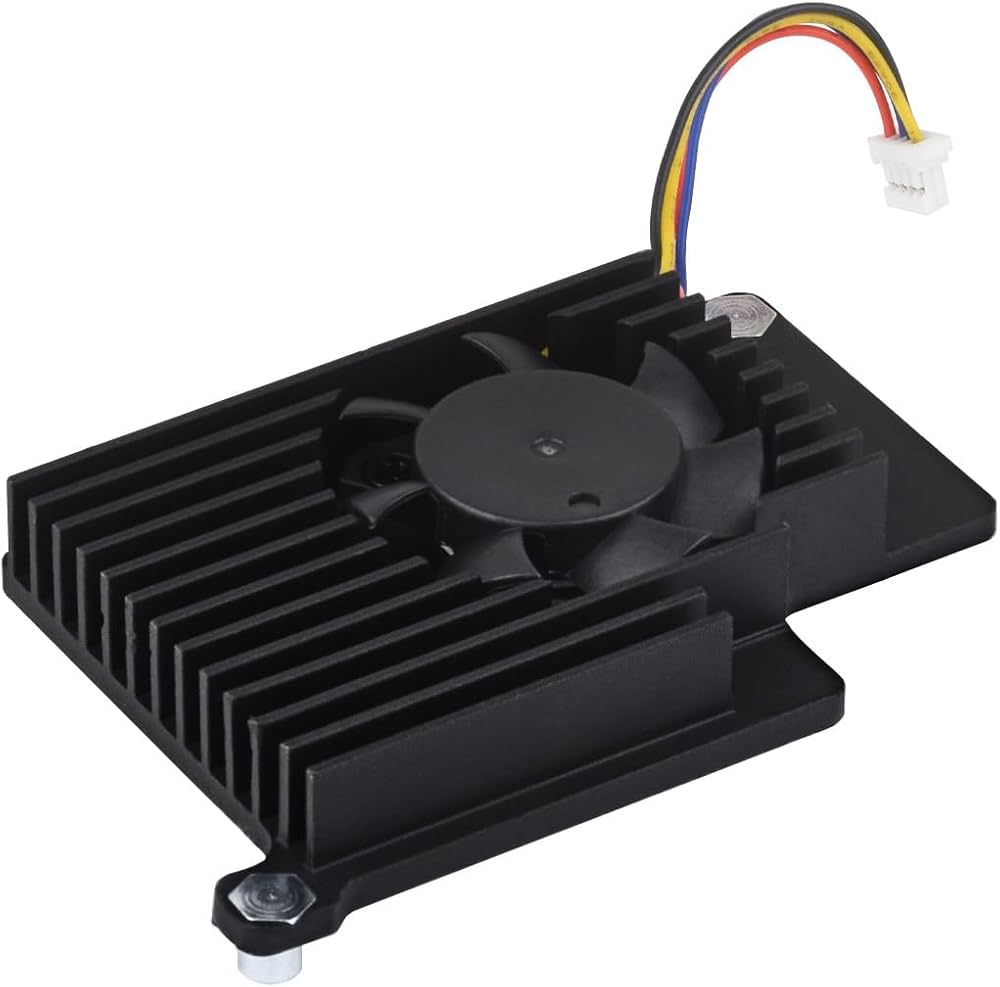

Aluminium Heatsink Active Cooler for Raspberry Pi 5 Fan With Thermal Pads
The Active Cooler for Raspberry Pi 5 is a dedicated cooling solution designed to enhance the performance and longevity of the Raspberry Pi 5 by effectively managing its thermal output. It includes an active cooling fan and an aluminum heatsink, both of which work together to dissipate heat efficiently.
Package Includes
- Active Cooler for Raspberry Pi 5: 1x Pi5-Active-Cooler-A
- Thermal Pads: 3 pieces
- Nylon Screws: 2 pieces
Note: The Raspberry Pi 5 and TF card are not included in the package.
Features
- Active Cooling: Combines an anodized aluminum heatsink with an active cooling fan to accelerate heat dissipation.
- Fan Speed Control: Equipped with pulse width modulation (PWM) control and a tachometer for precise fan speed regulation.
- Easy Installation: Simple connection to the Raspberry Pi 5 using a 4-pin cable and M2.5 nylon screws.
- Compatibility: Specifically designed to match the size and mounting holes of the Raspberry Pi 5.
Specifications
- Input Voltage: 5V DC (supplied via four-pin fan header on Raspberry Pi 5)
- Fan Speed Control: Pulse width modulation control with tachometer
- Maximum Airflow: 2.35 CFM
- Fan Speed: 8000±10% RPM
- Material: Anodized aluminum
- Weight: 0.029 kg
Applications
- Temperature Management: Ideal for maintaining optimal operating temperatures of the Raspberry Pi 5 during intensive tasks such as gaming, streaming, or running server applications.
- Performance Enhancement: Helps in maintaining the performance and stability of the Raspberry Pi 5 by preventing thermal throttling.
Dimensions:
