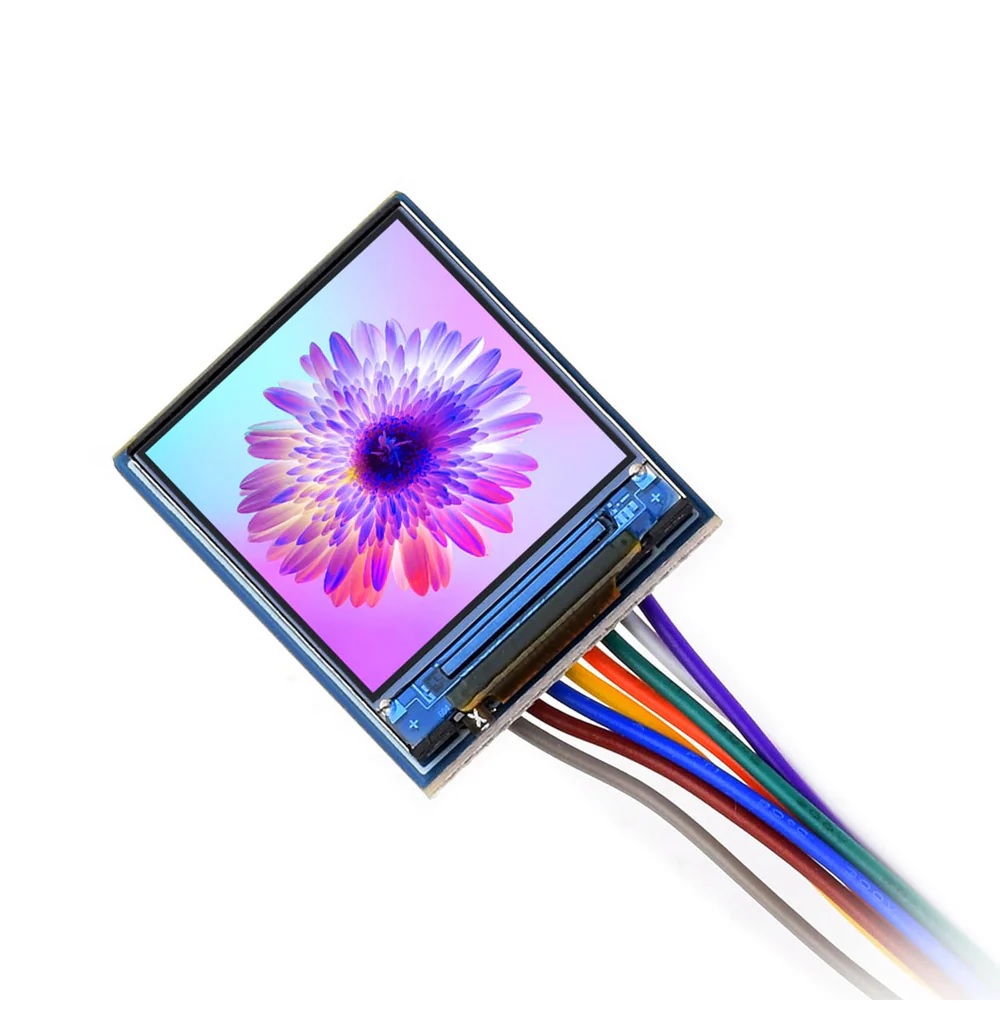

LCD Display 0.85 Inch 128x128 IPS 65K Colors Module SPI

LCD Display 0.85 Inch 128x128 IPS 65K Colors Module SPI

The 0.85-inch LCD Display Module stands out with its compact size and impressive display qualities. With a resolution of 128×128 and a vibrant IPS panel supporting 65K colors, it delivers sharp and colorful visuals in a small package. Powered by the GC9107 driver and using the SPI interface, it integrates seamlessly with platforms like Raspberry Pi, Arduino, STM32, ESP32, RP2040, and Jetson series. Whether you're building wearables, IoT devices, or educational tools, this module offers a compact and visually rich solution where space is limited but clarity matters.

Package Includes

  • 1 x 0.85-inch LCD Display Module

39.95 AED 39.95 AED Tax Included
39.95 AED Tax Included

Not Available For Sale

This combination does not exist.

TFT
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Vibrant Display: 0.85-inch IPS screen with 128×128 pixel resolution and 65K RGB colors for sharp and vivid visuals.
  • SPI Interface: Reduces IO pin usage while offering fast data transmission and ease of integration.
  • Broad Compatibility: Works with Raspberry Pi, Arduino, STM32, ESP32, RP2040, Jetson, and more.
  • Development Resources: Comes with examples and documentation for all supported platforms to simplify development.
  • Compact Form Factor: Small size ideal for space-constrained applications like wearables and IoT.

Specifications

  • Operating Voltage: 3.3V
  • Communication Interface: SPI
  • Screen Type: IPS
  • Controller: GC9107
  • Resolution: 128(H)RGB x 128(V)
  • Display Size: 15.2064(H) x 15.2064(V) mm
  • Pixel Pitch: 39.6(H) x 118.8(V) µm
  • Module Dimensions: 19.0 × 22.5 mm

Pinout with Arduino UNO

Pinout UNO Wiring Diagram

LCD UNO
VCC 3V3
GND GND
DIN D11
CLK D13
CS D10
DC D7
RST D8
BL D9

Applications

  • Wearable Devices
  • IoT Projects
  • Embedded Systems
  • Educational Tools

Application Example

Dimensions

Dimensions

Documents
