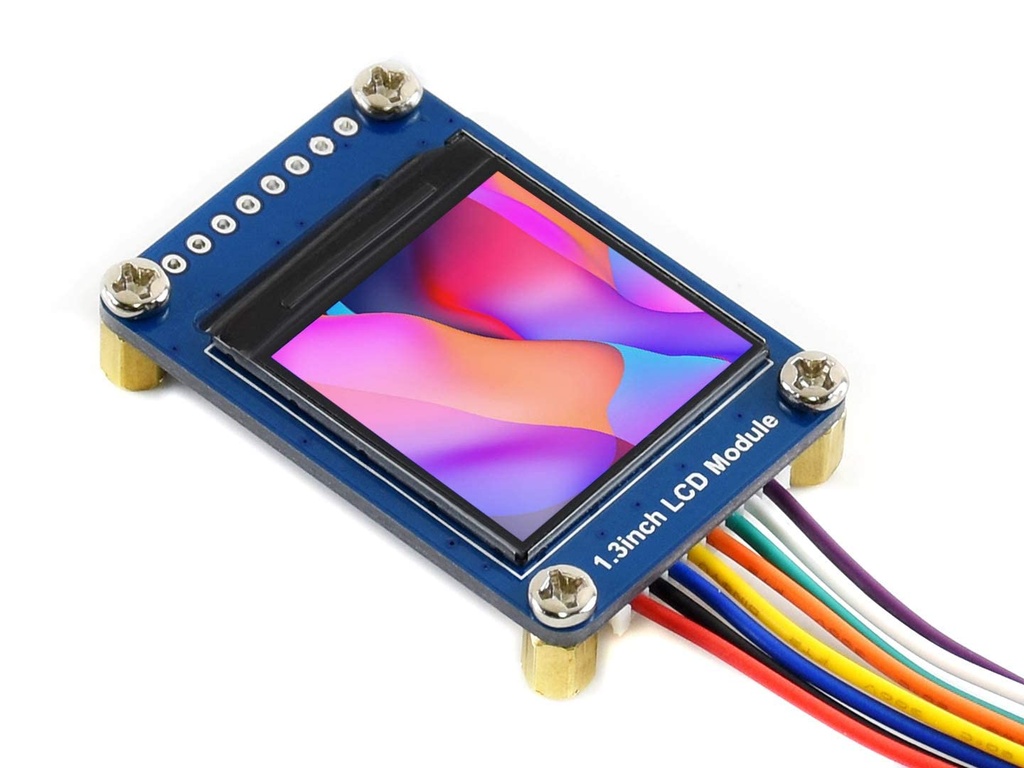

LCD General 240x240 1.3 Inch HD IPS Display Module

LCD General 240x240 1.3 Inch HD IPS Display Module

The 1.3-inch LCD Display Module is a compact, high-resolution display solution designed for various microcontroller platforms. It features an IPS screen with a 240x240 pixel resolution, providing vivid colors and excellent viewing angles. The display is driven by the ST7789 controller and communicates via the SPI interface, which requires minimal GPIO pins and simplifies integration with platforms like Raspberry Pi, Arduino, and STM32. This module is ideal for applications where a small, high-quality display is needed, such as wearable devices, IoT gadgets, and various embedded systems. The inclusion of extensive development resources, including example codes and manuals for different microcontroller platforms, makes it accessible and easy to use for both beginners and experienced developers.

Package Includes

  • 1 x 1.3-inch LCD Display Module
  • 1 x SPI Interface Cable

TFT
49.95 AED 49.95 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • High-Resolution Display: The module offers a 1.3-inch IPS screen with a 240x240 pixel resolution, providing sharp and clear visuals. The IPS technology ensures wide viewing angles and consistent color reproduction.
  • SPI Interface: Utilizes the SPI communication protocol, which requires minimal GPIO pins for control. This simplifies the wiring and integration process with microcontroller platforms.
  • Embedded Controller: Equipped with the ST7789 controller, the module ensures efficient operation and ease of integration with different microcontroller environments.
  • Development Resources: Comes with extensive development resources, including example codes and manuals for Raspberry Pi, Arduino, and STM32. These resources aid in quick and efficient project development.

Specifications

  • Operating Voltage: 3.3V/5V
  • Interface: SPI
  • LCD Type: IPS
  • Controller: ST7789
  • Resolution: 240(H)RGB x 240(V)
  • Display Area: 23.4 (H) x 23.4 (V) mm
  • Pixel Size: 0.0975 (H) x 0.0975 (V) mm
  • Dimension: 45 x 31 mm

Pinout

Pinout Diagram

Symbol Description
VCC Power (3.3V/5V input)
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection, low active
DC Data/Command selection
RST Reset, low active
BL Backlight

Connection with Arduino UNO

Connection Diagram

LCD UNO
VCC 5V
GND GND
DIN D11
CLK D13
CS D10
DC D7
RST D8
BL D9

Applications

  • Wearable Devices: Ideal for compact, high-resolution displays in smartwatches and other wearable technology.
  • IoT Devices: Suitable for visual feedback in Internet of Things applications.
  • Educational Projects: Great for learning and experimenting with display technology on platforms like Arduino and Raspberry Pi.
  • Embedded Systems: Perfect for use in various embedded systems requiring small, high-quality displays.

Dimensions

Module Dimensions
