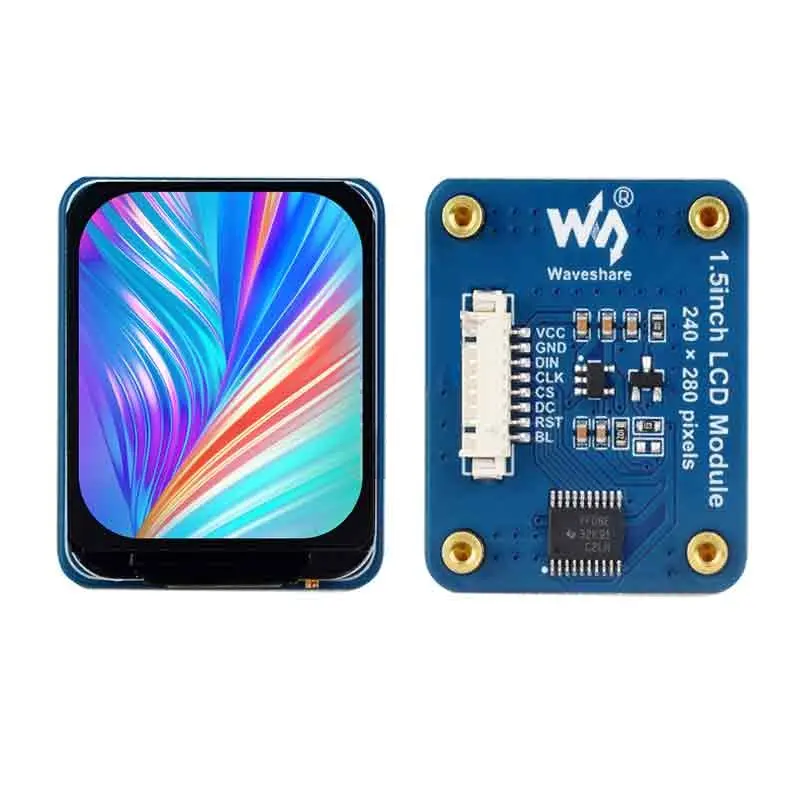

LCD Display 240x280 1.5Inch IPS Rounded Corners 262K Colors Module

LCD Display 240x280 1.5Inch IPS Rounded Corners 262K Colors Module

The 1.5-inch LCD Display Module is a compact, high-resolution display solution featuring rounded corners and a vibrant IPS panel. With a resolution of 240×280 pixels and support for 262K colors, this display offers clear and colorful output. It utilizes the NV3030B driver and communicates via a four-wire SPI interface, making it suitable for integration with a variety of microcontroller platforms, including Raspberry Pi, Arduino, STM32, ESP32, RP2040, and Jetson series. The module comes with extensive development resources, including example codes and manuals for different platforms, ensuring ease of use for developers.

Package Includes:

  • 1 x 1.5-inch LCD Display Module
  • 1 x SPI Interface Cable

TFT
62.00 AED 62.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days





Features:

  • High-Resolution IPS Display: Offers a resolution of 240×280 pixels, ensuring sharp and clear images. IPS technology provides wide viewing angles and accurate color reproduction.
  • SPI Communication Interface: Four-wire SPI interface minimizes GPIO pin usage and provides high-speed communication, simplifying microcontroller integration.
  • NV3030B Embedded Driver: Supports RGB444, RGB565, RGB666 formats. The RGB565 format is used for optimal compatibility and color fidelity.
  • Development Resources: Comes with manuals and demo codes for Raspberry Pi, Arduino, STM32, ESP32, RP2040, and Jetson series.
  • Power Supply: Supports both 3V and 5V input, compatible with a wide range of microcontroller platforms without the need for voltage level shifting.

1.5inch LCD Display Module

Specifications:

  • Operating Voltage: 3V/5V
  • Communication Interface: SPI (4-wire)
  • Screen Type: IPS
  • Controller: NV3030B
  • Resolution: 240(H)RGB × 280(V)
  • Display Size: 24.768mm × 28.896mm
  • Pixel Pitch: 0.1032mm × 0.1032mm
  • Module Dimensions: 28.5mm × 35mm

Pinout:

Pinout

Symbol Description
VCC Power (3V/5V input)
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection (low active)
DC Data/Command selection (high for data, low for command)
RST Reset (low active)
BL Backlight

Connection with Arduino UNO

Connection with Arduino

LCD UNO
VCC 5V
GND GND
DIN D11
CLK D13
CS D10
DC D7
RST D8
BL D9

Applications:

  • Wearable Devices: Ideal for compact smartwatches and wearable electronics with high-resolution displays.
  • IoT Devices: Useful for visual feedback in IoT applications for improved interactivity.
  • Educational Projects: Excellent for students and makers exploring display modules with microcontrollers.
  • Embedded Systems: Suitable for small-scale embedded systems that demand quality visuals and compact size.
