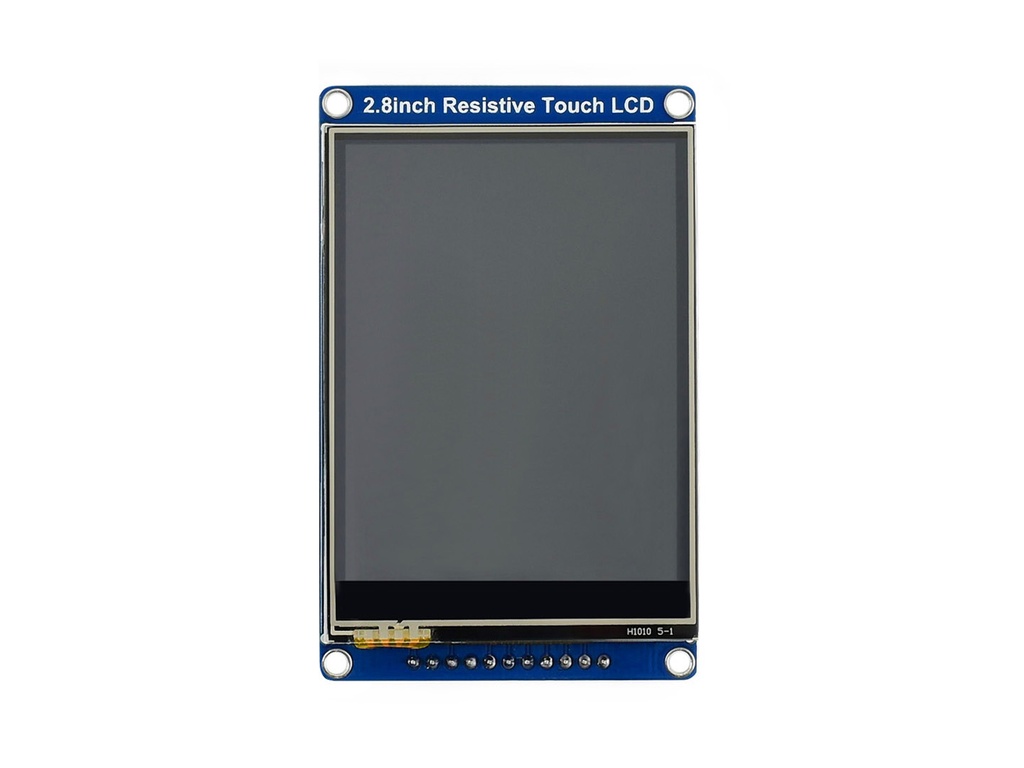

LCD 320x240 2.8 Inch Resistive Touch Display

LCD 320x240 2.8 Inch Resistive Touch Display

The 2.8-inch IPS LCD Display Module features a 320×240 pixel resolution and a resistive touch screen, providing a vivid and interactive display solution for embedded systems. It utilizes an onboard touch controller for a smoother touch experience and supports SPI interface for easy integration with various microcontrollers. The module also includes programmable backlight control for power-saving and comes with extensive development resources, including examples for STM32, AVR, and PIC.

Package Includes

  • 2.8-inch IPS LCD Display Module with Resistive Touch Screen
  • SPI Interface Cable

92.00 AED 92.00 AED Tax Included
92.00 AED Tax Included

Not Available For Sale

This combination does not exist.

TFT Touch
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share





Features

  • Smooth Touch Experience: Onboard touch controller (XPT2046) for smoother touch input compared to solutions using AD pins directly.
  • Efficient SPI Interface: Uses an SPI interface, requiring fewer pins and simplifying connectivity.
  • Programmable Backlight: Backlight control is programmable, allowing for power-saving features.
  • Comprehensive Development Resources: Includes resources and manuals with examples for STM32, AVR, and PIC platforms.

2.8-inch LCD Display

Specifications

  • Driver: HX8347D
  • Touch Controller: XPT2046
  • LCD Type: IPS
  • Communication Interface: SPI
  • Display Colors: RGB, 65K colors
  • Resolution: 320×240 pixels
  • Backlight: LED
  • Display Size: 57.6mm × 43.2mm
  • Outline Dimensions: 79.9mm × 50.8mm
  • Touch Type: 4-wire resistive
  • Power Supply Voltage: 5V
  • Logic Level: 3.3V

Pinout

Pinout Diagram

Pin Description
5V Power supply (5V input)
GND Ground
MISO SPI data output
MOSI SPI data input
SCLK SPI clock
LCD_CS LCD chip select
LCD_DC LCD data/command selection
LCD_RST LCD reset
LCD_BL LCD backlight control
TP_CS Touch panel chip select
TP_IRQ Touch panel interrupt
