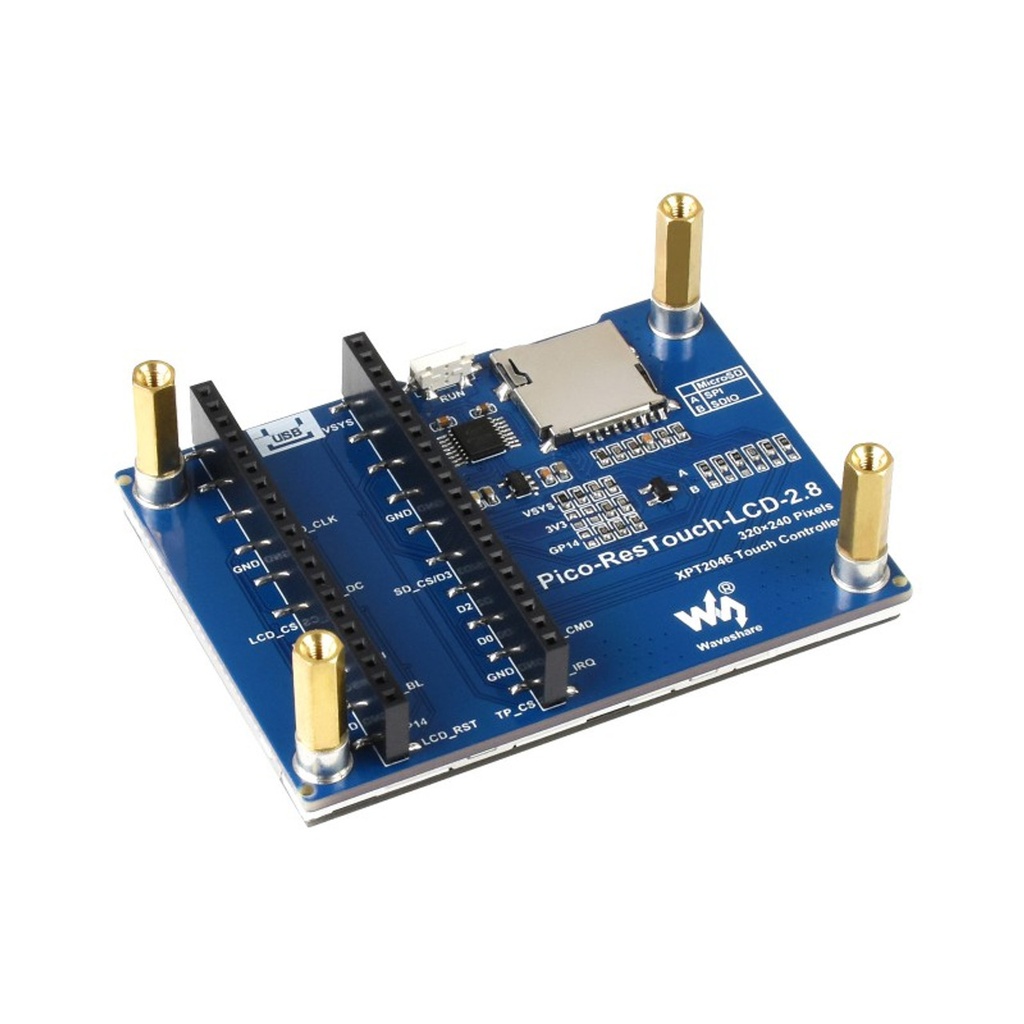

LCD 320x240 2.8 Inch Touch 262K Colors SPI Display Module For Raspberry Pi Pico
The 2.8-inch Touch Display Module for Raspberry Pi Pico is a compact and powerful display featuring a 320×240 resolution IPS screen capable of rendering 262K colors. It includes a resistive touch controller (XPT2046) and an ST7789 display driver, using an SPI interface for efficient communication.
The module supports both C/C++ and MicroPython, with development resources provided for easy integration with Raspberry Pi Pico.
Package Includes:
- Pico-ResTouch-LCD-2.8 x1
- Standoffs pack x1
Features
- Display: 320×240 resolution, IPS panel, 262K colors
- Clear and colorful visuals
- Dedicated resistive touch controller for smooth touch response
- MicroSD card slot for storing and displaying images
- Programmable backlight control for energy savings
Compatibility
- Designed for Raspberry Pi Pico
- Includes manuals and development examples for C/C++ and MicroPython
Specifications
- Operating Voltage: 5V
- Resolution: 320×240 pixels
- Display Panel: IPS
- Pixel Size: 0.18 × 0.18 mm
- Display Size: 57.60 × 43.20 mm
- Communication Interface: SPI
- Driver: ST7789
- Touch Controller: XPT2046
- Module Dimensions: 70.20 × 50.20 mm
Images
Raspberry Pi Pico Header Compatibility
Onboard Components
Pinout
The display uses a 4-wire SPI interface with the ST7789VW controller, which supports 240×RGB×320 resolution. SPI write speeds up to 60MHz.
| LCD Pin | Pico Pin | Description |
|---|---|---|
| VCC | VSYS | Power input |
| GND | GND | Ground |
| SDIO_CLK | GP5 | SCK pin of SDIO |
| LCD_DC | GP8 | Data/Command control |
| LCD_CS | GP9 | Chip select (Low active) |
| LCD_CLK | GP10 | SPI Clock |
| MOSI | GP11 | SPI MOSI |
| MISO | GP12 | SPI MISO |
| LCD_BL | GP13 | Backlight control |
| LCD_RST | GP15 | Reset pin (Low active) |
| TP_CS | GP16 | Touch chip select |
| TP_IRQ | GP17 | Touch interrupt pin |
| SDIO_CMD | GP18 | SDIO CMD pin |
| D0 | GP19 | SDIO D0 pin |
| D1 | GP20 | SDIO D1 pin |
| D2 | GP21 | SDIO D2 pin |
| SD_CS/D3 | GP22 | SDIO CS/D3 pin |
Dimensions
Resources
- Wiki: Pico-ResTouch-LCD-2.8
- MicroPython Demo: GitHub
- MicroPython Firmware / Blink Demo: Download
- Official Raspberry Pi C/C++ Demo: GitHub
- Official Raspberry Pi MicroPython Demo: GitHub
- Arduino C/C++ Demo: GitHub
