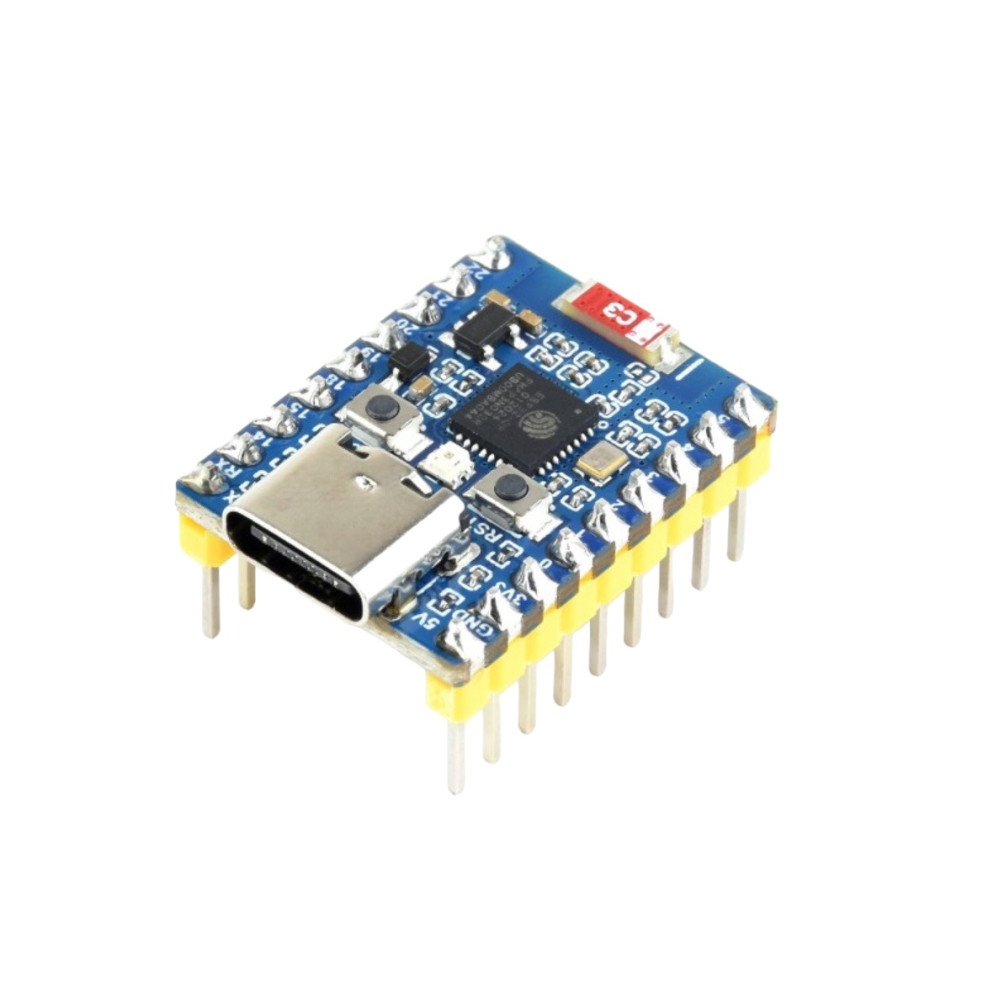

ESP32 C6 Zero Mini Development Board With Pin Header

ESP32 C6 Zero Mini Development Board With Pin Header

The ESP32-C6 Mini Development Board is a powerful and compact platform based on the ESP32-C6FH4 chip. It features a dual-core RISC-V processor and supports advanced wireless communication technologies including 2.4GHz WiFi 6 and Bluetooth 5. This board is designed for AIoT development with high processing capability, low power consumption, and excellent connectivity.

Package Includes

  • 1 x ESP32-C6-Zero with pre-soldered header

45.00 AED 45.00 AED Tax Included
45.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Based on ESP32-C6FH4 with a 32-bit RISC-V single-core processor (up to 160 MHz).
  • Includes 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB Flash memory.
  • Dual-mode wireless communication: 2.4GHz WiFi 6 and Bluetooth Low Energy (BLE).
  • Type-C USB connector for easy power and programming.
  • Rich peripheral interfaces and castellated module design for soldering to carrier boards.
  • Supports multiple low-power modes for optimized energy efficiency.

Specifications

  • Processors: 32-bit RISC-V high-performance core (160 MHz) + low-power core (20 MHz)
  • Memory: 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, 4MB Flash
  • Wireless: Integrated 2.4GHz WiFi 6 and BLE with strong RF performance
  • Design: Castellated module with onboard ceramic antenna
  • Power Management: Flexible clock and independent power supply modules
  • Connectivity: USB Type-C, 22 x GPIO pins

Applications

  • AI Computing: High-speed processing for AI applications
  • IoT Devices: Stable and efficient wireless communication with WiFi 6 and BLE

Wireless Communication

  • WiFi 6: 2.4GHz, supports 802.11 ax/b/g/n with 40 MHz bandwidth
  • Bluetooth 5: BLE and Bluetooth Mesh support

Development Support

  • Compatible with ESP-IDF and Arduino IDE
  • Comes with comprehensive SDKs, documentation, and tutorials

Pinout and On-Board Components

ESP32-C6-Zero Board Diagram

  1. ESP32-C6FH4: Dual-core RISC-V up to 160 MHz
  2. USB Type-C Port: For power, programming, and debugging
  3. ME6217C33M5G: Low-dropout LDO, up to 800mA
  4. WS2812: Onboard RGB LED
  5. 2.4G Ceramic Antenna
  6. BOOT Button: Enter download mode (press before RESET)
  7. RESET Button: Board reset
  8. ESP32-C6FH4 Pins: GPIO and peripheral access

ESP32-C6-Zero Pin Definition

Dimensions

ESP32-C6-Zero Dimensions

Resources

  • WIKI, Software Setup, Compilation
  • Development Tools: VS Code, Arduino IDE
  • Communication: UART with SSCOM5.13.1
  • Flashing & Debugging: Flash tools, Bluetooth assistant
  • Documentation:
    • Schematic & 3D Model
    • ESP32-C6 Technical Reference Manual
    • ESP32-C6 Series Datasheet
    • ESP-IDF Documentation





Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
