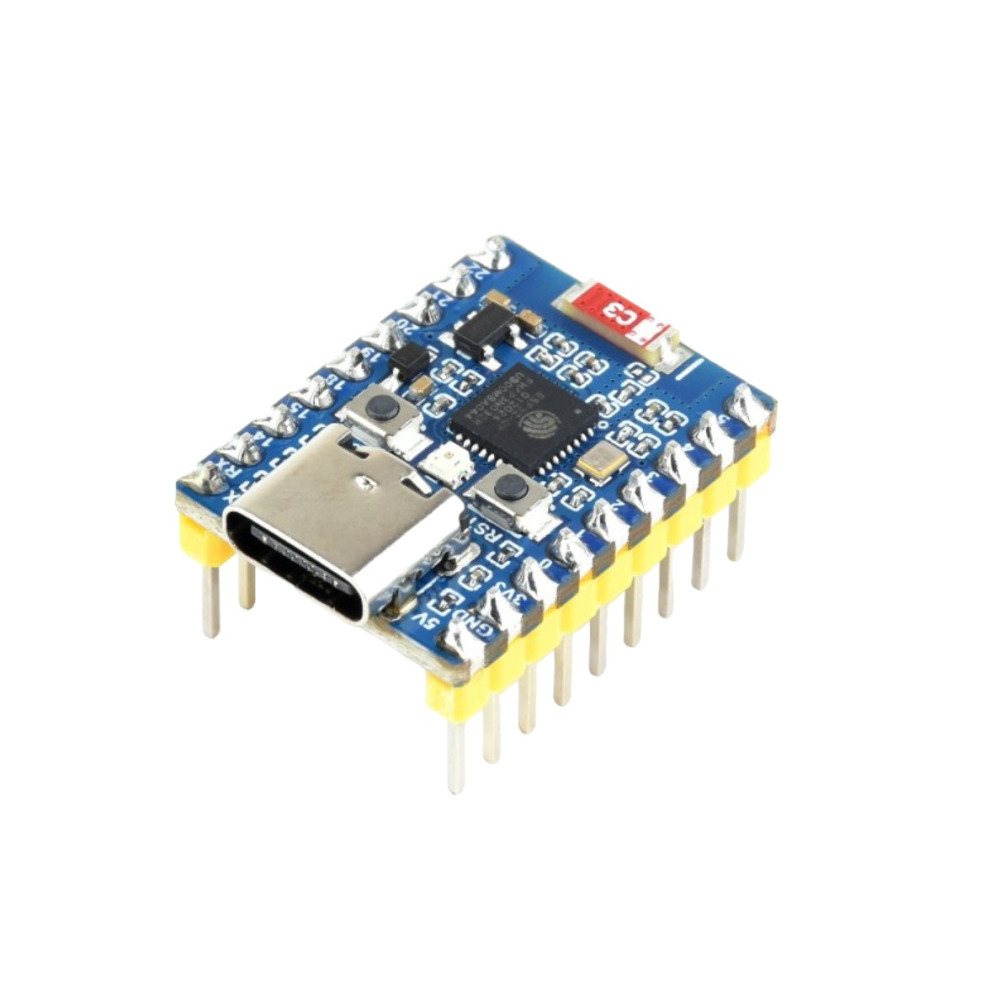

ESP32 C6 Zero Mini Development Board With Pin Header
The ESP32-C6 Mini Development Board is a powerful and compact platform based on the ESP32-C6FH4 chip. It features a dual-core RISC-V processor and supports advanced wireless communication technologies including 2.4GHz WiFi 6 and Bluetooth 5. This board is designed for AIoT development with high processing capability, low power consumption, and excellent connectivity.
Package Includes
- 1 x ESP32-C6-Zero with pre-soldered header
Features
- Based on ESP32-C6FH4 with a 32-bit RISC-V single-core processor (up to 160 MHz).
- Includes 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, and 4MB Flash memory.
- Dual-mode wireless communication: 2.4GHz WiFi 6 and Bluetooth Low Energy (BLE).
- Type-C USB connector for easy power and programming.
- Rich peripheral interfaces and castellated module design for soldering to carrier boards.
- Supports multiple low-power modes for optimized energy efficiency.
Specifications
- Processors: 32-bit RISC-V high-performance core (160 MHz) + low-power core (20 MHz)
- Memory: 320KB ROM, 512KB HP SRAM, 16KB LP SRAM, 4MB Flash
- Wireless: Integrated 2.4GHz WiFi 6 and BLE with strong RF performance
- Design: Castellated module with onboard ceramic antenna
- Power Management: Flexible clock and independent power supply modules
- Connectivity: USB Type-C, 22 x GPIO pins
Applications
- AI Computing: High-speed processing for AI applications
- IoT Devices: Stable and efficient wireless communication with WiFi 6 and BLE
Wireless Communication
- WiFi 6: 2.4GHz, supports 802.11 ax/b/g/n with 40 MHz bandwidth
- Bluetooth 5: BLE and Bluetooth Mesh support
Development Support
- Compatible with ESP-IDF and Arduino IDE
- Comes with comprehensive SDKs, documentation, and tutorials
Pinout and On-Board Components
- ESP32-C6FH4: Dual-core RISC-V up to 160 MHz
- USB Type-C Port: For power, programming, and debugging
- ME6217C33M5G: Low-dropout LDO, up to 800mA
- WS2812: Onboard RGB LED
- 2.4G Ceramic Antenna
- BOOT Button: Enter download mode (press before RESET)
- RESET Button: Board reset
- ESP32-C6FH4 Pins: GPIO and peripheral access
Dimensions
Resources
- WIKI, Software Setup, Compilation
- Development Tools: VS Code, Arduino IDE
- Communication: UART with SSCOM5.13.1
- Flashing & Debugging: Flash tools, Bluetooth assistant
- Documentation:
- Schematic & 3D Model
- ESP32-C6 Technical Reference Manual
- ESP32-C6 Series Datasheet
- ESP-IDF Documentation
