Luckfox Pico Pro RV1106 Linux Micro Development Board ARM Cortex-A7 MCU
The Luckfox Pico Pro/Max RV1106 is a Linux micro development board that integrates multiple processors including an ARM Cortex-A7, a RISC-V MCU, an NPU, and an ISP, providing high performance and versatility for a wide range of applications. This board is designed to be highly integrated and powerful, making it suitable for professional and hobbyist projects.
Package Includes
- 1 x Luckfox Pico Pro
Features
- High Integration and Performance: Combines CPU, NPU, ISP, and other processors for versatile functionality.
- CPU: Single-core ARM Cortex-A7 with integrated NEON and FPU.
- NPU: Rockchip self-developed 4th generation with 0.5 TOPS, supports int4, int8, and int16.
- ISP: Third-generation ISP3.2 supporting 5-Megapixel input with image enhancement algorithms.
- Encoding: Supports intelligent encoding mode, saving over 50% bit rate compared to conventional CBR mode.
- Memory: 16-bit DRAM DDR3L for high bandwidth requirements.
- Integrated Components: Built-in POR, audio codec, and MAC PHY.
- Development Ease: Includes TF card slot, camera interface, and Ethernet port for easier project integration.
- Enhanced User Experience: Equipped with SLC NAND FLASH for stable performance.
Specifications
| Component | Details |
|---|---|
| Processor | Cortex A7 @1.2GHz |
| NPU | 0.5TOPS, supports int4, int8, and int16 |
| ISP | Input 5MP @30fps (Max) |
| Memory | Pro: 128MB DDR3L; Max: 256MB DDR3L |
| USB | USB 2.0 Host/Device |
| Camera | MIPI CSI 2-lane |
| GPIO | 26 × GPIO pins |
| Ethernet Port | 10/100M Ethernet controller with embedded PHY |
| Default Storage | SPI NAND FLASH (256MB) |

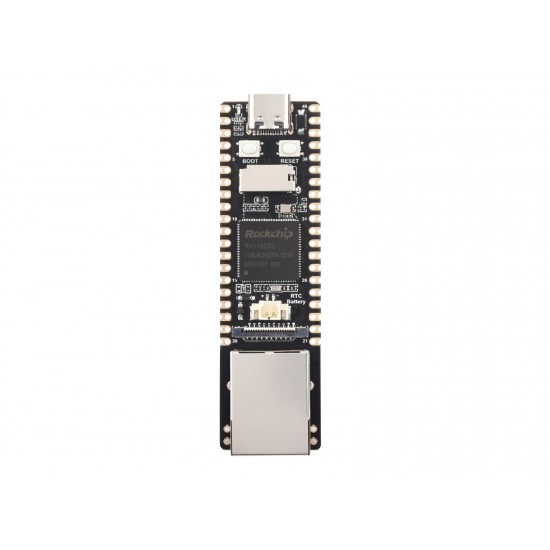

Pinout and On-Board Features
- USB Type-C connector: For power and programming
- ACT-LED: Activity indicator
- BOOT button: Enter download mode during power-on
- RESET button: Reset the board
- TF card slot: For external storage
- RV1106: Vision processor SoC (RV1106G2 - Pro, RV1106G3 - Max)
- RTC battery header: MX1.25 connector for RTC battery
- CSI camera interface: MIPI CSI 2-lane
- RJ45 Ethernet port: Network interface
- USB test pads: TP1: USB_N, TP2: USB_P
- USB detection test pad: For USB testing
- W25N02KV: 256MB SLC NAND FLASH
- GPIO header: For external connections
Applications
The Luckfox Pico Pro/Max RV1106 is suitable for a variety of applications, from hobbyist projects to complex industrial solutions. Its powerful architecture makes it ideal for vision processing, AI applications, and embedded development.
