Motor DC Geared L-Shaped 12V 240RPM With Magnetic Hall Encoder

Motor DC Geared L-Shaped 12V 240RPM With Magnetic Hall Encoder

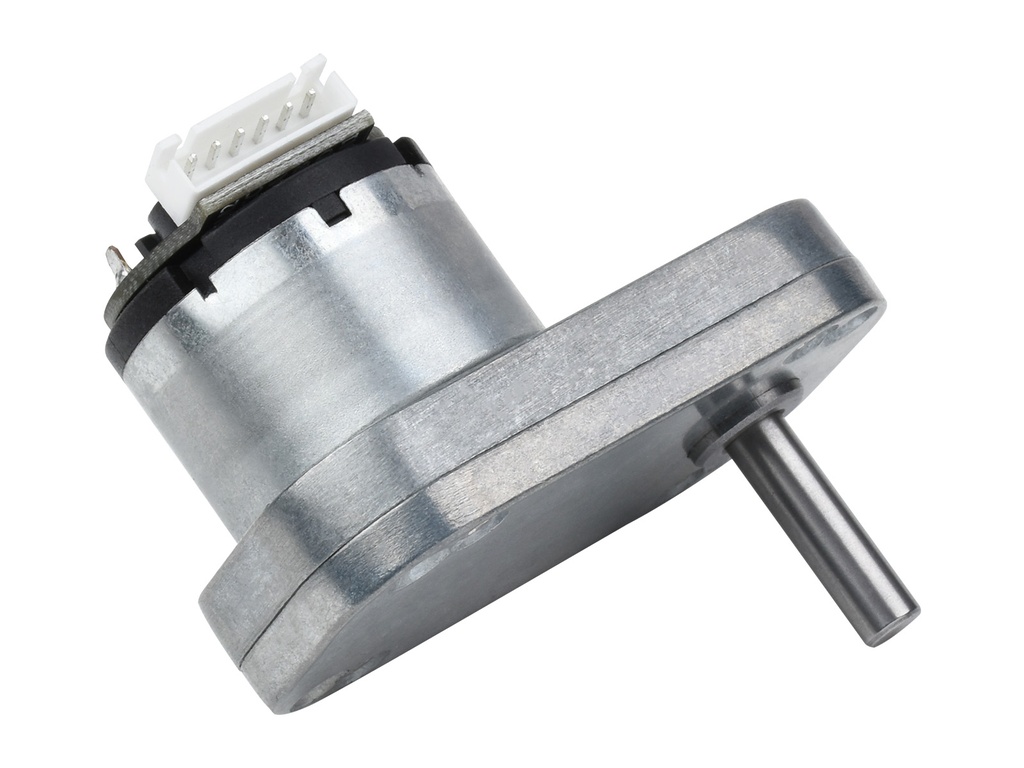

The L-shaped permanent magnet DC gear motor is specifically engineered for compact applications such as short wheelbase robots and L-shaped structures. It incorporates all-metal gears and a magnetic hall encoder to ensure precise and consistent performance. Unlike motors with self-locking mechanisms, this model allows manual rotation of the output shaft, providing flexibility during installation and testing.

Package Includes

  • 1 x L-Shaped Permanent Magnet DC Gear Motor with Magnetic Hall Encoder

Motor with Encoder
72.00 AED 72.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

  • L-Shaped Design: Optimized for space-saving and L-shaped mounting requirements.
  • Permanent Magnet Motor: Delivers consistent and efficient performance.
  • Magnetic Hall Encoder: AB dual-phase incremental encoder with square wave output ensures accurate speed and position feedback.
  • All-Metal Gears: Provides enhanced durability and long service life.
  • Manual Rotation: Non-self-locking output shaft enables manual rotation for ease of adjustment.

Specifications

  • Working Voltage: DC 12V
  • Rated Power: 5.2W
  • No-Load Speed: 240 rpm
  • Locked-Rotor Torque: ≥8.5 kg.cm
  • No-Load Current: 0.15A (max)
  • Locked-Rotor Current: ≤3.5A
  • Rated Load: 4.0 kg.cm
  • Hall Resolution: 13 PPR × 42 = 546 PPR
  • Rated Speed: 125 rpm
  • Gear Reduction Ratio: 1:42
  • Rated Current: 1.0A (max)

L-Shaped Permanent Magnet DC Gear Motor

Encoder Specifications

  • Type: AB Dual-Phase Incremental Magnetic Hall Encoder
  • Line Rate: 13 PPR × Gear reduction ratio
  • Power Supply: DC 3.3V / 5.0V
  • Basic Function: Built-in pull-up resistors, ready to connect with MCUs
  • Interface Type: XH2.54-6PIN
  • Output Signal Type: Square wave AB phase
  • Response Frequency: 100 KHz
  • Basic Pulses: 13 PPR
  • Magnetic Ring Trigger Poles Number: 26 poles (13 pole pairs)

Pinout

Pinout

Dimensions

Outline Dimensions
