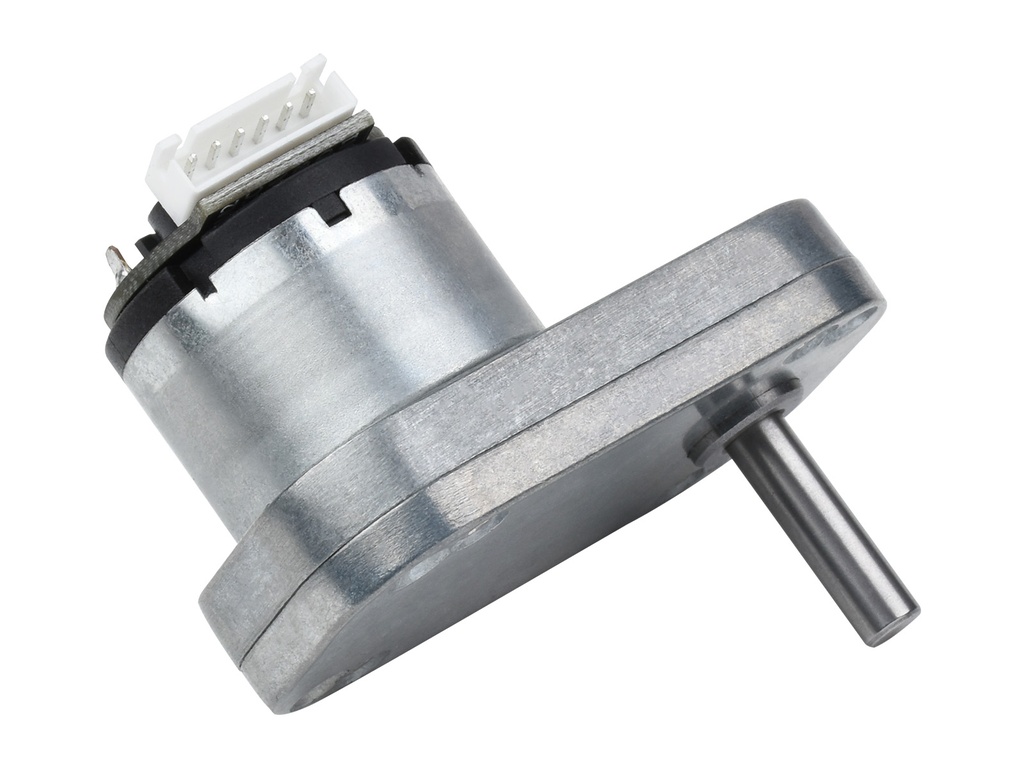

Motor DC Geared L-Shaped 12V 240RPM With Magnetic Hall Encoder
The L-shaped permanent magnet DC gear motor is specifically engineered for compact applications such as short wheelbase robots and L-shaped structures. It incorporates all-metal gears and a magnetic hall encoder to ensure precise and consistent performance. Unlike motors with self-locking mechanisms, this model allows manual rotation of the output shaft, providing flexibility during installation and testing.
Package Includes
- 1 x L-Shaped Permanent Magnet DC Gear Motor with Magnetic Hall Encoder
Features
- L-Shaped Design: Optimized for space-saving and L-shaped mounting requirements.
- Permanent Magnet Motor: Delivers consistent and efficient performance.
- Magnetic Hall Encoder: AB dual-phase incremental encoder with square wave output ensures accurate speed and position feedback.
- All-Metal Gears: Provides enhanced durability and long service life.
- Manual Rotation: Non-self-locking output shaft enables manual rotation for ease of adjustment.
Specifications
- Working Voltage: DC 12V
- Rated Power: 5.2W
- No-Load Speed: 240 rpm
- Locked-Rotor Torque: ≥8.5 kg.cm
- No-Load Current: 0.15A (max)
- Locked-Rotor Current: ≤3.5A
- Rated Load: 4.0 kg.cm
- Hall Resolution: 13 PPR × 42 = 546 PPR
- Rated Speed: 125 rpm
- Gear Reduction Ratio: 1:42
- Rated Current: 1.0A (max)
Encoder Specifications
- Type: AB Dual-Phase Incremental Magnetic Hall Encoder
- Line Rate: 13 PPR × Gear reduction ratio
- Power Supply: DC 3.3V / 5.0V
- Basic Function: Built-in pull-up resistors, ready to connect with MCUs
- Interface Type: XH2.54-6PIN
- Output Signal Type: Square wave AB phase
- Response Frequency: 100 KHz
- Basic Pulses: 13 PPR
- Magnetic Ring Trigger Poles Number: 26 poles (13 pole pairs)
Pinout
Dimensions
Documents
