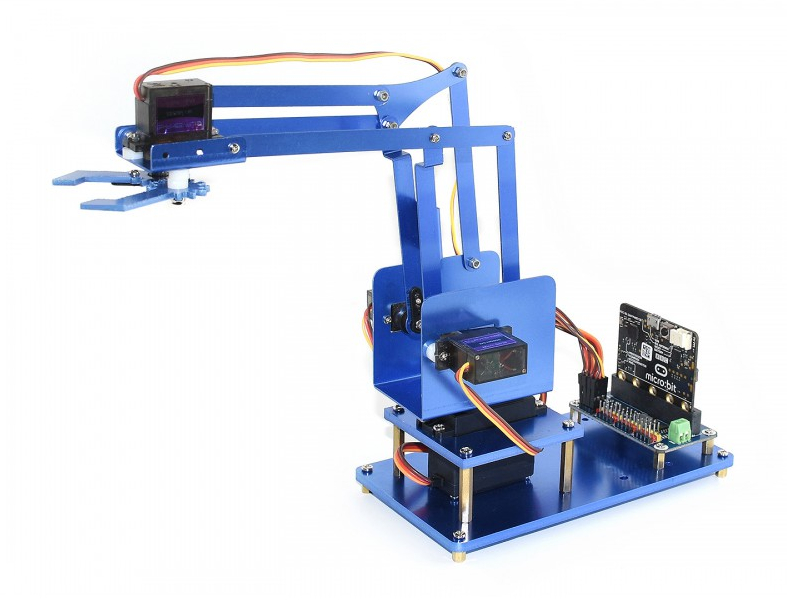

Robot - 4-DOF Metal Arm Kit With EU PSU For Micro:bit
Equip your micro with this 4-DOF metal robot arm and begin exploring the fascinating world of robotics and artificial intelligence. This starter kit includes a servo driver board, a robust metal arm structure, and four high-torque metal gear servos. Paired with the micro, the arm can be easily controlled via a smartphone using Bluetooth connectivity.
Package Includes
- 1 x Set of metal robot arm parts
- 1 x MG996R Servo
- 3 x MG90S Servos
- 1 x MG996R Servo Wheel
- 1 x Servo Driver Board for micro
- 1 x EU Standard USB Power Adapter
- 1 x 150mm Servo Extension Wire
- 1 x Screw Pack
- 2 x Screwdrivers
Note: micro is NOT included.
Features
- Servo Driver for micro:
- Edge Connector: Directly pluggable for simple setup
- I2C Controlled: Uses only 2 communication pins
- 16-Channel Outputs: Supports up to 16 servos or PWM outputs with 12-bit resolution (4096 levels)
- 5V Regulator: Integrated regulator with up to 3A output (powered via VIN terminal)
- Standard Servo Interface: Compatible with commonly used servos
- Reserved I2C Pins: Allows connection to other control boards
- Development Resources: Includes manuals and graphical examples for micro (e.g., Bluetooth/2.4G remote control)
- Robot Arm Structure:
- 4-DOF Design: Large solid base with a metal mechanical grasper
- Aluminum Alloy Body: Durable with sandblasted oxidized finish
- Optimized Mechanical Design: Offers agile control and easy assembly
- Metal Gear Servos: Four servos with high torque and smooth motion
Specifications
- Servo Driver:
- Connector: micro edge connector, direct plug-in
- Control: I2C protocol, requires only 2 pins
- Outputs: 16 channels with 12-bit resolution
- Voltage Regulator: 5V output, up to 3A current
- Interface: Compatible with standard servos
- Expansion: Reserved I2C pins for external modules
- Resources: Includes manual and sample code for micro
- Robot Arm:
- Degrees of Freedom: 4-DOF
- Material: Full aluminum alloy body
- Servos: 4x metal gear servos
- Design: Compact structure and smart mounting system
Applications
- Perfect for educational use in robotics and AI
- Great for hobbyist projects and small robotic experiments
- Bluetooth smartphone control allows interactive, hands-on learning
Dimensions
Documents
