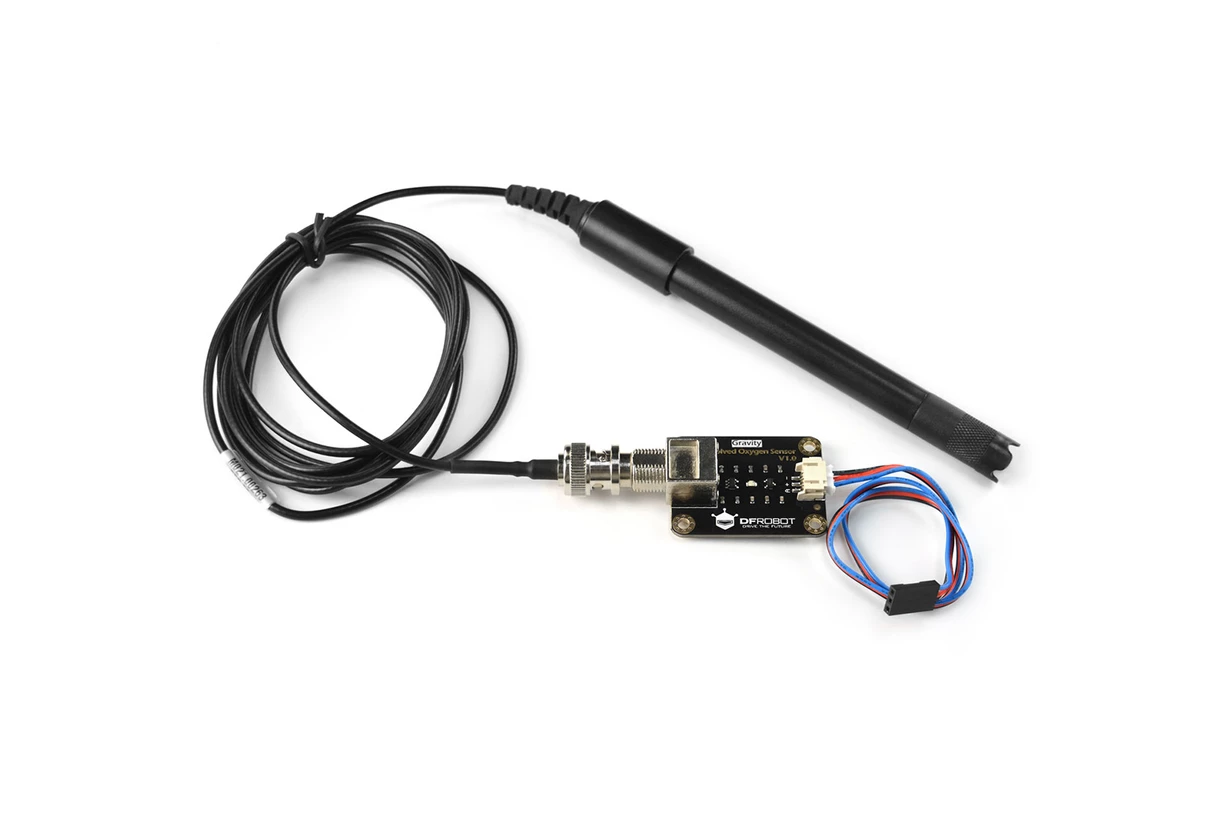

Analog Dissolved Oxygen Sensor Meter Kit (DFRobot Gravity) - SEN0237-A

Analog Dissolved Oxygen Sensor Meter Kit (DFRobot Gravity) - SEN0237-A

This is a dissolved oxygen sensor kit used to measure the amount of dissolved oxygen in water — a key indicator of water quality. It's ideal for applications such as aquaculture, environmental monitoring, and scientific research. Low dissolved oxygen levels can pose a threat to aquatic life, making this sensor essential for maintaining healthy water environments.

Package Includes

  • 1 x Galvanic Dissolved Oxygen Probe with Membrane Cap
  • 1 x Spare Membrane Cap
  • 1 x Signal Converter Board
  • 1 x Gravity Analog Sensor Cable
  • 2 x Waterproof Gasket
  • 1 x Screw Cap for BNC Connector
  • 2 x Plastic Dropper

699.00 AED 699.00 AED Tax Included
699.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



The included galvanic probe requires no polarization time and is always ready to use. Both the membrane cap and filling solution are replaceable, ensuring low maintenance costs. The signal converter board is plug-and-play and supports a wide voltage range (3.3V–5.5V), making it compatible with most microcontrollers like Arduino.

Note:

  • The filling solution (0.5 mol/L NaOH) is not included due to international shipping restrictions. It must be prepared or purchased locally.
  • Always wear gloves when handling the solution, as it is corrosive. In case of contact with skin, rinse with water immediately.
  • Handle the membrane cap with care; it is fragile and sensitive to damage.
  • Stir the water gently during measurement to evenly distribute the oxygen.

Arduino Dissolved Oxygen (DO) Sensor Connection Diagram
Arduino Dissolved Oxygen (DO) Sensor Connection Diagram

Features

  • Dissolved Oxygen Probe:
    • Galvanic type, no need for polarization
    • Replaceable membrane cap and filling solution for low maintenance
  • Signal Converter Board:
    • Wide voltage support: 3.3~5.5V
    • Analog output: 0~3.0V
    • Gravity interface, plug and play

Specifications

  • Dissolved Oxygen Probe:
    • Type: Galvanic Probe
    • Detection Range: 0~20 mg/L
    • Response Time: 98% full response in 90 seconds at 25℃
    • Pressure Range: 0~50 PSI
    • Electrode Life: 1 year (normal use)
    • Maintenance:
      • Membrane Cap: Replace every 1–2 months (muddy water), 4–5 months (clean water)
      • Filling Solution: Replace monthly
    • Cable Length: 2 meters
    • Connector: BNC
  • Signal Converter Board:
    • Operating Voltage: 3.3~5.5V
    • Output Signal: 0~3.0V
    • Cable Connector: BNC
    • Signal Connector: Gravity Analog (PH2.0-3P)
    • Dimensions: 42mm × 32mm
