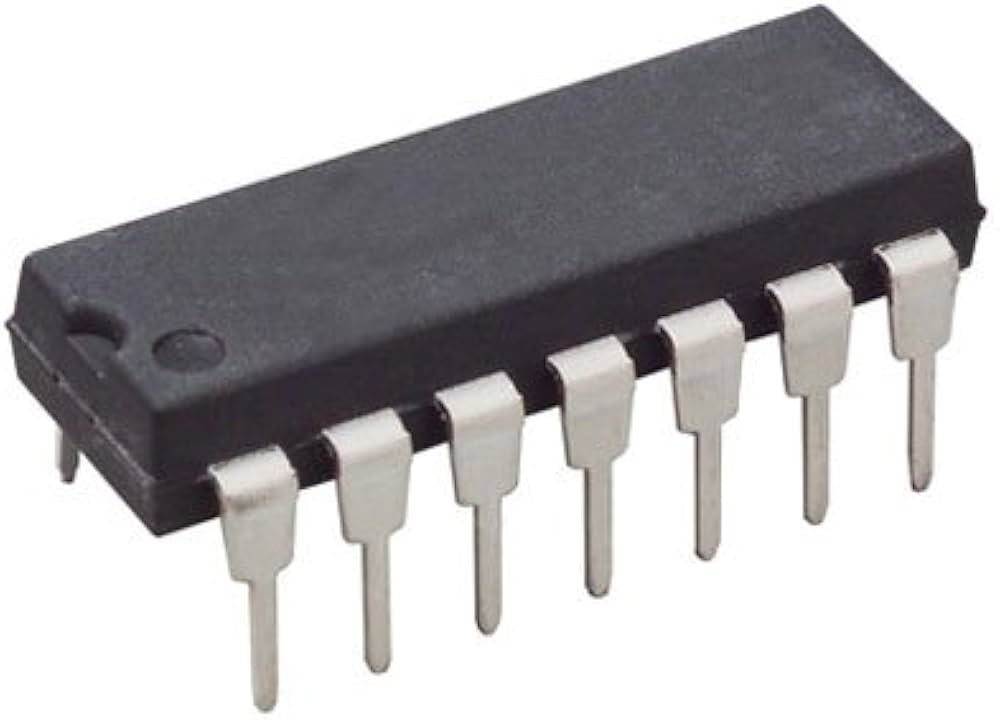

Logic Gate Octal Buffer/Line Driver with 3-State Outputs 74HC125

Logic Gate Octal Buffer/Line Driver with 3-State Outputs 74HC125

The 74HC125 is a high-speed CMOS integrated circuit that features four independent buffer/line driver gates with three-state outputs. It is designed for operation over a wide voltage range from 2.0V to 6.0V, making it versatile for many digital applications. With its low power consumption and high noise immunity, this IC is ideal for interfacing with buses and expanding system capabilities. Its three-state output configuration allows multiple outputs to share the same bus line efficiently.

Package Includes

  • 1 x 74HC125 Octal Buffer/Line Driver IC

8.30 AED 8.30 AED Tax Included
8.30 AED Tax Included

Not Available For Sale

This combination does not exist.

Other Logic Gate
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Specifications

  • Supply Voltage (Vcc): 2.0V to 6.0V
  • Output Current: 4mA (Vcc = 4.5V)
  • Propagation Delay Time (typ): 8.5ns (Vcc = 6V)
  • Input Voltage (VIH/VIL): 0.7Vcc / 0.3Vcc
  • Output Voltage (VOH/VOL): Vcc - 0.1V / 0.1V
  • Power Dissipation (typ): 20mW (Vcc = 5V)
  • Operating Temperature: -55°C to 125°C
