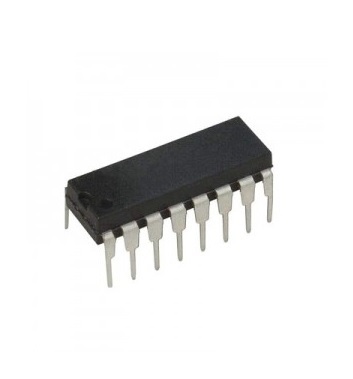

IC 4018 DIP Dual 8-Bit Serial-In/Parallel-Out Shift Register

IC 4018 DIP Dual 8-Bit Serial-In/Parallel-Out Shift Register

The GD4018B is a versatile integrated circuit (IC) designed for digital applications. Built using CMOS (Complementary Metal-Oxide-Semiconductor) technology, it is known for its low power consumption and high noise immunity, making it ideal for various data processing and control tasks.

Package Includes

  • 1 x GD4018B IC DIP-16

8.30 AED 8.30 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • CMOS Technology: Ensures low power consumption and high noise immunity.
  • Dual 8-Bit Serial-In/Parallel-Out Shift Register: Contains two independent 8-bit shift registers configurable in serial-in/parallel-out mode.
  • Parallel Load: Supports parallel data loading into the shift registers.
  • Three-State Outputs: Enables easy interfacing with other digital systems.
  • Clock Input: Controls the shifting operation using an external clock signal.
  • Clear Input: Allows reset of the shift registers to zero.

Specifications

  • Supply Voltage: 3V to 15V
  • Operating Frequency: Up to 10 MHz
  • Output Current: 25 mA
  • Input Current: Max 1 µA
  • Power Consumption: Typically < 100 mW

Applications

  • Data Storage: Ideal for use in temporary data storage applications.
  • Serial-to-Parallel Conversion: Converts incoming serial data into parallel format.
  • Parallel-to-Serial Conversion: Converts parallel input data into serial form for transmission.
  • Timing Circuits: Used in oscillator and timing applications.
  • Digital Signal Processing: Applicable in a variety of DSP systems.
