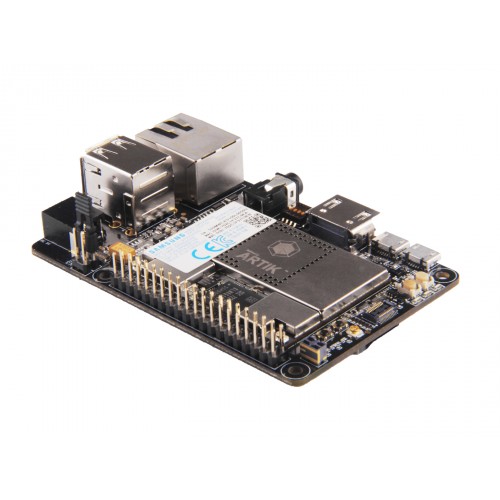

What is Samsung ARTIK™?
Samsung ARTIK™ is a pre-integrated IoT platform that combines enterprise-grade modules, cloud services, and end-to-end security. It enables rapid development of secure and scalable IoT solutions, including hardware modules, cloud integration, and device-to-cloud security.
Features
- Powered by the Samsung ARTIK™ IoT platform.
- Based on ARTIK 530s 1GB SoM with a Quad Core Cortex® A9 processor @ 1.2 GHz.
- Includes 40-pin GPIO and accessory interface for expanded I/O support.
- Supports Micro SD, Ethernet 10/100/1000, Wi-Fi 802.11 a/b/g/n, Bluetooth BLE 4.2, ZigBee, and Thread.
- Full HDMI, MIPI camera interface, and multimedia support.
Note
- To boot the board, connect USB or 5V DC power (at least 2A), then press the power button. The LED will turn ON.
- For auto-booting, solder as instructed in the "Guideline of auto-booting for Eagleye 530s.pdf".
Technical Details
- Dimensions: 87mm x 58.5mm x 20mm
- Weight: 50g
- Battery: Not included
- CPU: Quad Core ARM Cortex A9 @ 1.2GHz
- GPU: 3D Graphics Accelerator
- DRAM: 1GB DDR3
- Flash: 4GB eMMC
- WLAN: IEEE802.11 a/b/g/n Dual Band (2.4G/5G)
- Bluetooth: 4.2 (BLE + Classic)
- ZigBee/Thread: IEEE802.15.4
- Ethernet: 1 x 1000Base-T MAC
- USB: 2 x USB 2.0 Type-A
- Power: 1 x DC 5V input
- Audio: 1 x Headphone Jack
- Display: 1 x Full-size HDMI port
- Micro USB OTG: 1 x Type-B
- Micro USB UART: 1 x Type-B (Power Supply)
- GPIO: 1 x 2x20 pin header (2.54mm pitch)
- Camera: 1 x MIPI CSI port
- Storage: 1 x SD card slot
