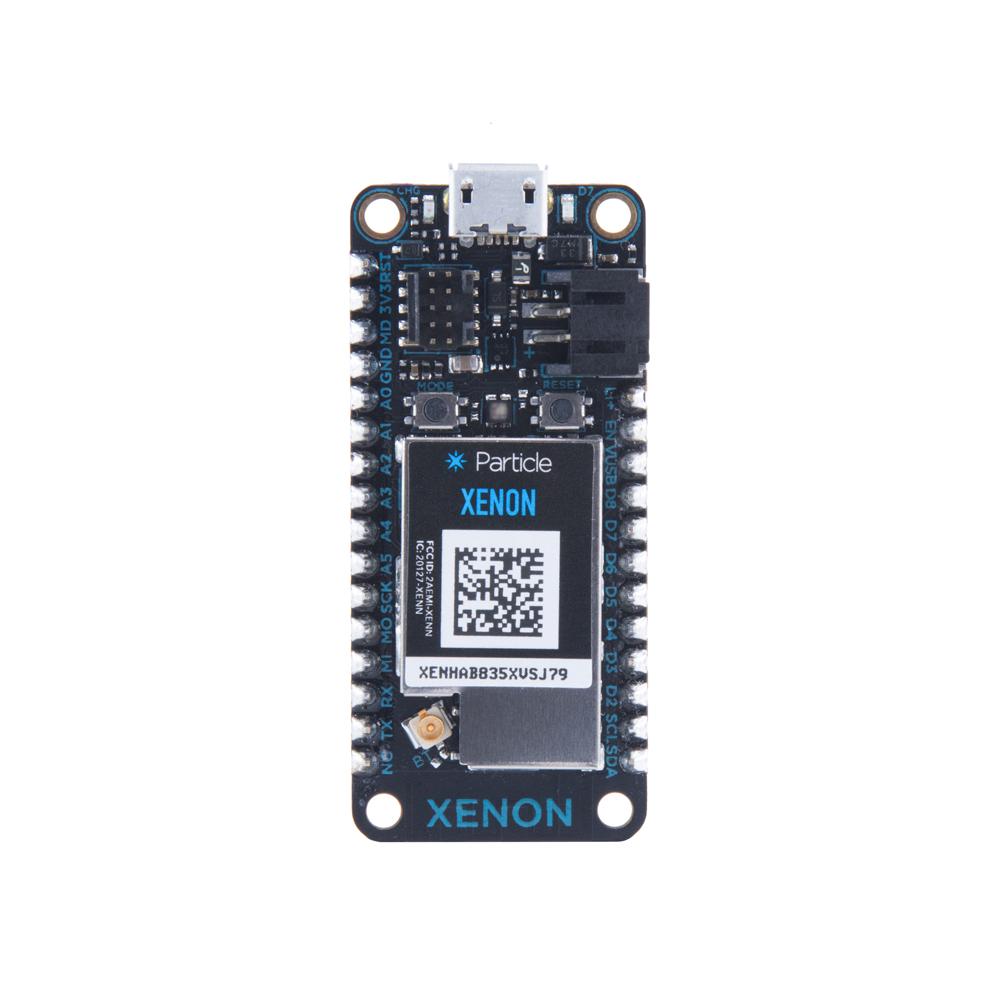

Particle Xenon IoT Development Kit (Bluetooth, NFC, Mesh)

Particle Xenon IoT Development Kit (Bluetooth, NFC, Mesh)

The Particle Xenon is a cost-effective, mesh-enabled development board designed specifically for IoT applications. Powered by the Nordic nRF52840 SoC, it combines the performance of an ARM Cortex-M4 processor with advanced features like OpenThread mesh networking, Bluetooth 5, NFC, and multiple GPIOs. This makes the Xenon ideal for connected projects, whether used as a standalone endpoint or a repeater in a Particle Mesh network.

Package Includes:

  • 1 x Xenon IoT Development Board
  • 1 x Mini Breadboard
  • 1 x USB Cable
  • 2 x 220Ω Resistors
  • 1 x Red LED
  • 1 x Photodiode

199.00 AED 199.00 AED Tax Included
199.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Particle Kits and Assets
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Designed with the popular Feather form factor, the Xenon is compatible with Feather Shields. It includes a JST connector for Li-Po batteries with integrated USB charging, making it suitable for portable applications. The board also features an RGB status LED, a JTAG (SWD) connector for debugging, and an onboard PCB antenna.

Features

  • Processor: Nordic Semiconductor nRF52840 SoC (ARM Cortex-M4F 32-bit processor @ 64MHz, 1MB flash, 256KB RAM)
  • Networking: OpenThread mesh networking (IEEE 802.15.4), Bluetooth 5 (2Mbps, 1Mbps, 500Kbps, 125Kbps), NFC-A tag support
  • Security: ARM TrustZone CryptoCell-310, DSP instructions, HW accelerated FPU
  • I/O: 20 mixed signal GPIOs (6x Analog, 8x PWM), UART, I2C, SPI
  • Power: Integrated Li-Po charging with JST connector, on-board 2MB SPI flash
  • Connectivity: On-board PCB antenna, u.FL connectors for external antennas
  • User Interface: RGB status LED, Reset and Mode buttons
  • Certification: FCC, CE, IC certified, RoHS compliant
  • Physical Dimensions: Feather footprint compatible

Specifications

  • ARM Cortex-M4F @64MHz
  • 1MB flash, 256KB RAM
  • IEEE 802.15.4-2006: 250 Kbps
  • Bluetooth 5: 2 Mbps, 1 Mbps, 500 Kbps, 125 Kbps
  • +8 dBm TX power (down to -20 dBm in 4 dB steps)
  • NFC-A tag
  • Micro USB 2.0 full speed (12 Mbps)
  • JTAG (SWD) Connector
  • RGB status LED
  • U.FL connector for external antenna
  • Dimensions: 50.8 x 22.8 x 15.3 mm
  • Weight: 7.3g

Pinout Diagram

Xenon Pinout

Pin Descriptions

Pin Description
Li+ Internally connected to the positive terminal of the LiPo battery connector.
VUSB Internally connected to the USB (+ve) supply.
3V3 Output of the on-board 3.3V regulator.
GND System ground pin.
EN Device enable pin. Connect to GND to disable.
RST Active-low system reset input.
MD Connected to MODE button (active-low).
RX/TX UART RX/TX, can also be used as GPIO.
SDA/SCL I2C data/clock pins, can also be used as GPIO.
MO/MI/SCK SPI interface pins, also usable as GPIO.
D2–D8 Generic PWM-capable GPIOs.
A0–A5 Analog inputs, also PWM-capable GPIOs.
D4–D8 Serial2 TX/RX/CTS/RTS or general GPIOs.

Applications

  • Smart Home Automation: Control and monitor home devices using mesh and Bluetooth.
  • Sensor Networks: For environmental, agricultural, or industrial monitoring.
  • Wearable Devices: Ideal for health and fitness monitoring wearables.
  • Industrial IoT: For machinery performance and predictive maintenance monitoring.
  • Portable IoT Devices: Great for asset tracking and field monitoring.
  • Building Automation: Automate lighting, HVAC, and security systems.
  • Remote Monitoring: For weather, wildlife, or remote environmental tracking.
  • Robotics: Ideal for collaborative or swarm robotics.
  • Smart Cities: For public infrastructure and urban IoT networks.
  • Prototyping: Great for rapid development using Feather Shields and sensors.







Features

  • LoRa SX1276 Wireless Module: Built around the SX1276 chip, the module employs LoRa technology, allowing for long-range data transmission and excellent penetration capabilities.
  • Configurable Output Power: The module's output power can be adjusted from +13 to +20 dBm (up to 100 mW) through software settings, providing flexibility in balancing communication distance and power consumption.
  • Low Power Consumption: During transmission, power consumption ranges from 50mA (+13 dBm) to 150mA (+20dBm), while in listening mode, it requires approximately 30mA, making it energy-efficient for battery-operated applications.
  • AES-128 Encryption Support: The module offers AES-128 encryption, ensuring secure and private data transmission, making it suitable for applications that require data confidentiality.
  • Multipoint Network Capabilities: It supports multipoint networks, allowing the establishment of individual nodes within the network for seamless and efficient communication.
  • Wide Power Supply Range: The module can be powered with a voltage range from 3V to 5V, making it compatible with various power sources and microcontrollers.

NOTE: It is important to solder a 16cm length of cable to the antenna pin before using it since not connecting any antenna can damage it. Optionally, the board has pads to solder an SMA connector with antenna thread.

Specifications

  • LoRa SX1276 wireless module with SPI interface (900 MHz)
  • Output power: +13 to +20 dBm up to 100 mW configurable by software
  • Consumption: 50mA (+13 dBm) to 150mA (+20dBm) in transmission, approx 30mA in listening
  • Supports AES-128 encryption
  • Supports multipoint networks with individual nodes
  • Power: 3 to 5V
