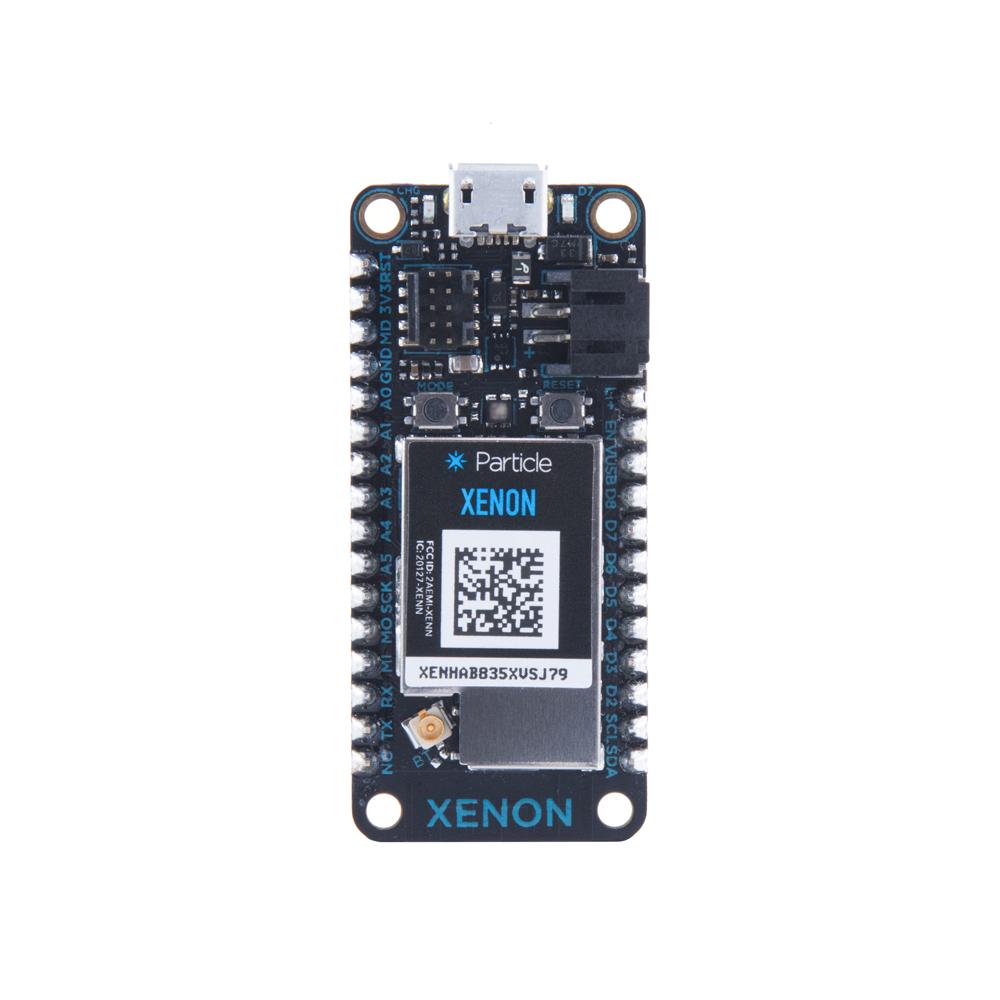

Particle Xenon IoT Development Kit (Bluetooth, NFC, Mesh)

Particle Xenon IoT Development Kit (Bluetooth, NFC, Mesh)

The Particle Xenon is a cost-effective, mesh-enabled development board designed specifically for IoT applications. Powered by the Nordic nRF52840 SoC, it combines the performance of an ARM Cortex-M4 processor with advanced features like OpenThread mesh networking, Bluetooth 5, NFC, and multiple GPIOs. This makes the Xenon ideal for connected projects, whether used as a standalone endpoint or a repeater in a Particle Mesh network.

Package Includes:

  • 1 x Xenon IoT Development Board
  • 1 x Mini Breadboard
  • 1 x USB Cable
  • 2 x 220Ω Resistors
  • 1 x Red LED
  • 1 x Photodiode

199.00 AED 199.00 AED Tax Included
199.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Particle Kits and Assets
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Designed with the popular Feather form factor, the Xenon is compatible with Feather Shields. It includes a JST connector for Li-Po batteries with integrated USB charging, making it suitable for portable applications. The board also features an RGB status LED, a JTAG (SWD) connector for debugging, and an onboard PCB antenna.

Features

  • Processor: Nordic Semiconductor nRF52840 SoC (ARM Cortex-M4F 32-bit processor @ 64MHz, 1MB flash, 256KB RAM)
  • Networking: OpenThread mesh networking (IEEE 802.15.4), Bluetooth 5 (2Mbps, 1Mbps, 500Kbps, 125Kbps), NFC-A tag support
  • Security: ARM TrustZone CryptoCell-310, DSP instructions, HW accelerated FPU
  • I/O: 20 mixed signal GPIOs (6x Analog, 8x PWM), UART, I2C, SPI
  • Power: Integrated Li-Po charging with JST connector, on-board 2MB SPI flash
  • Connectivity: On-board PCB antenna, u.FL connectors for external antennas
  • User Interface: RGB status LED, Reset and Mode buttons
  • Certification: FCC, CE, IC certified, RoHS compliant
  • Physical Dimensions: Feather footprint compatible

Specifications

  • ARM Cortex-M4F @64MHz
  • 1MB flash, 256KB RAM
  • IEEE 802.15.4-2006: 250 Kbps
  • Bluetooth 5: 2 Mbps, 1 Mbps, 500 Kbps, 125 Kbps
  • +8 dBm TX power (down to -20 dBm in 4 dB steps)
  • NFC-A tag
  • Micro USB 2.0 full speed (12 Mbps)
  • JTAG (SWD) Connector
  • RGB status LED
  • U.FL connector for external antenna
  • Dimensions: 50.8 x 22.8 x 15.3 mm
  • Weight: 7.3g

Pinout Diagram

Xenon Pinout

Pin Descriptions

Pin Description
Li+ Internally connected to the positive terminal of the LiPo battery connector.
VUSB Internally connected to the USB (+ve) supply.
3V3 Output of the on-board 3.3V regulator.
GND System ground pin.
EN Device enable pin. Connect to GND to disable.
RST Active-low system reset input.
MD Connected to MODE button (active-low).
RX/TX UART RX/TX, can also be used as GPIO.
SDA/SCL I2C data/clock pins, can also be used as GPIO.
MO/MI/SCK SPI interface pins, also usable as GPIO.
D2–D8 Generic PWM-capable GPIOs.
A0–A5 Analog inputs, also PWM-capable GPIOs.
D4–D8 Serial2 TX/RX/CTS/RTS or general GPIOs.

Applications

  • Smart Home Automation: Control and monitor home devices using mesh and Bluetooth.
  • Sensor Networks: For environmental, agricultural, or industrial monitoring.
  • Wearable Devices: Ideal for health and fitness monitoring wearables.
  • Industrial IoT: For machinery performance and predictive maintenance monitoring.
  • Portable IoT Devices: Great for asset tracking and field monitoring.
  • Building Automation: Automate lighting, HVAC, and security systems.
  • Remote Monitoring: For weather, wildlife, or remote environmental tracking.
  • Robotics: Ideal for collaborative or swarm robotics.
  • Smart Cities: For public infrastructure and urban IoT networks.
  • Prototyping: Great for rapid development using Feather Shields and sensors.
