LIDAR RPLIDAR - 360 Degree Laser Scanner Development Kit (Seeed)

LIDAR RPLIDAR - 360 Degree Laser Scanner Development Kit (Seeed)

The RPLIDAR A1M1 is a cost-effective 360-degree 2D laser scanner developed by RoboPeak, designed for mapping, localization, and environment modeling. With a scanning range of up to 6 meters, it provides high-resolution 2D point cloud data across a 360-degree field. It operates at a default scanning frequency of 5.5 Hz, sampling 360 points per rotation, and can be configured to reach 10 Hz. Built on laser triangulation technology, the RPLIDAR performs well in indoor and shaded outdoor environments.

It comprises a range scanner and a motor system, which starts rotating upon powering up, allowing clockwise scanning. The data is accessible via UART or USB interfaces. A standout feature is its adaptive system that adjusts scanning frequency based on motor speed. The laser scanner emits modulated infrared signals, which are processed by an embedded DSP to calculate distance and angle values. With over 2000 measurements per second, it’s ideal for real-time environmental analysis.

Package Includes

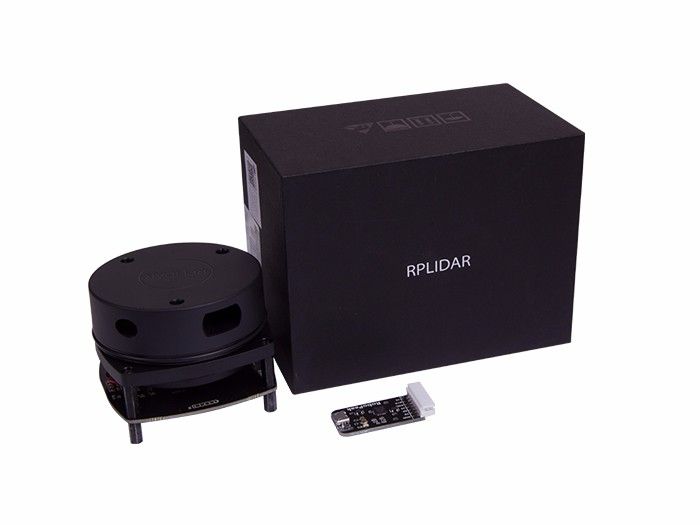

  • 1 x RPLIDAR A1 (with embedded PWM motor driver)
  • 1 x USB Adapter
  • 1 x RPLIDAR A1 Communication Cable

Note: Micro-USB cable not included.

699.00 AED 699.00 AED Tax Included
699.00 AED Tax Included

Not Available For Sale

This combination does not exist.

LIDAR
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • 360-Degree Scanning: Enables comprehensive environment mapping and localization.
  • Distance Range: 0.2 to 6 meters.
  • High Resolution: Distance resolution is less than 1% of measured distance.
  • Fast Scanning Rate: Up to 10 Hz.
  • Adaptive Communication: Supports 3.3V-TTL UART, USB optional.
  • Low Power Consumption: Ideal for battery-powered projects.
  • Infrared Laser Technology: Reliable in variable lighting.
  • Easy Integration: Compatible with robotics and automation systems.
  • Lightweight Design: Easy to mount and embed.
  • Robust Performance: Works reliably indoors and in shaded outdoor spaces.

Specifications

Measurement Performance (Model A1M1)

Item Unit Min Typical Max Comments
Distance Range Meter (m) TBD 0.2 6 For white objects
Angular Range Degree (°) n/a 0–360 n/a Full scan
Distance Resolution mm n/a <0.5 n/a <1% of distance
Angular Resolution Degree (°) n/a ≤1 n/a At 5.5 Hz
Sample Duration ms n/a 0.5 n/a
Sample Frequency Hz n/a ≥2000 2010
Scan Rate Hz 1 5.5 10 Typical @ 360 samples

Optical Specifications (Model A1M1)

Item Unit Min Typical Max Comments
Laser Wavelength nm 775 785 795 Infrared
Laser Power mW TBD 3 5 Peak power
Pulse Length µs TBD 110 300

Communication Interface

Uses 3.3V-TTL UART. USB is optional.

Item Unit Min Typical Max Comments
Baud Rate bps - 115200 -
Working Mode - - 8N1 - 8 data, no parity, 1 stop
Output High Voltage V 2.9 - 3.3 Logic high
Output Low Voltage V - - 0.4 Logic low
Input High Voltage V 1.6 - 5.2 Logic high
Input Low Voltage V -0.3 - 1.17 Logic low

Power Supply and Consumption

Item Unit Min Typical Max Comments
Scanner Voltage V 3.6 5 6 Low ripple
Scanner Current mA TBD 40–130 200 Sleep/work modes
Motor Voltage V 3.6 5 6 Speed control
Motor Current mA TBD 100 TBD 5V input

Miscellaneous

Item Unit Min Typical Max Comments
Weight g - 170 - Module only
Temperature Range °C - 0–45 -

Pinout

The bottom socket follows the 5267-7A 2.5mm 7-pin specification. Cables use the 5264-7 connector.

Pin Signal Type Description Min Typical Max
P1 VMOTO Power Motor supply - 5V 9V
P2 MOTOCTL Input Motor enable/PWM 0V - VMOTO
P3 GND Power Motor ground 0V 0V -
P4 V5.0 Power Scanner supply 4.9V 5V 6V
P5 TX Output Serial output 0V - 5V
P6 RX Input Serial input 0V - 5V
P7 GND Power Scanner ground 0V 0V V5.0

Applications

  • Robot navigation and localization
  • Obstacle avoidance in smart toys
  • Environment scanning and 3D modeling
  • SLAM (Simultaneous Localization and Mapping)
