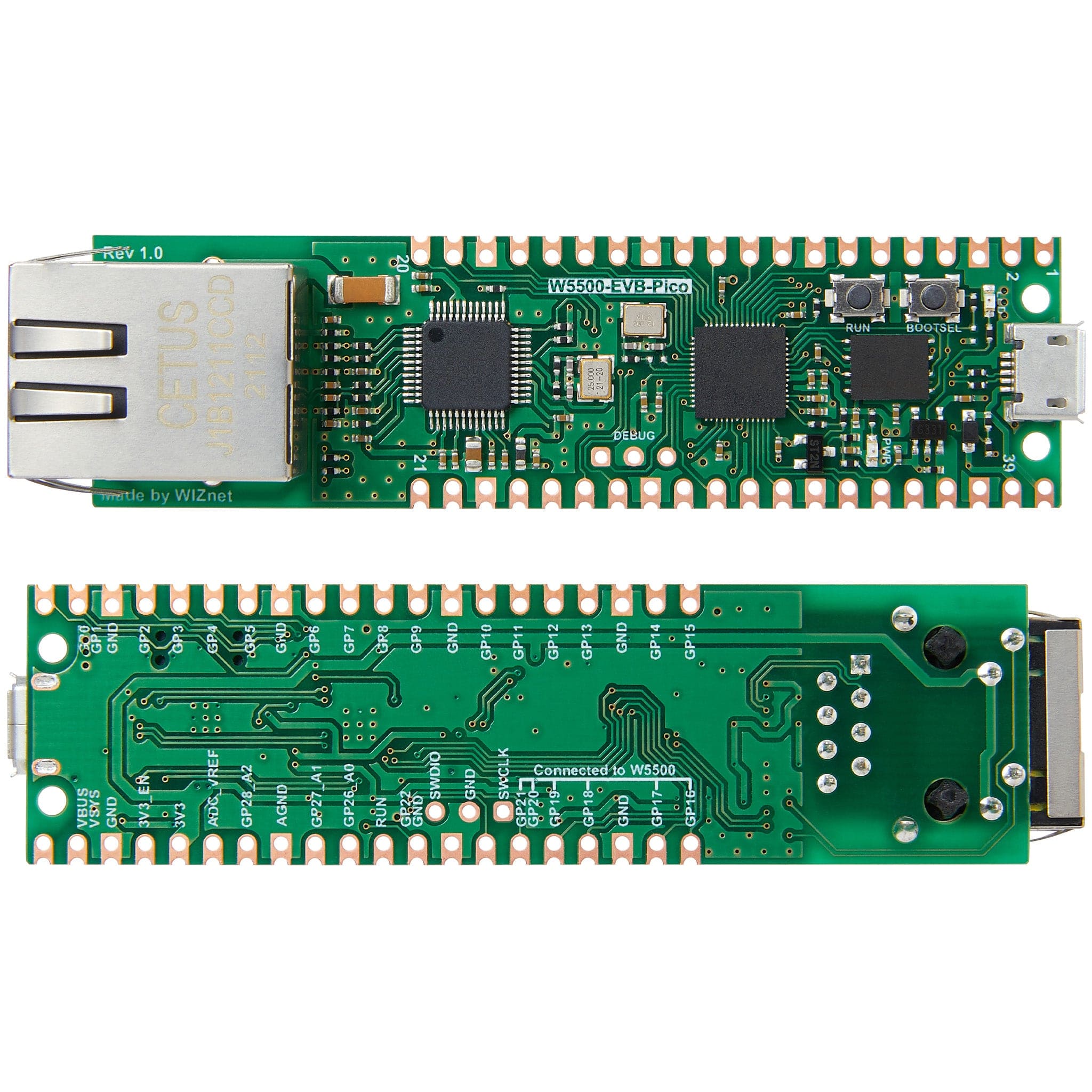

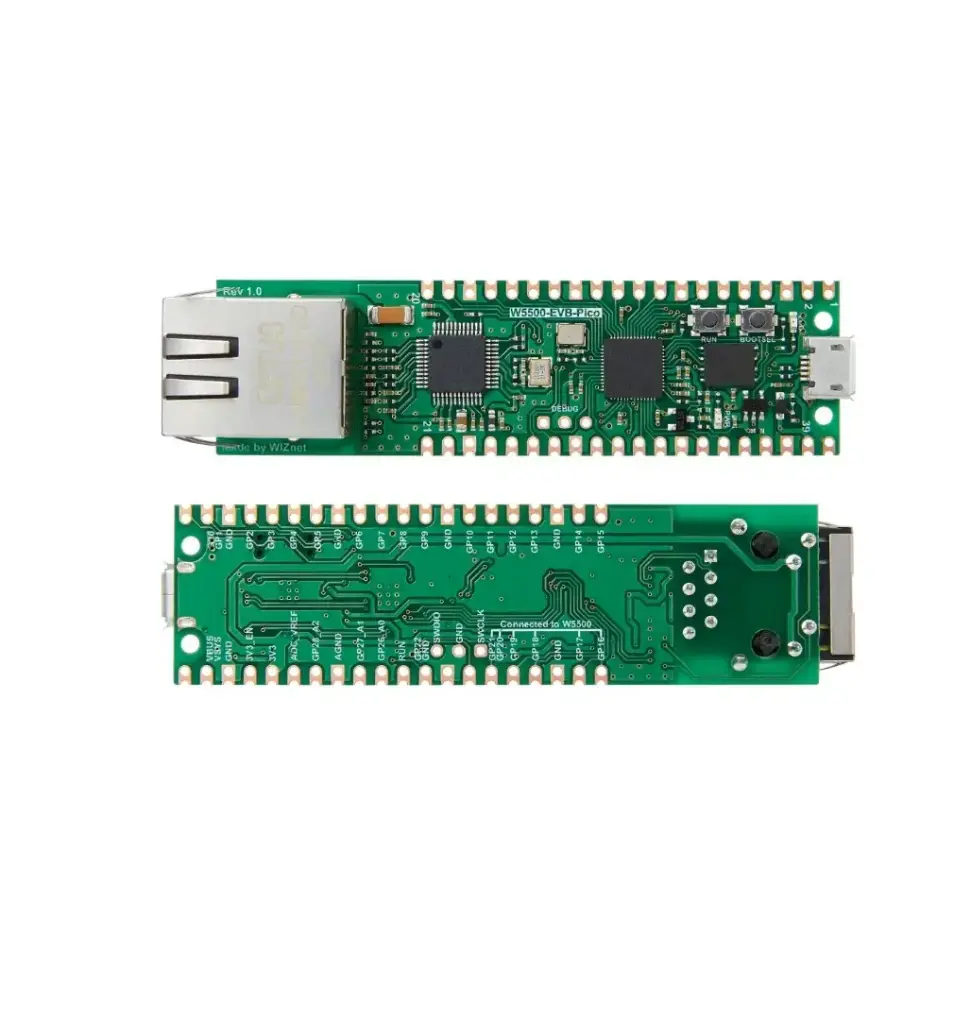

Raspberry PI Pico RP2040 Board with Ethernet (WIZnet W5500 EVB Pico)

Features:

• RP2040 Microcontroller with 2MB Flash: Powerful and ample storage.
• Dual-core Cortex M0+ at up to 133MHz: Supports multitasking.
• 264kB Multi-bank SRAM: High-performance memory access.
• Quad-SPI Flash with XIP: Executes code directly from external flash.
• 30 GPIO (4 ADC capable): Flexible interfacing options.
• 1.8-3.3V IO: Fixed at 3.3V for compatibility.
• 12-bit 500ksps ADC: Fast analog-to-digital conversion.
• 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM: Versatile connectivity.
• Timer, RTC, and Alarms: Precise timekeeping and control.
• 2 × PIO blocks (8 state machines): For custom protocol emulation.
• Supports SD card, VGA, etc.: Flexible I/O usage via PIO.
• W5500 Ethernet Controller: Reliable network connectivity.
• Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE: Full protocol stack.
• 8 Hardware SOCKETs: Multiple network connections.
• 32KB Internal TX/RX Buffers: Efficient network data handling.
• High-Speed SPI (MODE 0, 3): Fast data interface.
• Micro-USB B Port: Power and data connection.
• 40-pin DIP-Style PCB (21×51mm, 0.1″ pitch): Easy prototyping.
• 3-pin ARM SWD Port: Debugging and programming.
• 10/100 Ethernet PHY: Auto-negotiation and full/half duplex support.
• Built-in RJ45 Connector and LDO Regulator: Integrated networking and power.
• RUN and ROOTSEL Buttons: For reset and boot selection.

Specifications:

• Microcontroller: RP2040 (Dual-core Cortex M0+ @ 133MHz)
• Flash: 2MB
• SRAM: 264KB
• GPIO: 30 pins (4 ADC-capable)
• ADC: 12-bit, 500ksps
• Interfaces: 2 × UART, 2 × I2C, 2 × SPI, 16 × PWM
• Programmable IO: 2 blocks, 8 state machines
• Ethernet: W5500 (TCP/IP Stack, 8 SOCKETs)
• SPI: High-speed SPI (MODE 0, 3)
• Ethernet PHY: 10/100 Mbps with auto-negotiation
• Form Factor: 40-pin DIP (21×51mm, 0.1″ pitch)
• Power: Micro-USB B port

Pinout:

RP2040 to W5500 Connections:

Other Pins:
