Particle Debugger JTAG and SWD GDB
The Particle Debugger is a professional-grade debugging tool that allows users to program Particle Gen 3 hardware via JTAG and SWD interfaces using open-source tools such as GDB and OpenOCD. It also supports Gen 2 devices using jumper wires. The debugger follows the open-source CMSIS-DAP specification and utilizes DAPLink firmware developed by ARM, ensuring broad compatibility across Mac, Linux, and Windows platforms without needing extra drivers. Additionally, it serves as a USB to TTL serial port for flexible debugging options.

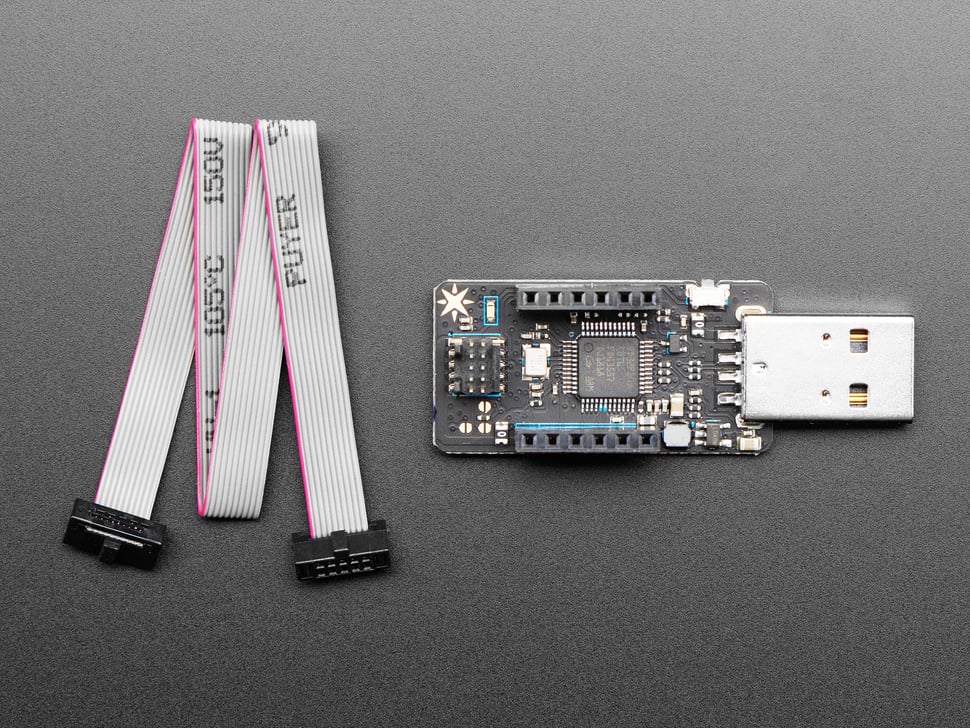

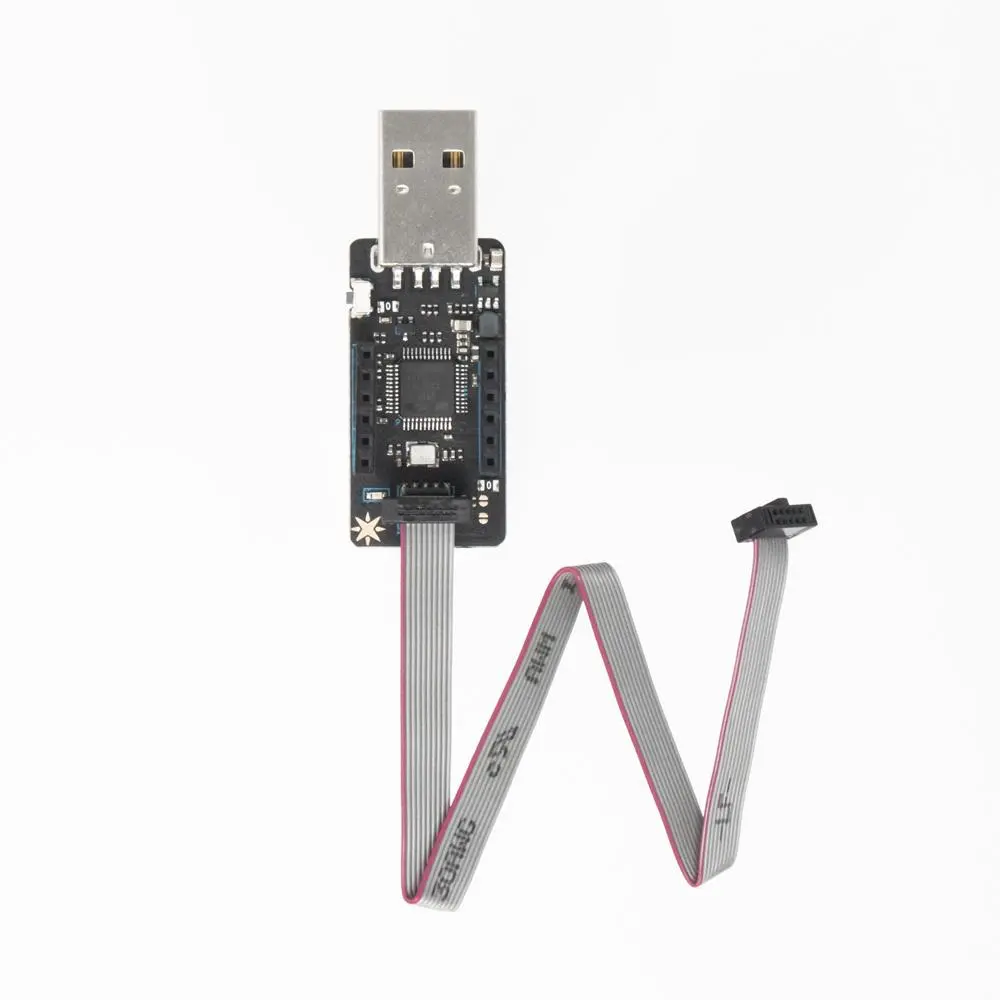

Package Includes:
- 1 x Particle Debugger
- 1 x SWD Cable
- 1 x Set of Debug Header Pins
Features:
- Compatible with Particle Gen 3 hardware; Gen 2 supported with jumper wires
- Supports JTAG and SWD interfaces for programming
- Utilizes open-source tools like GDB and OpenOCD
- Follows CMSIS-DAP specification with DAPLink firmware from ARM
- No additional drivers needed for Mac, Linux, or Windows 10+
- Functions as a USB to TTL serial port
- Includes JTAG ribbon cable for convenient connection
Specifications:
- CMSIS-DAP and DAPLink firmware support
- Compatible with Particle Gen 2 and Gen 3 hardware
- Interfaces: JTAG, SWD, USB to TTL serial
- Operating Systems: Mac, Linux, Windows (older versions may require drivers)
- Includes JTAG ribbon cable
Pinout:
| Left Header | Right Header |
|---|---|
| VDD | SWCLK |
| RTS | SWDIO |
| RX | NC |
| TX | NC |
| CTS | GND |
| GND | VUSB |
Applications:
- Firmware Development and Debugging: Enables reliable debugging and firmware development using JTAG and SWD interfaces.
- Embedded Systems Programming: Suitable for programming and testing embedded microcontrollers.
- Real-Time Debugging: Supports stepping through code in real time for performance optimization.
- Serial Communication: Offers USB to TTL serial communication for device monitoring.
- Open-Source Toolchain Integration: Works with open-source tools such as GDB and OpenOCD.
- Hardware Prototyping and Troubleshooting: Provides access to hardware-level pins and signals for testing.
- IoT Device Development: Ideal for developing and debugging connected IoT systems using Particle hardware.
