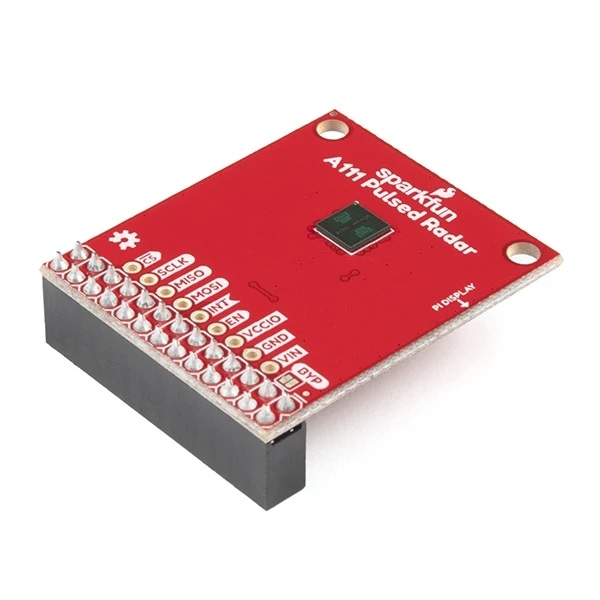

Distance Pulsed Radar Breakout - A111 For Raspberry Pi (SparkFun)

Distance Pulsed Radar Breakout - A111 For Raspberry Pi (SparkFun)

The SparkFun A111 Pulsed Radar Breakout is a high-precision sensor module that uses 60GHz pulsed coherent radar (PCR) technology for distance measurement, gesture, motion, speed, and material detection. Unlike traditional ultrasonic or infrared sensors, it provides millimeter-level accuracy up to 2 meters. The single-chip radar includes an integrated antenna and communicates via a high-speed SPI interface supporting clock speeds up to 50MHz, suitable for real-time applications.

Package Includes

  • 1 × SparkFun Pulsed Radar Breakout Board - A111
  • 1 × Female Header - 26-pin (2x13)
  • Note: Raspberry Pi board is not included.

320.00 AED 320.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



The breakout board features an onboard 1.8V regulator and voltage-level translation, allowing operation with voltage levels from 1.8V to 5V. It breaks out all SPI pins to 0.1-inch headers and Raspberry Pi-compatible 26-pin (2x13) headers, designed to sit directly on top of a Raspberry Pi.



Features

  • Pulsed Coherent Radar (PCR): Advanced radar technology for precise distance, gesture, and motion sensing.
  • Integrated Antenna: Simplifies setup for radar applications.
  • Distance Measurement: Measures up to 2 meters with millimeter accuracy.
  • Versatile Detection: Supports gesture recognition, motion detection, speed sensing, and material detection.
  • High-Speed SPI Interface: SPI communication up to 50MHz clock speeds for fast data transfer.
  • Voltage-Level Translation: Onboard 1.8V regulator with level translation for 1.8V to 5V operation.
  • Raspberry Pi Compatible: Designed for easy integration with Raspberry Pi using 26-pin headers.

Specifications

  • Radar Type: 60 GHz Pulsed Coherent Radar (PCR)
  • Measurement Distance: Up to 2 meters
  • Accuracy: Millimeter-level precision
  • Interface: SPI (supports up to 50MHz clock)
  • Integrated Antenna: Yes
  • Power Supply: Onboard 1.8V regulator and level translation (1.8V–5V)
  • Pins: All SPI pins broken out
  • Bypass Jumper: Included for power management

Pinout

Breakout Pin Raspberry Pi Pin Name Raspberry Pi Hardware Pin Number
CS SPI0 CS0 24
SCLK SPI0 SCLK 23
MISO SPI0 MISO 21
MOSI SPI0 MOSI 19
INT GPIO25 22
EN GPIO27 13
VCCIO 3.3V 1, 17
GND Ground 6, 14, 20, etc.
VIN 5V 2, 4

Applications

  • Distance sensing up to 2 meters
  • Gesture control for touchless interfaces
  • Motion tracking for security and automation
  • Speed detection of moving objects
  • Material detection via radar reflection
