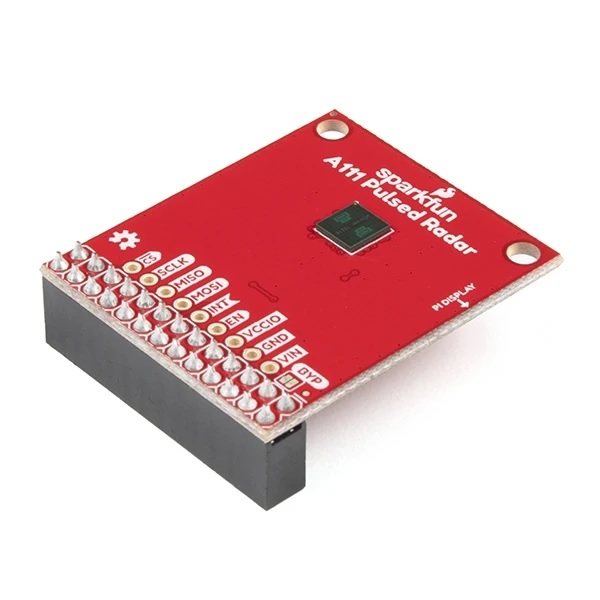

The breakout board features an onboard 1.8V regulator and voltage-level translation, allowing operation with voltage levels from 1.8V to 5V. It breaks out all SPI pins to 0.1-inch headers and Raspberry Pi-compatible 26-pin (2x13) headers, designed to sit directly on top of a Raspberry Pi.
Features
- Pulsed Coherent Radar (PCR): Advanced radar technology for precise distance, gesture, and motion sensing.
- Integrated Antenna: Simplifies setup for radar applications.
- Distance Measurement: Measures up to 2 meters with millimeter accuracy.
- Versatile Detection: Supports gesture recognition, motion detection, speed sensing, and material detection.
- High-Speed SPI Interface: SPI communication up to 50MHz clock speeds for fast data transfer.
- Voltage-Level Translation: Onboard 1.8V regulator with level translation for 1.8V to 5V operation.
- Raspberry Pi Compatible: Designed for easy integration with Raspberry Pi using 26-pin headers.
Specifications
- Radar Type: 60 GHz Pulsed Coherent Radar (PCR)
- Measurement Distance: Up to 2 meters
- Accuracy: Millimeter-level precision
- Interface: SPI (supports up to 50MHz clock)
- Integrated Antenna: Yes
- Power Supply: Onboard 1.8V regulator and level translation (1.8V–5V)
- Pins: All SPI pins broken out
- Bypass Jumper: Included for power management
Pinout
| Breakout Pin |
Raspberry Pi Pin Name |
Raspberry Pi Hardware Pin Number |
| CS |
SPI0 CS0 |
24 |
| SCLK |
SPI0 SCLK |
23 |
| MISO |
SPI0 MISO |
21 |
| MOSI |
SPI0 MOSI |
19 |
| INT |
GPIO25 |
22 |
| EN |
GPIO27 |
13 |
| VCCIO |
3.3V |
1, 17 |
| GND |
Ground |
6, 14, 20, etc. |
| VIN |
5V |
2, 4 |
Applications
- Distance sensing up to 2 meters
- Gesture control for touchless interfaces
- Motion tracking for security and automation
- Speed detection of moving objects
- Material detection via radar reflection
The breakout board features an onboard 1.8V regulator and voltage-level translation, allowing operation with voltage levels from 1.8V to 5V. It breaks out all SPI pins to 0.1-inch headers and Raspberry Pi-compatible 26-pin (2x13) headers, designed to sit directly on top of a Raspberry Pi.
Features
- Pulsed Coherent Radar (PCR): Advanced radar technology for precise distance, gesture, and motion sensing.
- Integrated Antenna: Simplifies setup for radar applications.
- Distance Measurement: Measures up to 2 meters with millimeter accuracy.
- Versatile Detection: Supports gesture recognition, motion detection, speed sensing, and material detection.
- High-Speed SPI Interface: SPI communication up to 50MHz clock speeds for fast data transfer.
- Voltage-Level Translation: Onboard 1.8V regulator with level translation for 1.8V to 5V operation.
- Raspberry Pi Compatible: Designed for easy integration with Raspberry Pi using 26-pin headers.
Specifications
- Radar Type: 60 GHz Pulsed Coherent Radar (PCR)
- Measurement Distance: Up to 2 meters
- Accuracy: Millimeter-level precision
- Interface: SPI (supports up to 50MHz clock)
- Integrated Antenna: Yes
- Power Supply: Onboard 1.8V regulator and level translation (1.8V–5V)
- Pins: All SPI pins broken out
- Bypass Jumper: Included for power management
Pinout
| Breakout Pin |
Raspberry Pi Pin Name |
Raspberry Pi Hardware Pin Number |
| CS |
SPI0 CS0 |
24 |
| SCLK |
SPI0 SCLK |
23 |
| MISO |
SPI0 MISO |
21 |
| MOSI |
SPI0 MOSI |
19 |
| INT |
GPIO25 |
22 |
| EN |
GPIO27 |
13 |
| VCCIO |
3.3V |
1, 17 |
| GND |
Ground |
6, 14, 20, etc. |
| VIN |
5V |
2, 4 |
Applications
- Distance sensing up to 2 meters
- Gesture control for touchless interfaces
- Motion tracking for security and automation
- Speed detection of moving objects
- Material detection via radar reflection
