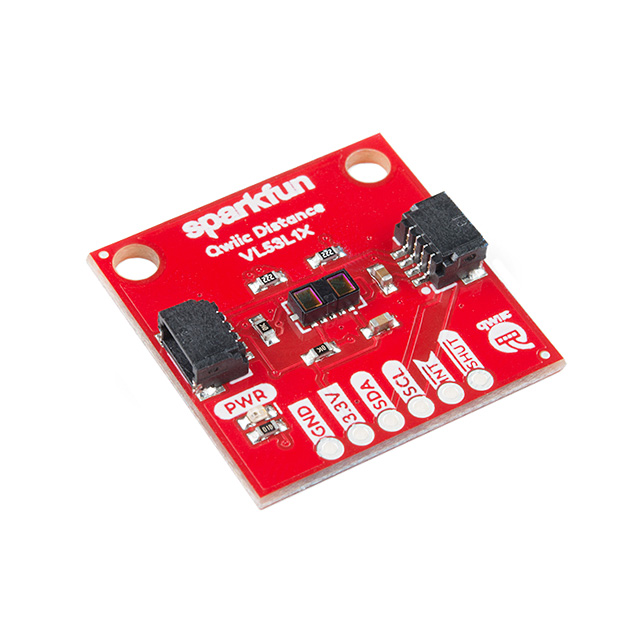

This breakout supports easy, solderless connections through SparkFun’s Qwiic system, and includes 0.1" spaced pins for breadboard compatibility. It offers a narrow adjustable field of view (15° to 27°) and a fast read rate of up to 50Hz, ideal for quick and accurate distance sensing. The sensor operates between 2.6V and 3.5V and requires removing the protective sticker before use to ensure accuracy.
Features
- Next-Generation ToF Sensor: VL53L1X for accurate distances up to 4 meters
- High Precision: Millimeter resolution with ±5mm typical accuracy
- Compact & Easy to Use: Qwiic solderless connection and breadboard pins
- Narrow Field of View: Adjustable 15°–27° for precise sensing
- Fast Read Rate: Up to 50Hz for real-time measurements
- Low Power: Operates at 20mW power consumption (10Hz read rate)
- Fixed I2C Address: 0x29; supports multiple sensors via Qwiic Mux
Specifications
- Operating Voltage: 2.6V – 3.5V
- Power Consumption: 20mW @ 10Hz
- Measurement Range: Approximately 40mm to 4000mm
- Resolution: ±1mm
- Light Source: Class 1 940nm VCSEL
- I2C Address: 0x29 (7-bit unshifted)
- Field of View: 15° to 27°
- Max Read Rate: 50Hz
Pinout
| Pin |
Description |
Direction |
| GND |
Ground |
In |
| 3.3V |
Power Supply |
In |
| SDA |
I2C Data |
In |
| SCL |
I2C Clock |
In |
| INT |
Interrupt (goes low when data ready) |
Out |
| SHUT |
Shutdown (pull low to enter shutdown mode) |
In |
Applications
- Proximity sensing in robotics and automation
- Object detection for drones, vehicles, and smart systems
- Range finding for cameras and motion-triggered devices
- Distance measurement in industrial and consumer electronics
