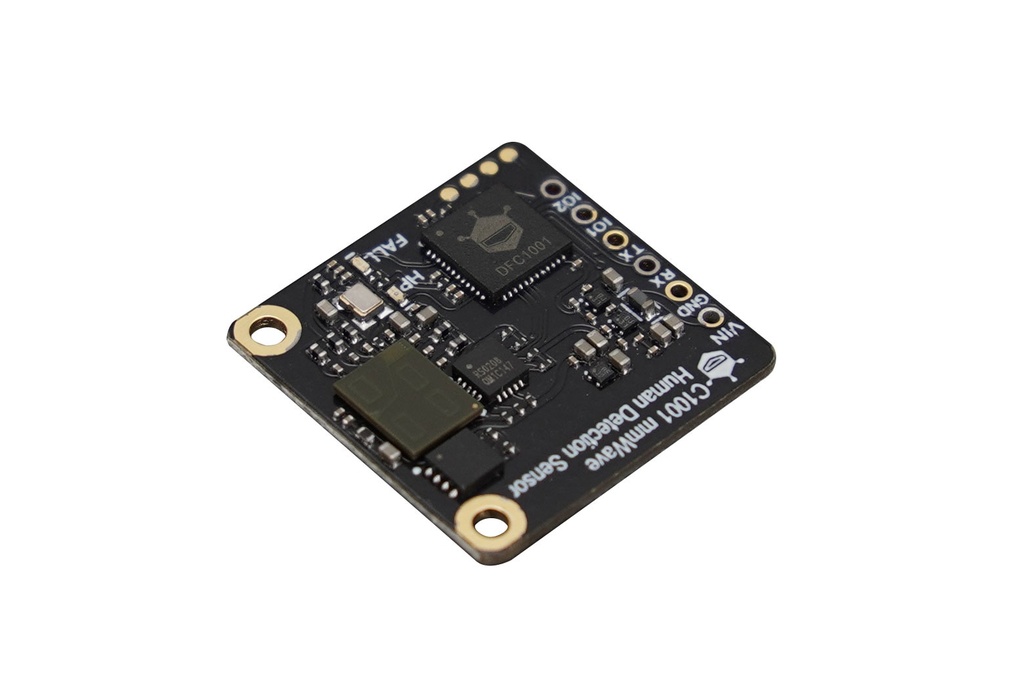

Microwave C1001 60GHz mmWave Indoor Fall Detection Sensor 11 Meters (Gravity DFRobot) - SEN0623
The C1001 mmWave Human Detection Sensor is a state-of-the-art 60GHz millimeter-wave radar sensor designed for advanced human detection applications. It surpasses traditional 24GHz systems by not only detecting presence, speed, and distance but also offering sophisticated features like fall detection and sleep monitoring. Utilizing a point cloud imaging algorithm, the C1001 accurately identifies human postures, providing vital insights into life signs and activity levels.
Package Includes
- 1 × C1001 mmWave Human Detection Sensor
Features:
- Integrated Fall Detection: Recognizes falls and immobility using posture recognition.
- Comprehensive Sleep Monitoring: Measures body movement, respiratory rate, and heart rate.
- Wide Detection Range: Up to 11 meters radius when mounted at 2.7 meters height.
- High Sensitivity: Detects both motion and stillness, outperforming PIR sensors.
- Easy Integration: Compatible with ESP32, microcontrollers, and Arduino UNO via Arduino IDE.
Specifications
- Operating Voltage: 5V
- Operating Current: ≤100mA
- Operating Frequency: 61–61.5GHz
- Transmission Power: 6dBm
- Max Detection Distance: 11m
- Detection Angle: 100° x 100°
- Sleep Detection Distance (Chest): 0.4m – 2.5m
- Breath/Heart Rate Detection Distance (Chest): 0.4m – 1.5m
- Breath Rate Range: 10–25 breaths/min
- Heart Rate Range: 60–100 bpm
- Operating Temperature: -20°C to 60°C
Applications
- Indoor Fall Detection Systems: Ideal for elderly care with alerts for falls and inactivity.
- Sleep Trackers: Analyzes sleep quality using movement, breathing, and heart rate data.
Important Disclaimer
This product is not a certified medical device and is not intended for diagnostic or therapeutic use. The manufacturer assumes no responsibility for any medical claims arising from its use. Users should exercise discretion when relying on the C1001 for health-related purposes.
Projects
- Testing: See Through with C1001 mmWave Sensor
Demonstrates detection through walls and various materials. - Review: C1001 with ESP32
Compares it to PIR sensors in bathrooms and living spaces, highlighting its motionless detection capabilities. - Project: Real-Time Presence Monitoring
Uses the C1001 with Beetle ESP32 C6 and Telegram for alerts in security systems.
Documents
- Product Wiki
- Dimension Diagram
- Interface Definition
- Installation Method
- Demonstration Routine
- Library (GitHub)
