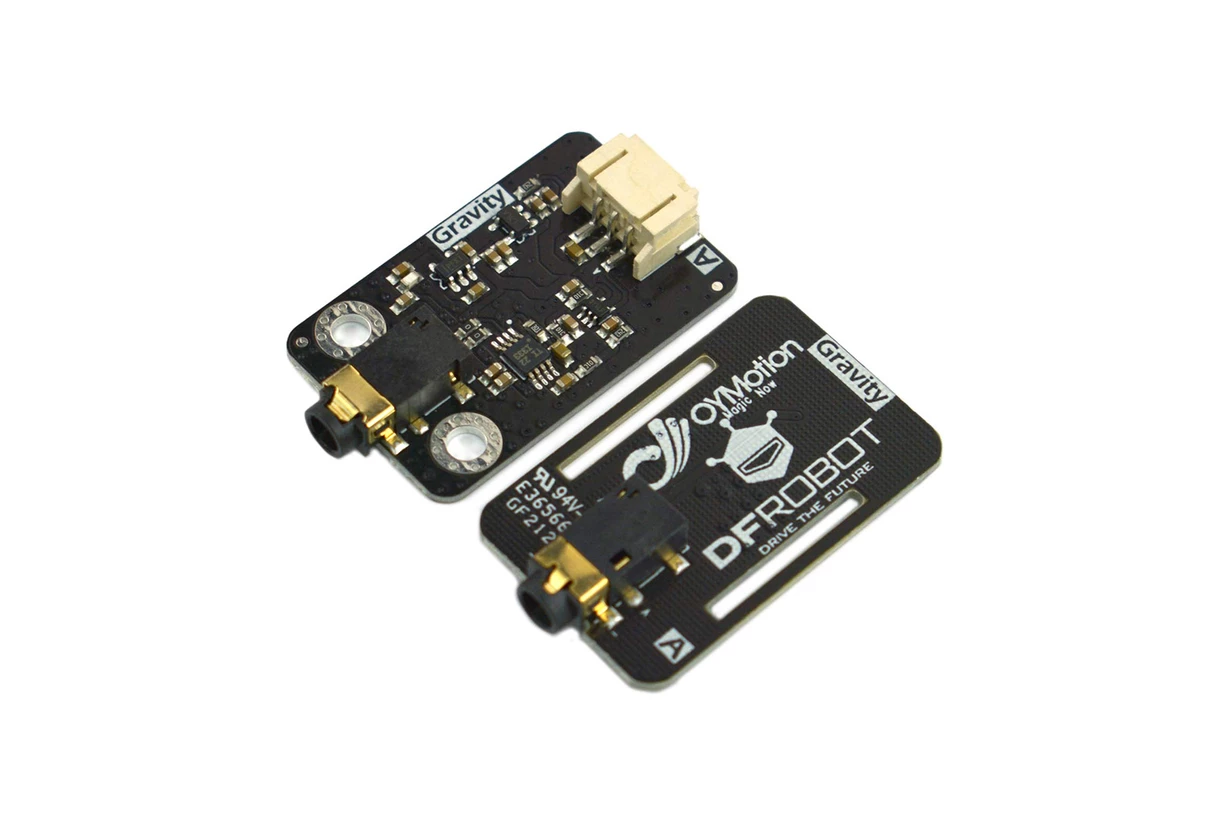

EMG Analog Sensor By OYMotion (Gravity DFRobot) - SEN0240

EMG Analog Sensor By OYMotion (Gravity DFRobot) - SEN0240

The EMG Sensor, a result of collaboration between DFRobot and OYMotion, is designed to capture surface electromyography (sEMG) signals, reflecting human muscle and neural activities with precision. This innovative sensor integrates sophisticated filtering and amplification circuits to enhance the accuracy of muscle activity detection. With a compact design and user-friendly interface, the EMG Sensor opens new avenues in fields ranging from biomedical research to human-computer interaction.

Package Includes

  • 1 x EMG Dry Electrode Board
  • 1 x Wrist Belt
  • 1 x Electrode Cable
  • 1 x EMG Signal Transmitter Board
  • 1 x Gravity Analog Cable (3-Pin)

320.00 AED 320.00 AED Tax Included
320.00 AED Tax Included

Not Available For Sale

This combination does not exist.

EMG Muscle Signal Sensor
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Metal Dry Electrode: Durable and easy to use, eliminating the need for conductive gel.
  • Differential Input: High common mode rejection ratio to minimize noise interference.
  • Low Power Consumption: Efficient energy use for prolonged operation.
  • Single Power Supply: Simplifies the setup process.

Specifications

Signal Transmitter Board

  • Supply Voltage: 3.3V – 5.5V
  • Operating Voltage: 3.0V
  • Detection Range: ±1.5mV
  • Electrode Connector: PJ-342
  • Module Connector: PH2.0-3P
  • Output Voltage: 0 – 3.0V
  • Operating Temperature: 0°C – 50°C
  • Size: 22mm x 35mm (0.87 x 1.38 inches)

Dry Electrode Board

  • Electrode Connector: PJ-342
  • Wire Length: 50cm (19.69 inches)
  • Plate Size: 22mm x 35mm (0.87 x 1.38 inches)
  • Weight: 36g

Pinout

EMG Board Pinout

Num Label Description
1 A Analog Signal Output (0~3.0V)
2 + Power Supply Anode (3.3~5.5V)
3 - Power Supply Cathode (0V)
4 PJ-342 Probe Wiring Connector

Applications

  • Biomedical Research: Ideal for studies on muscle behavior and neuromuscular conditions.
  • Human-Computer Interaction: Enables gesture recognition and control through muscle signals.
  • Robotics: Responsive control systems that react to human muscle activity.
  • Fitness and Rehabilitation: Monitor muscle engagement during workouts or therapy.
  • Prototyping and Development: Integrate muscle detection into innovative projects.

Projects

OYMotion EMG sensor for muscle signal reading and robotic control | editronikx

EMG Sensor Example Image
