Servo DF Metal Geared 15Kg Standard 180 DSS-M15 (DFRobot) - SER0019

Servo DF Metal Geared 15Kg Standard 180 DSS-M15 (DFRobot) - SER0019

The DSS-M15 is a robust, heavy-duty metal gear servo, designed for tasks requiring high torque and durability. With a wide 180° rotation angle and the ability to operate on voltages between 4.8V and 7.2V, this servo is built to handle demanding tasks such as high-load robotic movement. Capable of delivering over 15 kg of torque and tested for durability over long periods, it ensures reliable performance with minimal heat or vibration. For added functionality, it includes a carefully selected set of steering parts, such as an aluminum alloy wheel and a long bracket, which enhance its strength and stability.

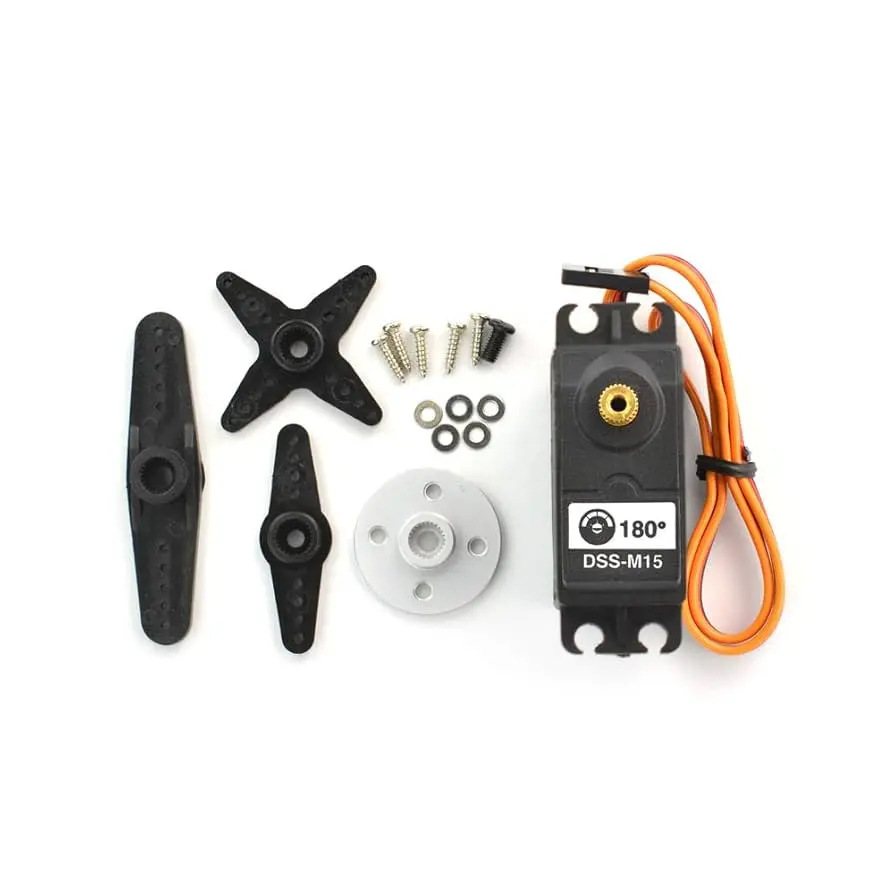

Package Includes:

  • 1 x DSS-M15 Servo
  • 1 x Metal round servo horn
  • 1 x X servo horn
  • 1 x Long straight servo horn
  • 1 x Straight servo horn
  • 5 x M2*8 self-tapping screw
  • 5 x M2 screw washer
  • 1 x M3*6 screw

89.00 AED 89.00 AED Tax Included
89.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Metal High Torque Servo
Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features:

  • High Torque Performance: Provides over 15kg·cm of torque at 7.2V, ideal for heavy-duty applications.
  • Metal Gears: Built with metal gears for long-lasting durability in tough conditions.
  • Rotation Range: 180° rotation angle for flexible movement and control.
  • Enhanced Stability: Operates with low vibration and heat even under high torque loads.
  • Accessory Kit: Includes aluminum alloy wheel and long bracket for improved control and mounting.
  • Power Range: Operates between 4.8V and 7.2V, compatible with various systems.
  • Arduino Compatible: Control frequency range of 50–330Hz allows easy integration with Arduino and other controllers.

Specifications:

Electrical Specifications:

  • Operating Voltage Range: 4.8V - 7.2V
  • Operating Speed (no load):
    • 0.18 sec/60° @ 6V
    • 0.16 sec/60° @ 7.2V
  • Quiescent Current: 80mA @ 6V / 100mA @ 7.2V
  • Stall Torque:
    • 13.5 kg·cm @ 6V
    • 15 kg·cm @ 7.2V
  • Stall Current: 1.8A @ 6V / 2A @ 7.2V
  • Standby Mode Current: 4mA @ 6V / 5mA @ 7.2V

Mechanical Specifications:

  • Gear Material: Metal
  • Limited Angle: 180°
  • Connector Wire Gauge: 28 PVC
  • Wire Length: 320mm
  • Horn Gear Spline: 25T, φ5.80mm
  • Gear Ratio: 310:1
  • Dimensions: 54.5mm x 20mm x 47.5mm

Control Specifications:

  • Control Signal: RC PWM
  • Pulse Width Range: 500 - 2500µs
  • Neutral Position Signal: 1500µs
  • Clockwise Rotation: <1500µs
  • Operating Frequency: 50 - 330Hz (Arduino compatible)
