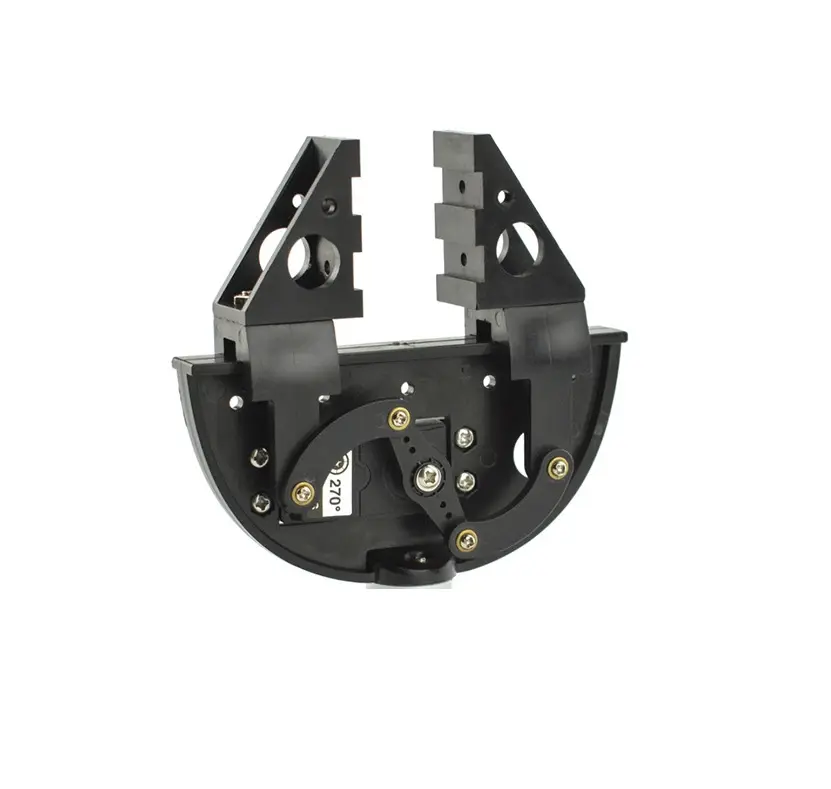

Robot Gripper 2 DOF (DFRobot) - FIT0300
This 2 Degrees of Freedom (DOF) robot gripper is designed for versatile applications in robotics, allowing precise control over gripping and steering movements. It can be equipped with two servos: one for opening and closing the gripper, and another for controlling the rotational or steering motion.
Package Includes:
- 1 x Robot Gripper
- 1 x Screw Kit
Features:
- Velocity Range: Capable of gripping objects with a range of 0 to 54 mm (0 to 2.13 inches), making it suitable for various object sizes.
- Lightweight Design: Weighs approximately 45 g, allowing easy integration into robotic systems without adding significant weight.
- Compatible Servos: Designed to accommodate a wide range of standard servos, including:
- Hitec 422
- Hitec 475
- DSS-P05 Standard Servo
- DF Metal Geared 15Kg Standard Servo
Specifications:
- Clamp Range: 0–54 mm (0–2.13 inches)
- Overall Size: 105 x 100 x 30 mm (4.13 x 3.94 x 1.18 inches)
- Weight: ~45 g
Visual Reference:
Features:
- Velocity Range: Capable of gripping objects with a range of 0 to 54 mm (0 to 2.13 inches), making it suitable for various object sizes.
- Lightweight Design: Weighs approximately 45 g, allowing easy integration into robotic systems without adding significant weight.
- Compatible Servos: Designed to accommodate a wide range of standard servos, including:
- Hitec 422
- Hitec 475
- DSS-P05 Standard Servo
- DF Metal Geared 15Kg Standard Servo
Specifications:
- Clamp Range: 0–54 mm (0–2.13 inches)
- Overall Size: 105 x 100 x 30 mm (4.13 x 3.94 x 1.18 inches)
- Weight: ~45 g
