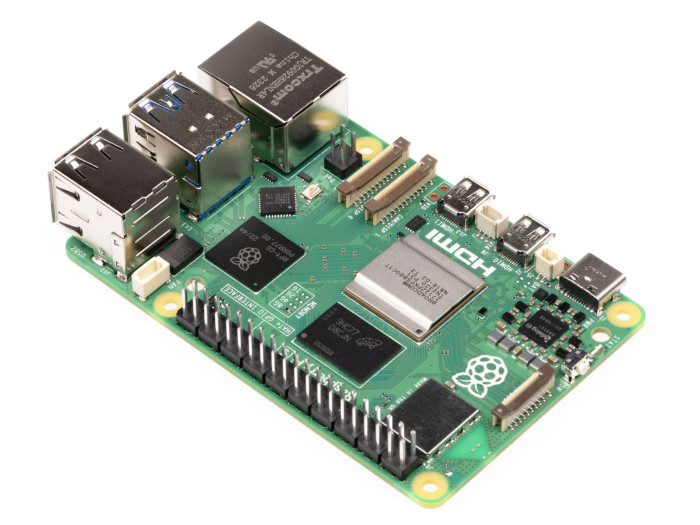

Raspberry Pi 5 (2 GB RAM)

The Raspberry Pi 5 is the flagship model in the Raspberry Pi series, offering major upgrades over its predecessor, the Raspberry Pi 4. This version, equipped with 2GB RAM, delivers 2-3x increased CPU performance, improved multimedia support, and enhanced connectivity. With integration of the RP1 I/O controller, and support for interfaces like USB 3.0 and PCIe, it's ideal for power users, makers, and embedded systems.

Package Includes:

1 × Raspberry Pi 5 (2GB RAM)

Raspberry Pi 5 Board

330.00 AED (Tax included)

Add to cart

Add to wishlist

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features:

High-Performance Quad-Core Processor: ARM Cortex-A76 for faster multitasking, media processing, and computation-heavy tasks.
2GB LPDDR4 RAM: Improved memory management for smoother application performance.
Advanced Networking: Gigabit Ethernet, dual-band Wi-Fi (2.4GHz/5GHz), Bluetooth 5.0 with BLE.
USB 3.0 Support: Two high-speed USB 3.0 ports and two USB 2.0 ports for versatile connectivity.
Dual 4K Display Output: Two Micro HDMI ports support 4Kp60 dual displays.
MicroSD Storage: Expandable storage via MicroSD card slot.
40-pin GPIO Header: Standard header for custom electronics projects.
Camera & Display Interfaces: Two 4-lane MIPI CSI/DSI interfaces for camera and screen connection.
PoE Support: Compatible with PoE HATs for single-cable power and networking.
USB Type-C Power: 5V/5A power input with improved stability.
Real-Time Clock (RTC): RTC support with external battery backup for timekeeping while powered off.
PCIe 2.0 Interface: x1 PCIe interface for high-speed expansion.

Raspberry Pi 5 Front View

Specifications:

Category	Specification
Processor	Broadcom BCM2712, Quad-core ARM Cortex-A76 @ 2.4GHz, 512KB L2 + 2MB L3 cache
Memory (RAM)	2GB LPDDR4
Networking	Gigabit Ethernet, Dual-band Wi-Fi 802.11ac, Bluetooth 5.0 (BLE)
USB Ports	2 × USB 3.0, 2 × USB 2.0
Display	2 × Micro HDMI (up to 4Kp60)
Storage	MicroSD card slot
Interfaces	40-pin GPIO, 2 × 4-lane MIPI DSI/CSI, PCIe 2.0 x1, UART header
Power & Control	USB Type-C (5V/5A), Power button, RTC via external battery

How to Use:

Preparation: Get an SD card and card reader.
Download OS: Download Raspberry Pi OS from the official site.
Format SD Card: Use SDFormatter to clean the card.
Burn OS Image: Use Win32DiskImager to write the OS to the SD card.
Boot Device: Insert the SD card into the Pi, plug in 5V/5A Type-C power, and boot.
Connect Peripherals: Attach keyboard, mouse, and display.

UART Login:

The Raspberry Pi 5 includes a dedicated UART connector with support up to 921,600bps. It's useful for early boot diagnostics and post-boot Linux console access. Configure via EEPROM to enable UART debugging.

UART Debug Connector

RTC (Real-Time Clock):

The board supports external RTC functionality with battery backup. Connect via the J5 (BAT) header.

Useful Commands:

sudo hwclock -w – Sync system clock to RTC
sudo hwclock -s – Sync RTC to system clock
sudo hwclock --set --date="9/8/2023 16:45:05" – Set RTC manually
sudo hwclock -r – Read RTC time
sudo hwclock --verbose – Detailed RTC info

Auto Wakeup Configuration:

sudo -E rpi-eeprom-config --edit
# Add:
POWER_OFF_ON_HALT=1
WAKE_ON_GPIO=0

To test wake-up timer (10 mins):

echo +600 | sudo tee /sys/class/rtc/rtc0/wakealarm
sudo halt

RTC Battery Charging Setup:

Enable trickle charging (if supported) by editing config:

sudo nano /boot/firmware/config.txt
# Add:
dtparam=rtc_bbat_vchg=3000000

Dimensions:

Raspberry Pi 5 Dimensions
