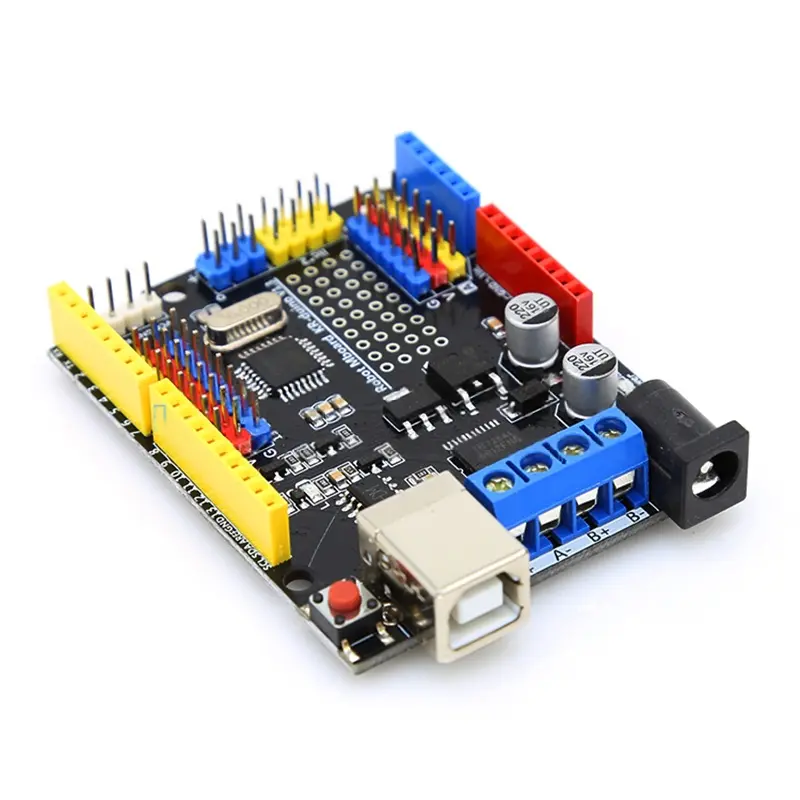

Arduino ATmega328P-PU Development Board with Dual DC Motor Driver

Arduino ATmega328P-PU Development Board with Dual DC Motor Driver

This powerful development board is built around the ATmega328p-PU microcontroller and designed for robotics, automation, and motor control applications. With integrated motor driving capabilities, it can directly control two DC motors, making it an ideal choice for intelligent car projects and other motorized platforms. It offers numerous digital and analog I/O ports and is fully compatible with Arduino-based systems, making it flexible and expandable for a wide variety of electronics projects.

Package Includes

  • 1 × ATmega328p-PU Development Board with Integrated Motor Drive

92.00 AED 92.00 AED Tax Included
92.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Integrated Motor Drive: Capable of directly driving two DC motors, simplifying motor control setup for robotics projects.
  • Motor Interface: Uses digital ports 4 and 5 to control Motor B, and 6 and 7 to control Motor A.
  • Expansion Interfaces: Provides access to ports 2, 3, 8–13, and A0–A5, with VCC and GND adjacent to each port for easy wiring.
  • Genuine ATmega328p-PU: Ensures full compatibility with Arduino IDE and reliable operation.
  • Digital and Analog I/O: Includes 14 digital I/O ports (0–13) and 6 analog input ports (A0–A5).
  • PWM Support: PWM-capable ports (3, 5, 6, 9, 10, 11) allow advanced motor and signal control.
  • Flexible Power Options: Can be powered via USB (5V) or external DC input (7–12V).
  • On-Board Reset and Firmware Support: Includes a reset switch and ICSP interface for easy firmware updates.

Specifications

  • Microcontroller: ATmega328p-PU
  • Power Input: USB (5V) or DC port (7–12V)
  • Power Output: 5V and 3.3V
  • Dimensions: 75.0mm × 74.0mm × 15.0mm

Pinout

Pin Function Description
Digital 0–13 Digital I/O General-purpose digital input/output
A0–A5 Analog IN Analog input ports
3, 5, 6, 9, 10, 11 PWM PWM signal output
4, 5 Motor B Control Controls motor B
6, 7 Motor A Control Controls motor A
VCC Power Output Provides 5V output
GND Ground Ground connection
USB/5V Power Input USB power input (5V)
DC 7–12V Power Input External DC power input
ICSP Firmware Update Used for firmware updates

Applications

  • Robotics and intelligent vehicle projects
  • Motorized platforms and automation
  • Sensor interfacing and data acquisition systems
  • STEM education and prototyping
  • IoT and smart automation applications
