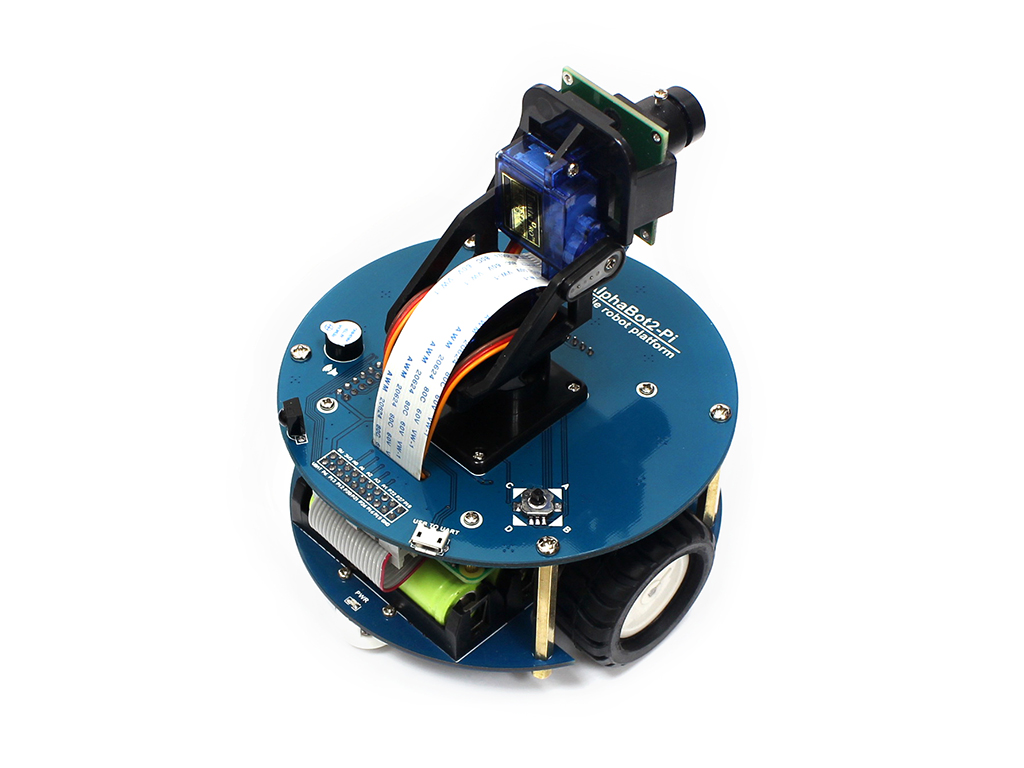

Robot AlphaBot2 Building Kit for Raspberry Pi 3B/3B+/4B (no Pi)

Robot AlphaBot2 Building Kit for Raspberry Pi 3B/3B+/4B (no Pi)

The AlphaBot2 Robot Kit is specifically designed for use with Raspberry Pi 3B/3B+/4B (not included). It features line tracking, obstacle avoidance, and remote control capabilities via Bluetooth, infrared, or WiFi. The kit also supports video monitoring and requires no soldering or complex wiring. Its modular two-layer structure allows for easy and quick assembly using open-source demo codes, enabling users to get started within minutes.

Package Includes

  • 1 x AlphaBot2-Pi (adapter board)
  • 1 x AlphaBot2-Base (base chassis)
  • 1 x RPi Camera (B)
  • 1 x TF Card 32GB
  • 1 x USB Micro-B to USB-C Adapter
  • 2 x SG90 servo
  • 1 x 2 DOF pan and tilt kit
  • 1 x IR remote controller
  • 1 x FC-20P cable 8cm
  • 1 x USB Type A to Micro B cable
  • 1 x 15PIN FFC 25cm
  • 1 x AlphaBot2-Pi screws set
  • 1 x TF Card Reader (Extra Free)
  • 1 x Screwdriver (Extra Free)

560.00 AED 560.00 AED Tax Included
560.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share



Features

  • Compatible with Raspberry Pi 3B/3B+/4B
  • Supports line tracking and obstacle avoidance
  • Remote control via Bluetooth/IR/WiFi
  • Supports real-time video monitoring
  • Modular structure for quick assembly
  • No soldering or complex wiring required
  • Comes with open-source demo code

AlphaBot2 Structure

AlphaBot2-Base (Lower Chassis)

AlphaBot2-Base

  • AlphaBot2 control interface
  • Ultrasonic module interface
  • Obstacle avoidance indicators
  • Omni-directional wheel
  • ST188 infrared sensor (obstacle avoidance)
  • ITR20001/T infrared sensor (line tracking)
  • Adjustable potentiometer for obstacle range
  • TB6612FNG dual H-bridge motor driver
  • LM393 voltage comparator
  • N20 micro gear motor (1:30 reduction, 6V/600RPM)
  • Rubber wheels (42mm diameter, 19mm width)
  • Power switch
  • 14500 battery holder
  • WS2812B RGB LEDs
  • Battery charging indicator
  • 5V USB battery charging port
  • Power indicator

AlphaBot2-Pi (Upper Controller Adapter Board)

AlphaBot2-Pi

  • AlphaBot2 control interface (connects to base)
  • Raspberry Pi interface
  • Servo interface
  • USB to UART communication
  • LM2596 5V regulator
  • TLC1543 10-bit ADC for analog sensors
  • PCA9685 servo controller
  • CP2102 USB to UART converter
  • Joystick for manual control
  • IR receiver for remote control
  • Buzzer for audio feedback

Component Overview

Component Description
AlphaBot2 control interface Connects to AlphaBot2-Base
Raspberry Pi interface Connects to Raspberry Pi 3B/3B+/4B
Servo interface Attach servos for movement
USB to UART UART-based Raspberry Pi control
LM2596 5V voltage regulator
TLC1543 10-bit ADC for analog sensors
PCA9685 Smooth servo control for pan/tilt
CP2102 USB to UART converter
Joystick Manual navigation and control
IR receiver Supports IR remote
Buzzer Provides audio feedback

Gallery

Image Description
AlphaBot2 Base Top AlphaBot2-Base Top View
AlphaBot2 Base Bottom AlphaBot2-Base Bottom View
AlphaBot2 Pi Front AlphaBot2-Pi Front View
AlphaBot2 Pi Back AlphaBot2-Pi Back View
AlphaBot2 Pi Side AlphaBot2-Pi Side View
AlphaBot2 Pi Disassembly AlphaBot2-Pi Disassembly View

Dimensions

AlphaBot2 Dimensions

Development Resources
