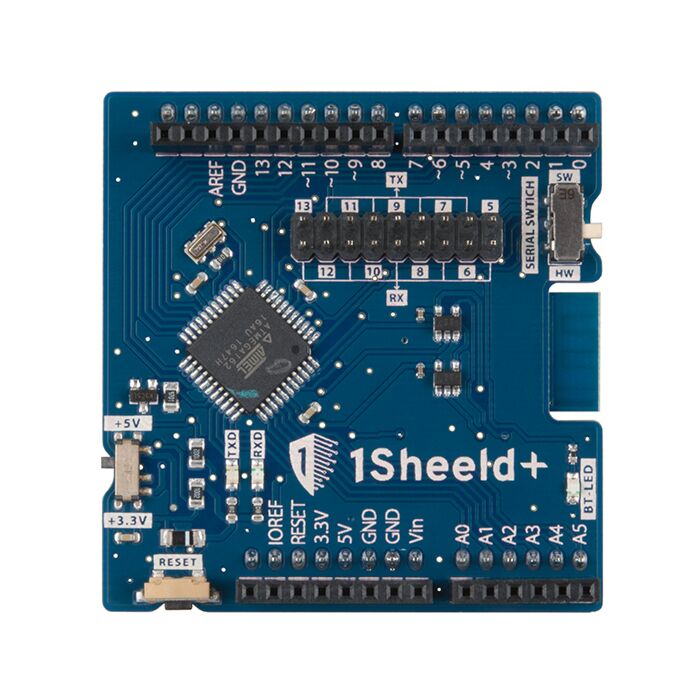

Arduino 1Sheeld+
The 1Sheeld+ is a versatile and innovative shield for Arduino that features a built-in Bluetooth Low Energy (BLE) module, enabling seamless connectivity between your Arduino and iOS or Android devices. Using the 1Sheeld app, available on the App Store or Google Play, you can transform your smartphone into a powerful multi-functional shield. With the 1Sheeld+, you can control your Arduino from your smartphone, interact with pins, and even leverage smartphone capabilities such as email, camera control, voice recognition, and social media notifications. Compatible with both 5V and 3.3V Arduino boards, the 1Sheeld+ simplifies complex projects by merging Arduino functionality with smartphone power.
Package Includes
- 1 x 1Sheeld+
Features
- Access over 40 Arduino shields directly from your iPhone or Android with a single board
- Compatible with iPhone 4S and later (iOS 9 and above) and Android devices (version 4.3 and above)
- Works with a variety of Arduino boards, including Uno, Mega, Due, and RedBoard
- It provides functionalities as sensor shields, input/output shields, communication shields, and social media shields
- Utilizes the standard HM-10 Bluetooth module (BLE 4.0)
Specifications
- Communication Protocol: Bluetooth Low Energy (BLE 4.0)
- Voltage Compatibility: Works with both 5V and 3.3V Arduino boards
- Supported Devices: iPhone 4S and above, Android 4.3 and above
- App Availability: Free on iOS and Android stores
Pinout
| Pin | Function |
|---|---|
| TX | Transmit data from 1Sheeld+ to Arduino |
| RX | Receive data from Arduino to 1Sheeld+ |
| VCC | Power input (5V or 3.3V) |
| GND | Ground |
How to Work With
- Set Up: Connect the 1Sheeld+ to your Arduino board. Ensure proper alignment with pins.
- Download App: Install the 1Sheeld app from the App Store or Google Play.
- Pair Devices: Power up the Arduino and use your smartphone to pair with the 1Sheeld+ via Bluetooth.
- Configure: Open the app and select the shield functionalities you want to enable.
- Upload Code: Use the 1Sheeld library in the Arduino IDE to write and upload your sketch.
- Interact: Control the Arduino from your smartphone or use the Arduino to interact with your phone's features.
Resources
- 1Sheeld Tutorials
- 1Sheeld App:
- Android
- iOS
Features
- Access over 40 Arduino shields directly from your iPhone or Android with a single board
- Compatible with iPhone 4S and later (iOS 9 and above) and Android devices (version 4.3 and above)
- Works with a variety of Arduino boards, including Uno, Mega, Due, and RedBoard
- It provides functionalities as sensor shields, input/output shields, communication shields, and social media shields
- Utilizes the standard HM-10 Bluetooth module (BLE 4.0)
Specifications
- Communication Protocol: Bluetooth Low Energy (BLE 4.0)
- Voltage Compatibility: Works with both 5V and 3.3V Arduino boards
- Supported Devices: iPhone 4S and above, Android 4.3 and above
- App Availability: Free on iOS and Android stores
Pinout
| Pin | Function |
|---|---|
| TX | Transmit data from 1Sheeld+ to Arduino |
| RX | Receive data from Arduino to 1Sheeld+ |
| VCC | Power input (5V or 3.3V) |
| GND | Ground |
How to Work With
- Set Up: Connect the 1Sheeld+ to your Arduino board. Ensure proper alignment with pins.
- Download App: Install the 1Sheeld app from the App Store or Google Play.
- Pair Devices: Power up the Arduino and use your smartphone to pair with the 1Sheeld+ via Bluetooth.
- Configure: Open the app and select the shield functionalities you want to enable.
- Upload Code: Use the 1Sheeld library in the Arduino IDE to write and upload your sketch.
- Interact: Control the Arduino from your smartphone or use the Arduino to interact with your phone's features.
Resources
- 1Sheeld Tutorials
- 1Sheeld App:
- Android
- iOS
