Features
- Auto-Voltage Detection: Automatically identifies whether the system operates at 12V or 24V.
- Battery Health Management: Optimizes battery life by preventing overcharging and deep discharging.
- Load Control: Provides reliable power output for connected devices with manual or automatic load control options.
- Compact Design: Lightweight and compact, making it easy to integrate into solar installations.
Specifications
- System Voltage: 12V / 24V (auto-detection)
- Maximum Current: 15A
- Input Voltage Range: 12V – 24V (dependent on system configuration)
- Output Power:
- 12V system: Up to 180W
- 24V system: Up to 360W
- Battery Types Supported: Lead-acid (sealed, gel, and flooded)
- Temperature Compensation: Yes
- Charging Technology: PWM (Pulse Width Modulation)
- Efficiency: Up to 98%
- Display and Indicators: LED indicators for charge status, battery condition, and load connection
- Operating Temperature: -20°C to +50°C
- Protection Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Reverse polarity protection
- Dimensions: Approximately 133 x 70 x 35 mm
- Weight: ~150g
Status Indications And Settings

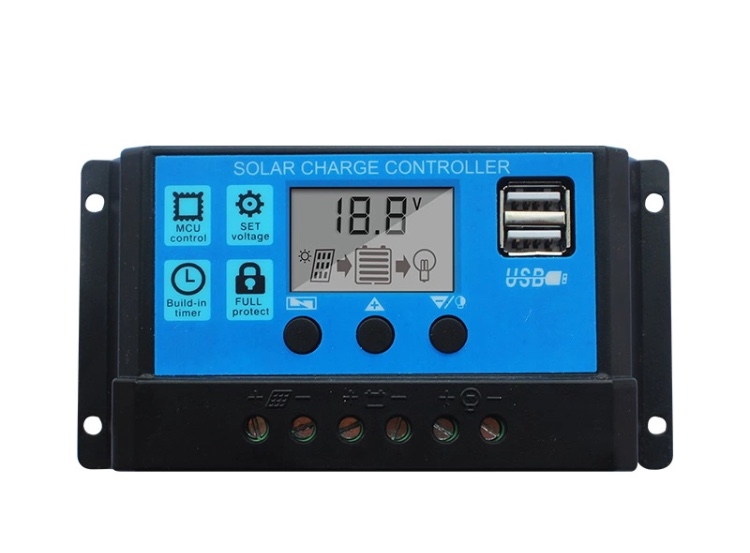

Pinout of the THC15A Solar Charge Controller
| Pin Label | Description |
|---|---|
| Solar Panel (+) | Positive input terminal for the solar panel. Connect the positive wire of the solar panel. |
| Solar Panel (-) | Negative input terminal for the solar panel. Connect the negative wire of the solar panel. |
| Battery (+) | Positive terminal for the battery. Connect the positive wire of the battery. |
| Battery (-) | Negative terminal for the battery. Connect the negative wire of the battery. |
| Load (+) | Positive terminal for the connected load (e.g., lights, appliances). |
| Load (-) | Negative terminal for the connected load. |
Connections with Solar Panel and Load
