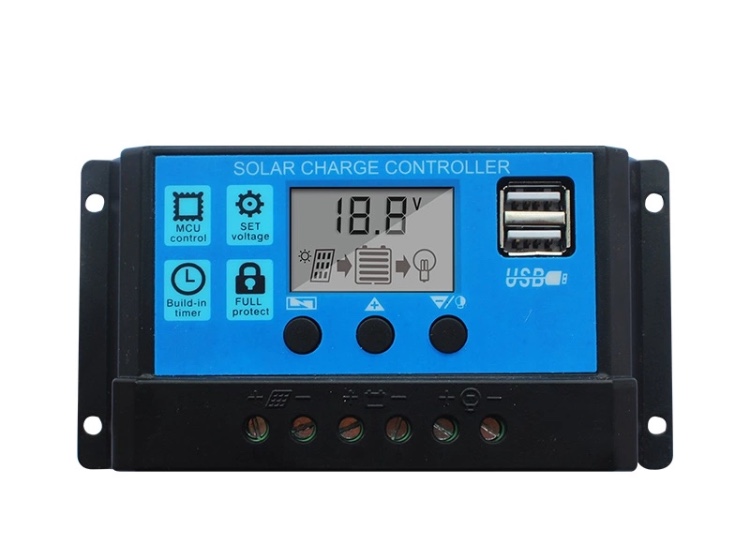

Solar Charger Controller THC15A
The THC15A Solar Charge Controller is a reliable device designed for efficient management of solar energy systems. It helps regulate the power flow between solar panels, batteries, and connected loads, ensuring optimal system performance and protection. Its compact size and PWM technology are ideal for small to medium off-grid solar systems such as lighting, surveillance equipment, and standalone renewable energy applications.
Package Includes
- 1 x THC15A Solar Charge Controller
Features
- Auto-Voltage Detection: Automatically identifies whether the system operates at 12V or 24V.
- Battery Health Management: Optimizes battery life by preventing overcharging and deep discharging.
- Load Control: Provides reliable power output for connected devices with manual or automatic load control options.
- Compact Design: Lightweight and compact, making it easy to integrate into solar installations.
Specifications
- System Voltage: 12V / 24V (auto-detection)
- Maximum Current: 15A
- Input Voltage Range: 12V – 24V (dependent on system configuration)
- Output Power:
- 12V system: Up to 180W
- 24V system: Up to 360W
- Battery Types Supported: Lead-acid (sealed, gel, and flooded)
- Temperature Compensation: Yes
- Charging Technology: PWM (Pulse Width Modulation)
- Efficiency: Up to 98%
- Display and Indicators: LED indicators for charge status, battery condition, and load connection
- Operating Temperature: -20°C to +50°C
- Protection Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Reverse polarity protection
- Dimensions: Approximately 133 x 70 x 35 mm
- Weight: ~150g
Status Indications And Settings
Pinout of the THC15A Solar Charge Controller
| Pin Label | Description |
|---|---|
| Solar Panel (+) | Positive input terminal for the solar panel. Connect the positive wire of the solar panel. |
| Solar Panel (-) | Negative input terminal for the solar panel. Connect the negative wire of the solar panel. |
| Battery (+) | Positive terminal for the battery. Connect the positive wire of the battery. |
| Battery (-) | Negative terminal for the battery. Connect the negative wire of the battery. |
| Load (+) | Positive terminal for the connected load (e.g., lights, appliances). |
| Load (-) | Negative terminal for the connected load. |
Connections with Solar Panel and Load
Features
- Auto-Voltage Detection: Automatically identifies whether the system operates at 12V or 24V.
- Battery Health Management: Optimizes battery life by preventing overcharging and deep discharging.
- Load Control: Provides reliable power output for connected devices with manual or automatic load control options.
- Compact Design: Lightweight and compact, making it easy to integrate into solar installations.
Specifications
- System Voltage: 12V / 24V (auto-detection)
- Maximum Current: 15A
- Input Voltage Range: 12V – 24V (dependent on system configuration)
- Output Power:
- 12V system: Up to 180W
- 24V system: Up to 360W
- Battery Types Supported: Lead-acid (sealed, gel, and flooded)
- Temperature Compensation: Yes
- Charging Technology: PWM (Pulse Width Modulation)
- Efficiency: Up to 98%
- Display and Indicators: LED indicators for charge status, battery condition, and load connection
- Operating Temperature: -20°C to +50°C
- Protection Features:
- Overcharge protection
- Over-discharge protection
- Short-circuit protection
- Reverse polarity protection
- Dimensions: Approximately 133 x 70 x 35 mm
- Weight: ~150g
Status Indications And Settings
Pinout of the THC15A Solar Charge Controller
| Pin Label | Description |
|---|---|
| Solar Panel (+) | Positive input terminal for the solar panel. Connect the positive wire of the solar panel. |
| Solar Panel (-) | Negative input terminal for the solar panel. Connect the negative wire of the solar panel. |
| Battery (+) | Positive terminal for the battery. Connect the positive wire of the battery. |
| Battery (-) | Negative terminal for the battery. Connect the negative wire of the battery. |
| Load (+) | Positive terminal for the connected load (e.g., lights, appliances). |
| Load (-) | Negative terminal for the connected load. |
Connections with Solar Panel and Load
