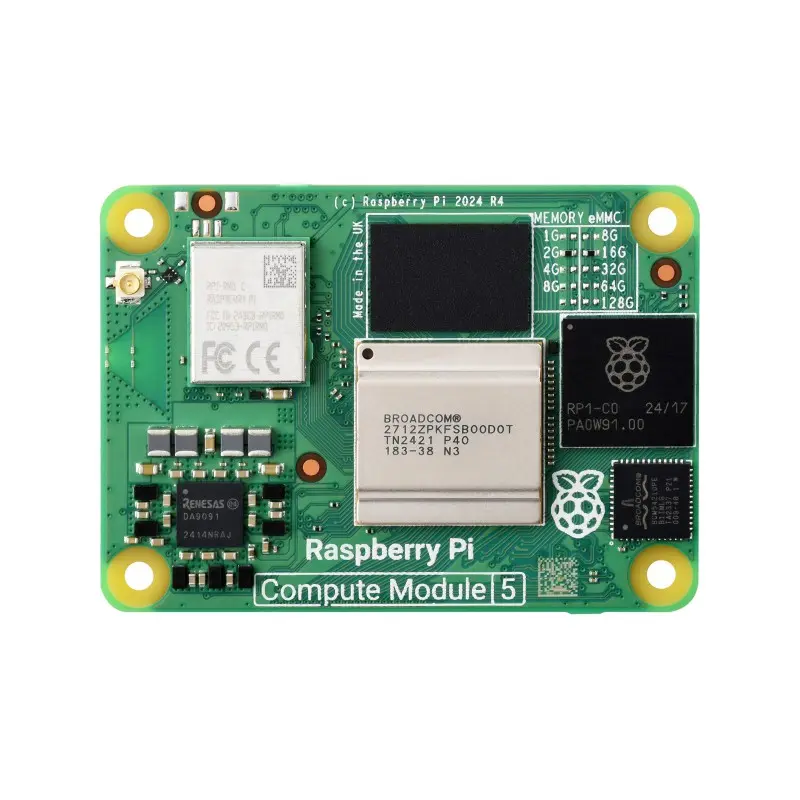

Raspberry Pi Compute Module 5 4GB Ram 32GB eMMC Flash (WaveShare)
Raspberry Pi Compute Module 5 is a system on module (SoM) that delivers the power of Raspberry Pi 5 in a compact form factor, integrates a quad-core Arm Cortex-A76 processor, providing a variety of RAM and eMMC flash options, supports power circuitry and a rich set of interfaces. Compute Module 5 enables you to leverage Raspberry Pi 5's powerful hardware and optimised software stack in your own custom systems and form factors.
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
- More options for RAM / 4GB
- More options for eMMC Flash 32GB
- Faster eMMC Flash storage, up to 200 Mbps data rate
- Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
- Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
- Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
Newly upgraded, more powerful
Specifications
| Processor | Broadcom BCM2712 quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz |
|---|---|
| Memory | 2GB, 4GB, 8GB or 16GB LPDDR4-4267 SDRAM (depending on variant) |
| Storage | 0GB (Lite), 8GB, 16GB, 32GB or 64GB eMMC Flash (depending on variant), up to 200 Mbps data rate |
| Connectivity | Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE, with onboard and external antenna options |
| Onboard Gigabit Ethernet PHY supporting IEEE1588 | |
| 1 × USB 2.0 interface | |
| 2 × USB 3.2 Gen1 interface | |
| 1 × PCIe Gen 2 x1 interface | |
| 28 GPIO signals | |
| SD card interface for SD card (for use only with Compute Module 5 variants without eMMC) | |
| Video | 2 × HDMI interface (up to 4Kp60 supported) |
| 2 × 4-lane MIPI interface | |
| Multimedia | 4Kp60 HEVC decoder |
| OpenGL ES 3.1 graphics, Vulkan 1.3 | |
| Input power | 5V DC |
| RTC | Built-in Real-time clock (RTC), powered from external battery |
| Operating voltage | -20°C ~ 85°C ambient |
| Dimensions | 55 × 40 × 4.7mm |
