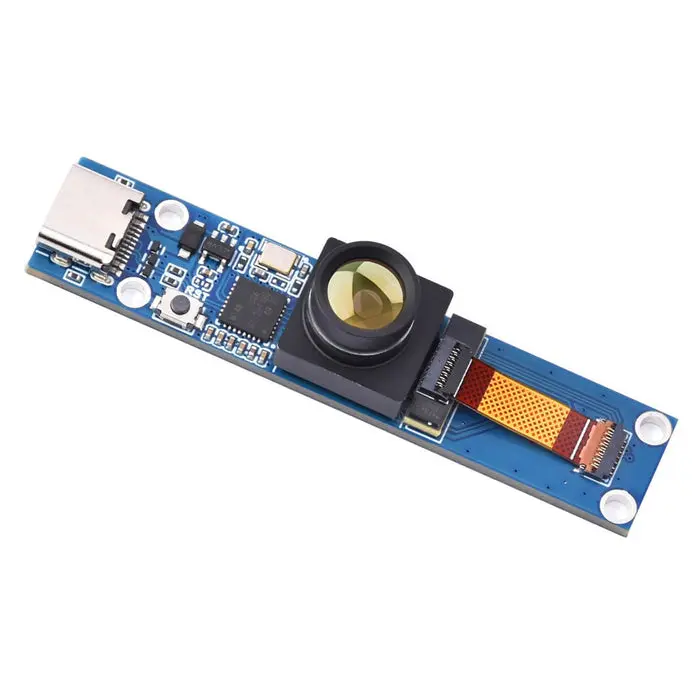

Camera Thermal IR Thermal Imaging Module For Raspberry Pi 80×62 (WaveShare)

Camera Thermal IR Thermal Imaging Module For Raspberry Pi 80×62 (WaveShare)

This camera module features a long-wave infrared design that has a hybrid technology combining a microbolometer and thermopile pixels. With an 80 x 62 pixel IR array and a 45° field of view, it detects the IR distribution of objects, calculates their surface temperatures, and generates detailed thermal images. Its shutterless design allows for continuous operation and a thermal imaging video stream, providing uninterrupted monitoring and diagnostics. With a USB-C connector, it makes for an easy way to connect to your >Raspberry Pi , Android, and PC to power it up.

Package Contents

  • 1x Thermal USB Camera
  • 1x Dual Type-C cable -1m

399.00 AED 399.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



The camera has impressive sensitivity with a Noise Equivalent Temperature Difference (NETD) of 150mK RMS at a 1Hz refresh rate and can deliver a thermal imaging video stream at up to 25 frames per second for clear results. It is ideal for a wide range of projects, from security surveillance to environmental monitoring.

It comes fully supported with online resources and manuals, including a Python demo for Raspberry Pi and compatibility with Android and Windows host computers, making it a versatile choice for anyone looking to add advanced thermal imaging to their projects.

Features

  • Adopts the hybrid technology of microbolometer and thermopile, 80 x 62 array pixels
  • Continuous operation and thermal imaging video stream due to shutterless design
  • Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
  • Up to 25FPS (Max) thermal imaging video stream output
  • Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)

Specifications

Power Supply 5V
Operating Current 61mA@5V
Wavelength Range 8~14μm
Operating Temperature -20~85℃
Target Temperature -20~400℃
Refresh Rate 25 FPS (Max)
FOV Basic version: 45°(H) x 45°(V)
Noise Equivalent

Temperature Difference		 150mK
Measuring Accuracy ±2℃ (ambient temp. 10~70℃)
Dimensions Thermal USB Camera / Thermal-90 USB Camera: 62.0 x 13.0mm
