Camera Thermal IR Thermal Imaging Module For Raspberry Pi 80×62 (WaveShare)
Thermal Camera HAT and Thermal USB Camera are long-wave IR thermal imaging camera modules with the 40PIN GPIO header and a USB interface respectively, with 80(H)×62(V) temperature measuring pixels. They support Raspberry Pi, PC, Android phones and other devices. They adopt the hybrid technology of microbolometer and thermopile pixels and can detect the IR radiation energy distribution of objects in view of the camera, turn the data into the surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.
Features
- Adopts the hybrid technology of microbolometer and thermopile, 80(H)×62(V) array pixels.
- Continuous operation and thermal imaging video stream due to shutterless design.
- Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate, with good noise performance.
- Up to 25FPS (Max) frame rate thermal imaging video stream output.
- Comes with online resources and manuals. (Python demo for Raspberry Pi, Android/Windows host device and user manual, etc.)
Specifications
- Power Supply: 5V
- Operating Current: 61mA@5V
- Wavelength Range: 8~14μm
- Operation Temperature: -20~85℃
- Target Temperature: -20~400℃
- Refresh Rate: 25 FPS (Max)
- FOV: 45°(H) × 45°(V) [Horizontal Angle x Vertical Angle]
- Measure Accuracy: ±2℃
- Dimensions:
- Thermal Camera HAT: 65.0mm × 30.5mm
- Thermal USB Camera: 62.0mm × 13.0mm
- Noise Equivalent Temperature Difference: 150mK
Hardware Description
- Thermal Camera HAT connects to Raspberry Pi series 40 GPIO Pin.
- Thermal Camera HAT uses I2C to configure camera registers and SPI to send temperature data.
- Thermal Camera HAT has a RESET button on the board, which can be pressed for hardware reset in case of an exception.

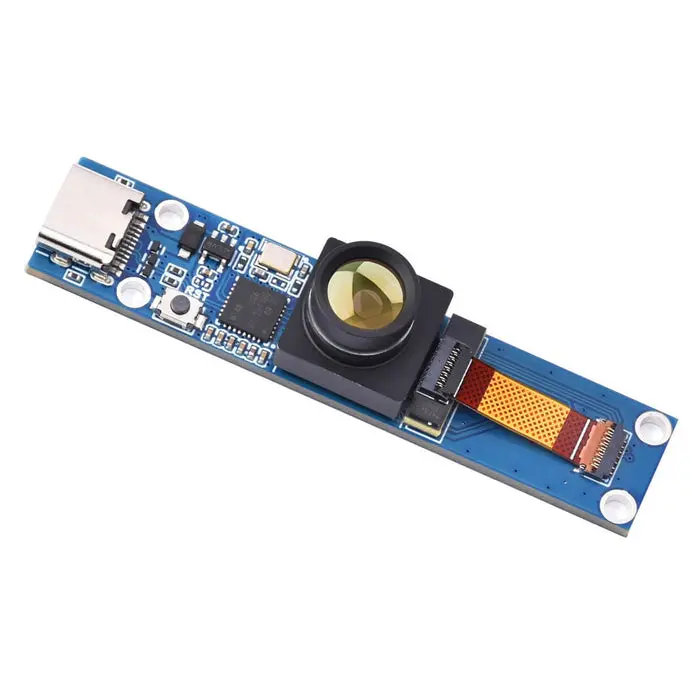

- Thermal USB Camera connects to a Windows PC or Android phone and uses the USB interface to send temperature data.
- Thermal USB Camera board has a RESET button that can be pressed for hardware reset in the event of an exception.
Hardware Connection
- Thermal Camera HAT Connects to Raspberry Pi:
- When you need to stack additional HAT modules on the Raspberry Pi 4B, you can use a 40-pin GPIO header to connect the Raspberry Pi and the HAT module.
- If you want to extend the camera's connection with a 100mm ribbon cable, you can use it to increase the camera's flexibility and adjust its viewing angle.
- Thermal USB Camera connects to Windows computers and Android phones.
- Thermal USB Camera accessories have Type-C dual male cables that can be connected to the PC and Android phone, if you need to use a Type-C to Type-A male port, please purchase separately.
