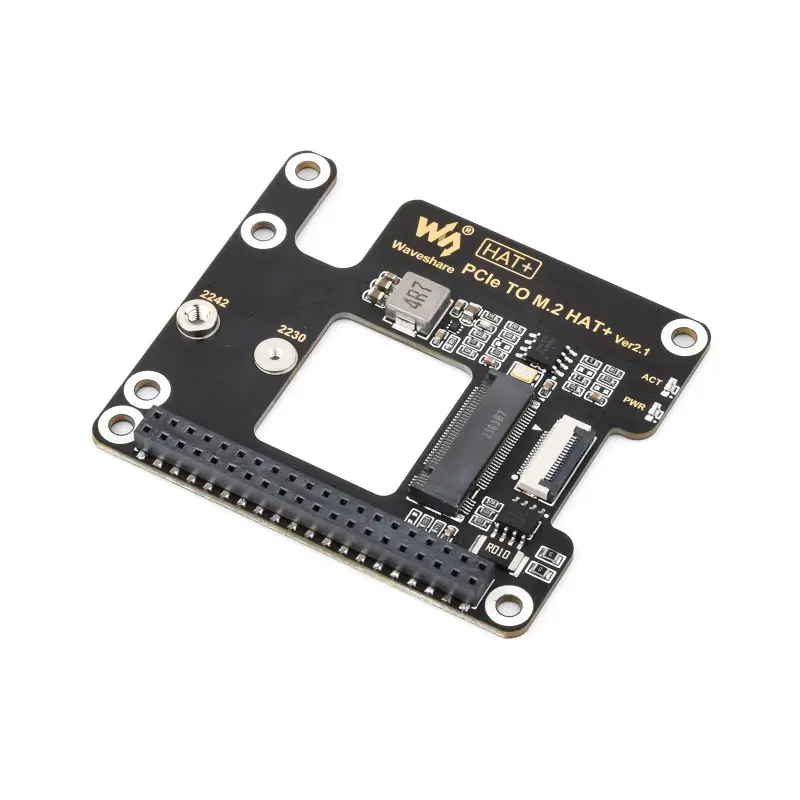

Features
- Support NVMe protocol and M.2 solid state drive protocol, high-speed read/write, with high work efficiency.
- PCI-E×1 Gen2 or Gen3 mode.
- Only supports PI5B.
- Compatible with M.2 solid state drive of 2230/2242 sizes.
- Onboard working indicator lights, with PWR on continuously when powered, and ACT blinking during read/write, making the operating status clear at a glance.
- HAT+ design, with on-board EEPROM chip.
- Onboard power monitoring chip, for real-time monitoring of the working status of the solid state drive.
- Reserved airflow vent for PI5 fans, increasing airflow, and reducing solid-state temperatures.
Note
- Raspberry PI does not support NVME startup by default. Therefore, you need to modify the boot.
Hardware Description
Assembly Video
- Assembly and usage tutorial:
Hardware Connection
Pay attention to the direction of the cable and connect it as shown in the figure:
