Solar Power Manager Module (D) Supports 6V~24V Type-C 5V/3A (WaveShare)

Solar Power Manager Module (D) Supports 6V~24V Type-C 5V/3A (WaveShare)

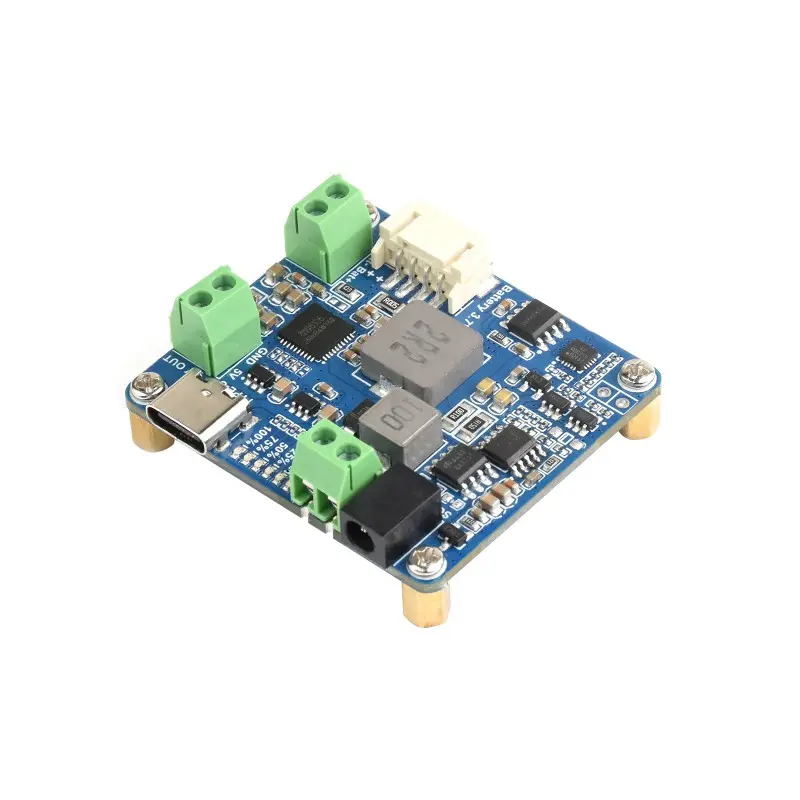

This solar power management module is designed for 6V~24V solar panels. It can charge the 3.7V rechargeable Li battery through a solar panel or Type-C connector and provides 5V/3A regulated output (supports multiple protocols such as PD/QC/FCP/PE/SFCP). The module features MPPT (Maximum Power Point Tracking) function and multi-protection circuits, therefore, it can keep working with high efficiency, stability, and safety. It is suited for solar-powered, low-power IoT, and other environmental protection projects.
140.00 AED 140.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel.
  • Supports solar panel/ Type-C power adapter for battery charging.
  • For a 6V~24V solar panel, supports self-adaptive input voltage via DC-002 jack or screw terminal.
  • Multi-LED indicators, for monitoring the status of solar panels and batteries.
  • Multi-protection circuits: overcharge / over-discharge / reverse protection/ overheat/overcurrent, stable and safe to use.

Parameters

PRODUCT SOLAR POWER MANAGER SOLAR POWER MANAGER (B) SOLAR POWER MANAGER (C) SOLAR POWER MANAGER (D)
(SOLAR IN) 6V ~ 24V (6V by default) 6V ~ 24V (18V by default) 6V ~ 24V
RECHARGING Solar panel, power adapter, USB
BATTERY 3.7V 850mAh
14500 Li-ion battery (NOT included)		 3.7V 10000mAh
Li-po battery		 3x 18650 Li-ion battery 7800mAh (NOT included) 3.7V Li-ion battery (NOT included)
USB INPUT 5V (Micro USB) 5V (TYPE-C, with PD quick charge support)
5V OUTPUT 5V / 1A (USB OUT, pin header)
3.3V / 1A (pin header)		 5V / 3A (USB-OUT, TYPE-C) 5V / 3A (Screw terminal, TYPE-C)
RECHARGING CUTOFF VOLTAGE 4.2V ± 1％
OVER DISCHARGING PROTECTION VOLTAGE 2.9V ± 1％ 3.0V ± 1％
SOLAR PANEL RECHARGING EFFICIENCY Approx. 78%
USB RECHARGING EFFICIENCY Approx. 82% Approx. 93%
BATTERIES BOOST OUTPUT EFFICIENCY Approx. 86% Approx. 90%
QUIESCENT CURRENT (MAX) <2mA <80mA <30mA
CASE N/A Metal case N/A
OPERATING TEMPERATURE -40℃ ~ 85℃
DIMENSIONS (mm) 65.2 × 56.2 × 22.9 108.0 × 71.0 × 25.2 119.0 × 71.0 × 25.2 45.0 x 40.0 x 16.1

Onboard Interface

Solar Power Manager (D) 03.png

Power Indicator Description

Battery level LED1 LED2 LED3 LED4
75~100% On On On On
50~75% On On On Off
25~50% On On Off Off
5~25% On Off Off Off
0% Off Off Off Off
Unable to output normally* Off Off Off On
*: When the battery level is low, 5V short circuit/overload will stop output, and only the light of 100 is blinking.
