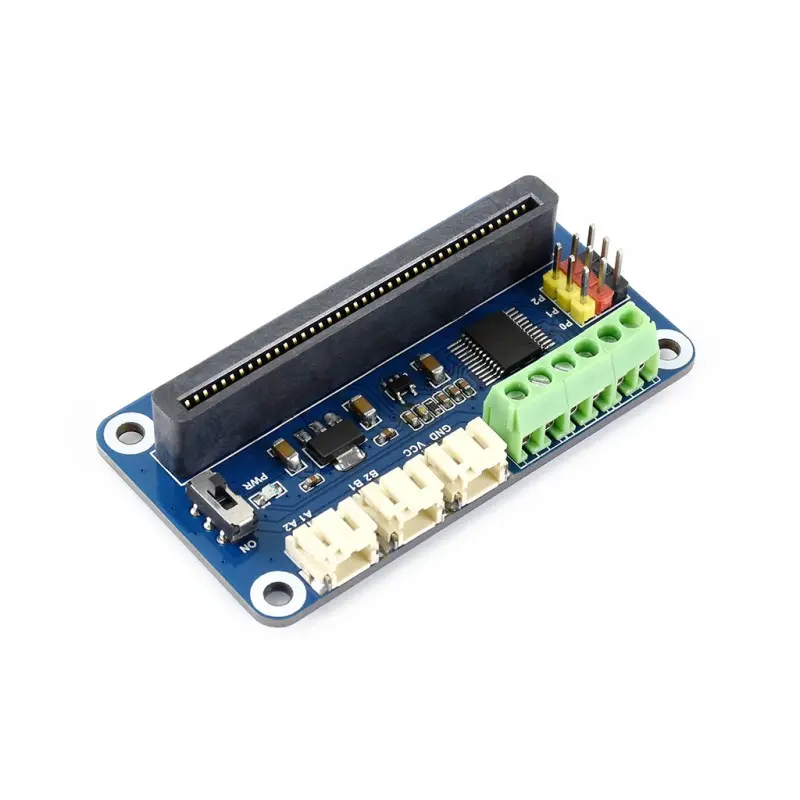

Motor Driver for micro:bit Drive Board (WaveShare)
This driver board gives your micro: bit the ability to drive two-channel DC motors and three-channel servos. It's an ideal choice for you to DIY mobile robots.
Package Includes:
- 1 x Motor Driver for micro:bit
- Note: micro:bit in the photos is NOT included.
Features
- micro:bit edge connector, directly pluggable
- 2x DC motor interfaces, 3x servo interfaces
- Integrates a 5V regulator, up to 3A output current, and can be powered from battery through VIN terminal
- Onboard multi-connector options for DC motors in different specifications,and onboard standard servo headers
- Comes with development resources and manual (micro:bit graphical examples)
Specifications
- Power supply: 6V~12V (VIN terminal)
- Servo voltage: 5V
- Logic voltage: 3.3V
- Driver: TB6612FNG
- Dimension: 65mm x 36mm
- Mounting hole size: 3.0mm
Dimensions
Resources
Wiki : www.waveshare.com/wiki/Motor_Driver_for_micro:bit
