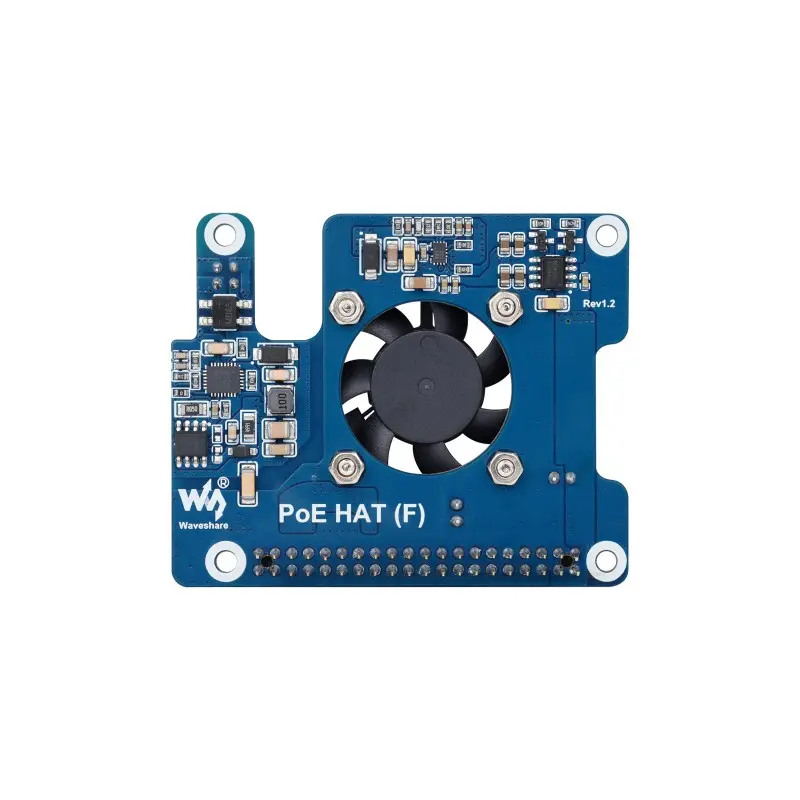

Raspberry Pi 5 Power Over Ethernet (PoE) F HAT (WaveShare)

Raspberry Pi 5 Power Over Ethernet (PoE) F HAT (WaveShare)

The PoE HAT (F) is an 802.3af/at-compliant Power Over Ethernet(POE+) expansion board for the Raspberry Pi 5. Suitable for use with a PoE router or switch that supports the IEEE 802.3af/at networking standard, the Raspberry PI can be networked and powered with only one network cable.

Package Includes:

  1. PoE HAT (F) x1
  2. Metal heatsink x1
  3. Thermal tape (3PCS) x1

210.00 AED 210.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Features

  • Based on Raspberry Pi 40PIN GPIO interface, supports Raspberry Pi 5 (not suitable for PI4B and PI3B).
  • PoE/PoE+ (Power Over Ethernet) capability, IEEE 802.3af/at-compliant.
  • Fully isolated switched-mode power supply (SMPS).
  • Onboard high-speed active cooling fan, with metal heatsink, better heat dissipation.

Parameters

  • POE input voltage: 37V-57V DC input
  • POE - GPIO header: 5V 4.5A (MAX)
  • POE - 2P header: 12V 2A (MAX)
  • Network standard: Support IEEE 802.3af/at PoE/PoE+
  • Dimensions: 56.5 × 70.0mm

Work with Raspberry Pi

Connect the PoE_HAT(F) to the Raspberry Pi 5 as shown below:
PoE HAT (F) RPI-1.jpg

Outline dimensions
