Specifications
| Rated power | 1W (5V, 0.2±0.02A) |
|---|---|
| Rated speed | 5000±10%RPM |
| General | Low-profile, PWM speed adjustment |
| Interface | 4-wire PWM speed-adjustable fan header |
| Cable length | 90±10mm |
| Dimensions | 54×39×13mm |

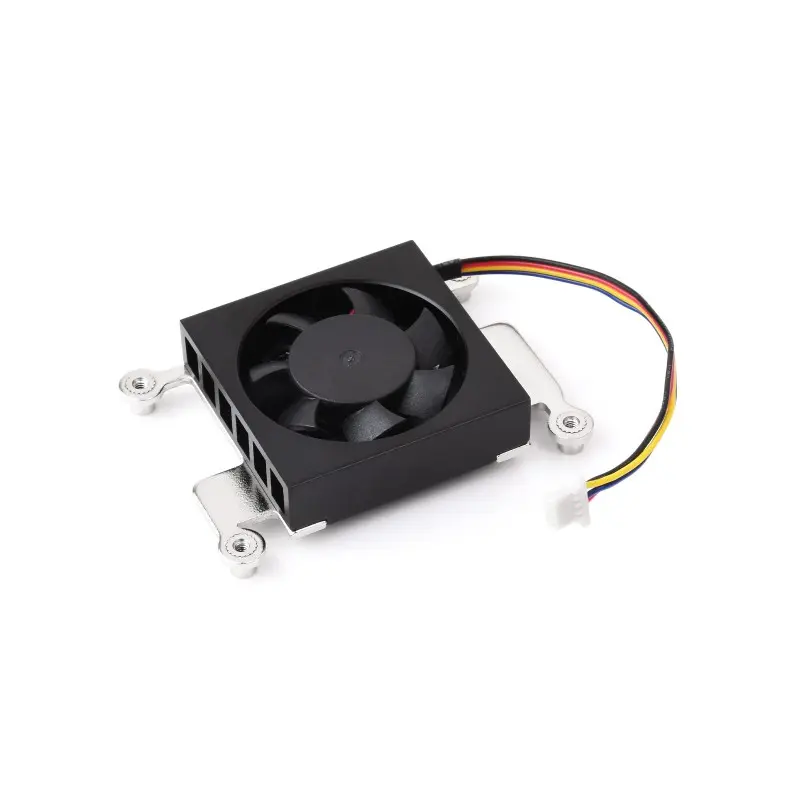

tailored for Raspberry Pi CM5
matching with the CM5 on size and mounting holes, fast heat dissipation
proper space for antenna section
no hindrance to the antenna
using with base board
Compute Module 5 IO Board
Compute Module 5 PoE Board
for reference only, Compute module 5, Compute Module 5 IO Board and Compute Module 5 PoE Board are NOT included.
comparing CM5 Cooling Solutions
Outline dimensions
How to install
1. Attach thermal tapes onto the CM5
2. Fix the screws as the pictures show
