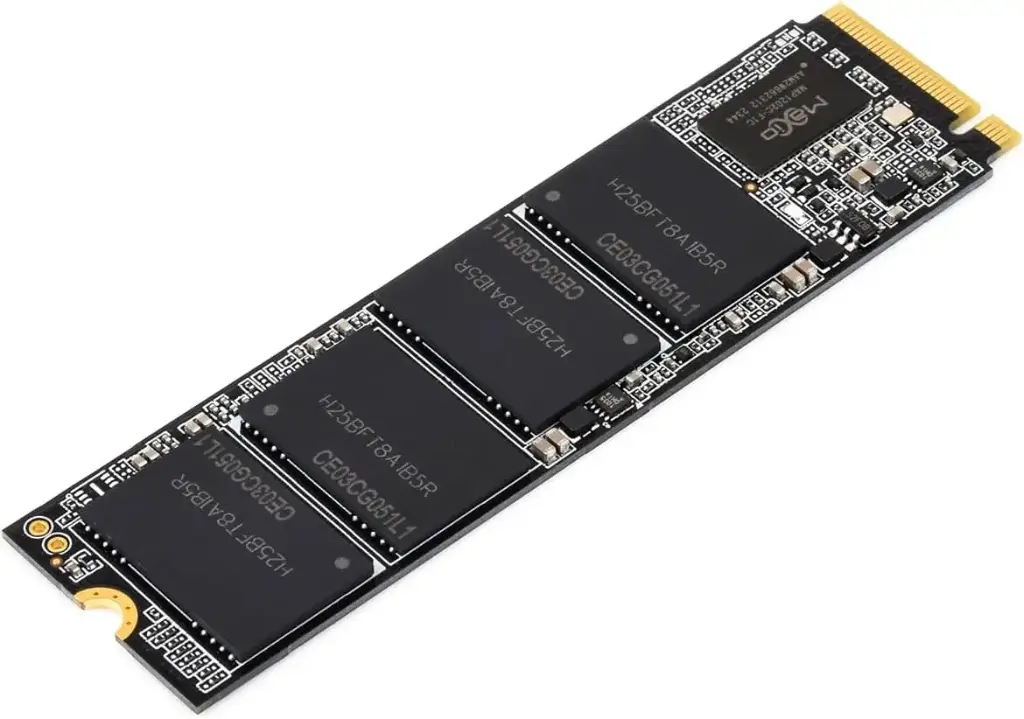

NX M2 NVME 2280 256GB Solid State Drive, High-Quality 3D TLC Flash Memory, High-Speed Reading/Writing (WaveShare)

NX M2 NVME 2280 256GB Solid State Drive, High-Quality 3D TLC Flash Memory, High-Speed Reading/Writing (WaveShare)

NX M2 NVME 2280 256GB High-speed Solid State Drive, High-quality 3D TLC Flash Memory, High-speed Reading/Writing, More Reliable & Durable NX M2 NVME Solid State Drive
246.00 AED 246.00 AED Tax Included
246.00 AED Tax Included

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share


Application Examples
NX-NVME 2280 M.2 Solid State Drive connecting with Compute Module 5 IO Board

Connecting with Compute Module 5 IO Board

NX-NVME 2280 M.2 Solid State Drive connecting with CM5-PoE-BASE-A

Connecting with CM5-PoE-BASE-A

NX-NVME 2280 M.2 Solid State Drive connecting with JETSON-ORIN-IO-BASE

Connecting with JETSON-ORIN-IO-BASE

NX-NVME 2280 M.2 Solid State Drive connecting with PCIe TO 2-CH M.2 HAT+ (B)

Connecting with PCIe TO 2-CH M.2 HAT+ (B)

NVMe Protocol M.2 Interface, High-speed Reading/Writing


Features at a glance
  • PCIe Gen3 x4 interface
  • Supports NVMe 1.3 protocol and is backward compatible with the NVMe 1.1 protocol
  • Supports static and dynamic wear leveling algorithms
  • Supports HMB and full-speed command queue functionality
  • Supports garbage collection, error checking and correction, and reserved space mechanisms
  • Supports power management and intelligent management technologies
  • Supports TRIM commands
Version Options
NX-NVME 2280 256G SSD-M.2

NX-NVME 2280 256G SSD-M.2
256GB Version


4-ch PCIe GEN3.0 Interface

Supports NVMe 1.3 protocol, improving the system boot time, startup and loading speed of the applications

NX-NVME 2280 M.2 Solid State Drive, with PCIe GEN3.0 x4 Interface
3D TLC High-quality Flash Memory

offers faster IO transfer speed with high density to further release more reading and writing performance, and providing better reliability and durability

NX-NVME 2280 M.2 Solid State Drive, with 3D TLC Flash Memory

Specifications
ModelNX-NVME 2280 256G SSD-M.2
brand KingSpec
Interface M.2 NVMe PCIe 3.0
Dimensions 80.0 × 22.0 × 2.1 (mm)
NAND Flash Memory 3D TLC Flash
capacity 256G
Sequential Read 2400MB ~ 3200MB/s
Sequential Write 1000MB ~ 1600MB/s
TBW 250TB
NAND Flash 3D TLC Flash
Operating Temperature 0°C - 70°C
Device support Laptops / PCs / All-in-one hosts, etc.
Certificate CE, RoHS, FCC, REACH
System support Windows, Raspberry Pi OS, CentOS, Ubuntu, Linux
