Motor Driver TMC2226 V1.0 For Stepper Motor

Motor Driver TMC2226 V1.0 For Stepper Motor

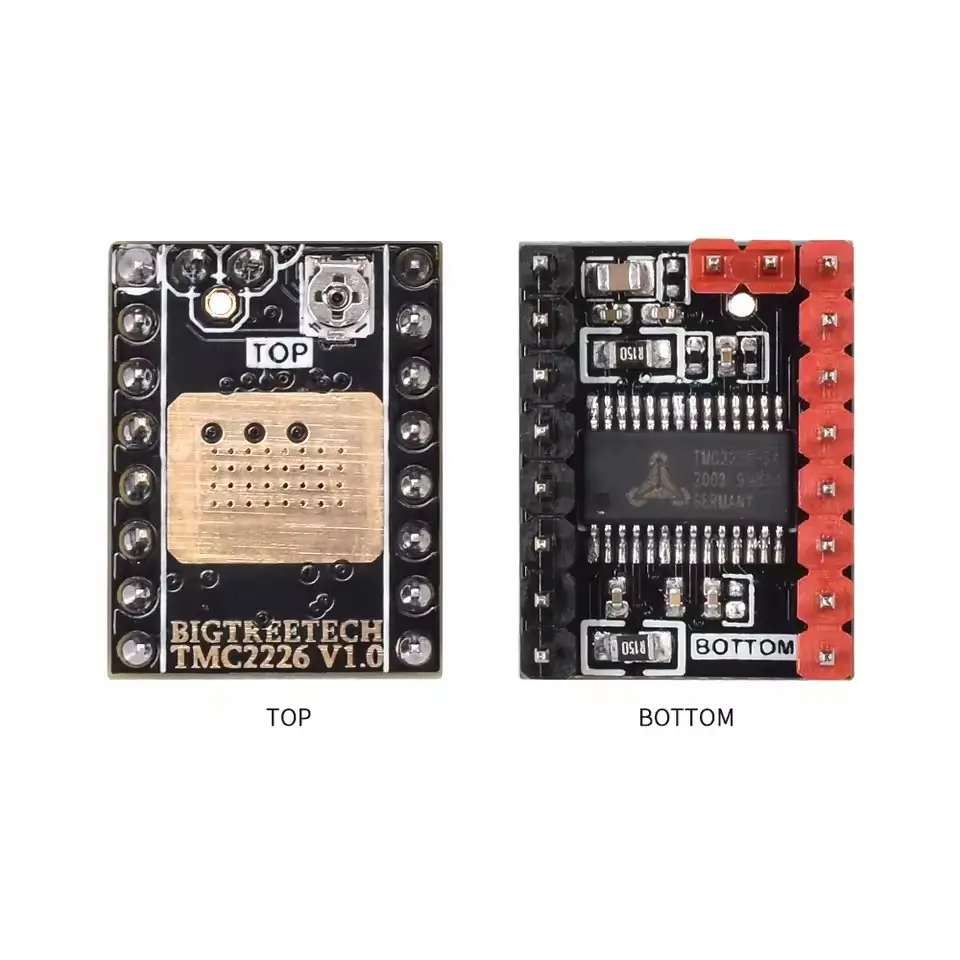

The TMC2226 Stepper Motor Driver Module is a high-performance silent motor driver based on the Trinamic TMC2226 integrated circuit. Designed for 3D printers, CNC machines, robotics, and motion control systems, it delivers smooth, precise, and ultra-quiet operation while supporting high supply voltages and advanced motor control technologies. The driver supports StealthChop2 for virtually silent operation, SpreadCycle for high-speed and high-torque applications, CoolStep for automatic current optimization, and StallGuard4 for sensorless stall detection. Compatible with standard STEP/DIR interfaces, the module can easily replace traditional stepper drivers on most popular 3D printer controller boards.

Package Includes

  • 1 × TMC2226 Stepper Motor Driver Module
  • 1 × Aluminum Heatsink
48.00 AED 48.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Powered by the Trinamic TMC2226 stepper motor driver IC.
  • Ultra-quiet motor operation using StealthChop2 technology.
  • SpreadCycle mode for higher speed and improved torque.
  • CoolStep technology automatically optimizes motor current.
  • StallGuard4 sensorless stall detection.
  • Supports microstepping up to 1/256.
  • Compatible with standard STEP/DIR control signals.
  • Supports higher motor supply voltages for increased performance.
  • Built-in protection against overheating, overload, and short circuits.
  • Includes heatsink for improved thermal performance.
  • Compatible with most popular 3D printer controller boards.
  • Compact form factor for easy installation.



Specifications

Product Type Silent Stepper Motor Driver Module
Driver IC Trinamic TMC2226
Motor Supply Voltage 4.75V – 29V DC
Maximum RMS Output Current 2.0A
Peak Output Current 2.8A
Control Interface STEP / DIR
Microstepping Up to 1/256
Operating Modes StealthChop2, SpreadCycle, CoolStep, StallGuard4
Protection Features Overload, Overheating, Short Circuit Protection
Cooling Aluminum Heatsink Included
Dimensions 20.3 × 15.2 mm

Pinout:

Applications

  • 3D printers
  • CNC machines
  • Laser engravers
  • Robotics
  • Motion control systems
  • Automated manufacturing equipment
  • DIY electronics projects
  • Industrial automation
  • Camera sliders and positioning systems
  • Embedded motor control applications

Wiring:
