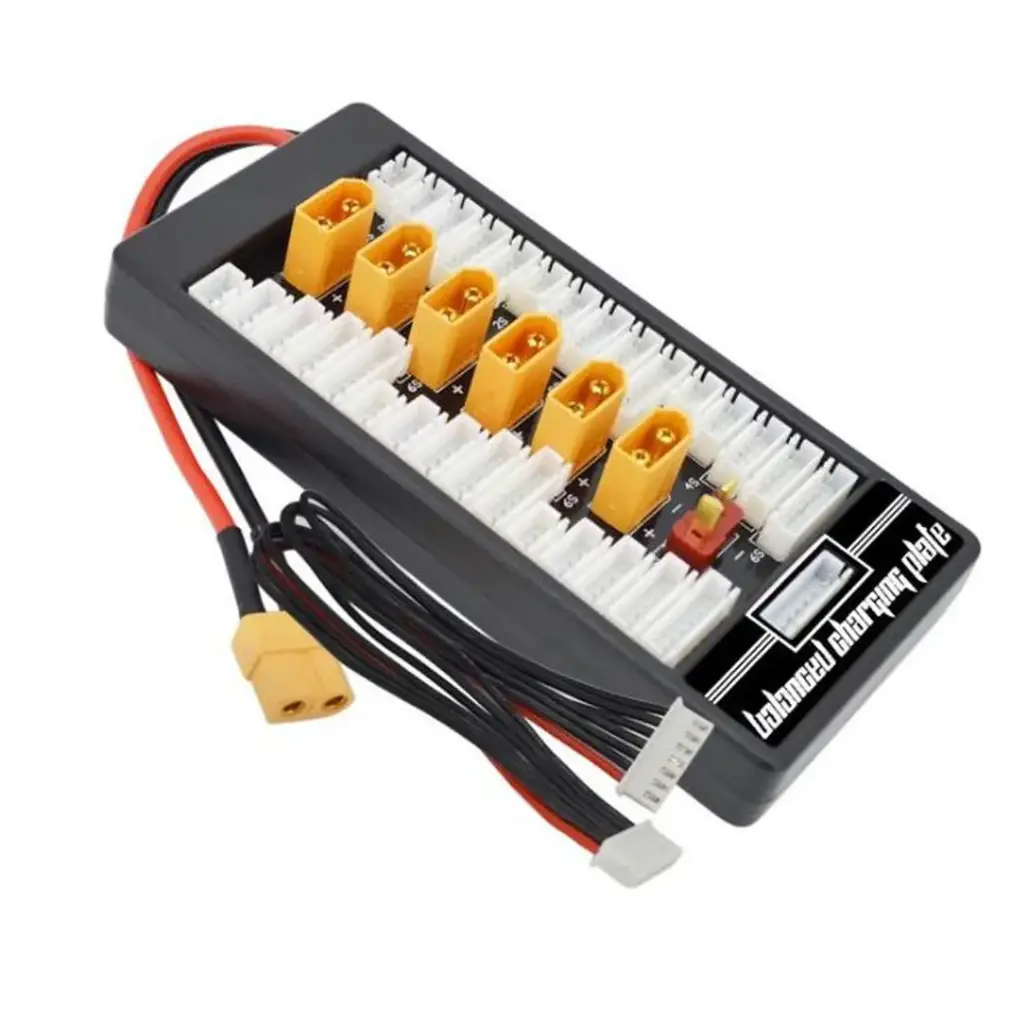

Battery Parallel Charge Board with C-XT60 Interface to XT60

Battery Parallel Charge Board with C-XT60 Interface to XT60

The XT60 Parallel Battery Charging Board is designed for safely charging multiple lithium battery packs simultaneously using a single balance charger. Compatible with XT60-equipped LiPo, Li-ion, and LiFe battery packs, this board allows up to six batteries with the same cell count and voltage to be connected in parallel, significantly reducing charging time while maintaining balanced charging performance. Built using high-current copper traces, premium AMASS XT60 connectors, and high-quality silicone wiring, the charging board provides reliable current handling and improved safety. It is compatible with most popular balance chargers, including the IMAX B6, IMAX B8, and UN-A6, making it an excellent accessory for RC hobbyists, drone pilots, robotics enthusiasts, and battery maintenance applications.

Package Includes

  • 1 × XT60 Parallel Battery Charging Board


59.00 AED 59.00 AED (Tax included)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days



Features

  • Charge up to six lithium battery packs simultaneously.
  • Compatible with LiPo, Li-ion, and LiFe batteries.
  • Supports battery packs from 2S to 6S.
  • Designed for XT60 battery connectors.
  • Compatible with most balance chargers.
  • Premium AMASS XT60 connectors for reliable electrical contact.
  • Heavy-duty copper PCB traces support high charging currents.
  • 14 AWG high-temperature silicone input cable.
  • 20 AWG silicone balance cables for reliable balancing.
  • Protective silicone caps improve connection safety.
  • Reduces total charging time by charging multiple batteries in parallel.
  • Improves voltage balancing and shortens final balance charging time.
  • Supports cascading up to three charging boards for charging up to 18 battery packs simultaneously.

Specifications

Product Type Parallel Battery Charging Board
Battery Connector XT60
Supported Battery Types LiPo, Li-ion, LiFe
Supported Cell Count 2S – 6S
Maximum Parallel Batteries 6 Packs
Expandable Capacity Up to 18 Battery Packs using 3 Parallel Boards
Main Input Wire 14 AWG High-Temperature Silicone Wire
Balance Cable 20 AWG Multi-Strand Silicone Wire
Connector Brand AMASS XT60
Compatible Chargers IMAX B6, IMAX B8, UN-A6 and other balance chargers
PCB Construction Heavy Copper High-Current PCB

Applications

  • RC aircraft battery charging
  • Drone battery charging
  • FPV racing batteries
  • RC car and boat batteries
  • Robotics battery maintenance
  • Battery testing laboratories
  • DIY lithium battery charging
  • Model hobby charging stations
  • Educational electronics laboratories
  • Battery maintenance workshops
